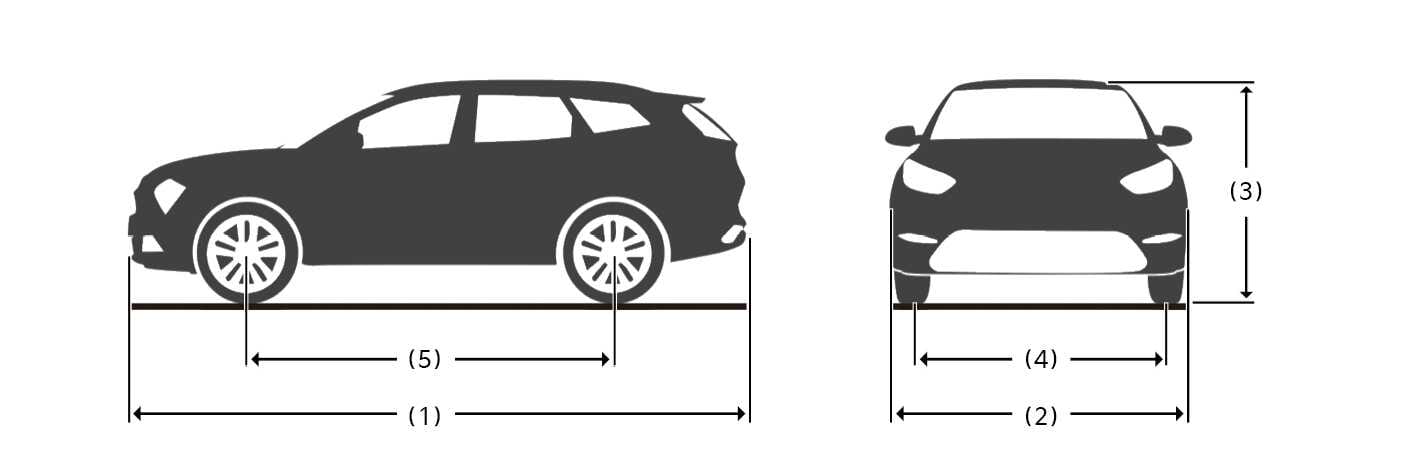

Dimensions

For Smartstream G1.6 T-GDi, Smartstream G2.0
|
Item |
inches (mm) |
||||
|---|---|---|---|---|---|
|
(1) |
Overall length |
174.4 (4,430) |
|||
|
(2) |
Overall width |
72.0 (1,830) |
|||
|
(3) |
Overall height |
205/65 R16 |
Without roof rack |
2WD |
63.0 (1,600) |
|
4WD |
64.2 (1,630) |
||||
|
With roof rack |
2WD |
63.2 (1,605) |
|||
|
4WD |
64.4 (1,635) |
||||
|
215/55 R18 |
Without roof rack |
2WD |
63.4 (1,610) |
||
|
4WD |
64.6 (1,640) |
||||
|
With roof rack |
2WD |
63.6 (1,615) |
|||
|
4WD |
64.8 (1,645) |
||||
|
235/45 R19 |
Without roof rack |
2WD |
63.6 (1,615) |
||
|
4WD |
64.8 (1,645) |
||||
|
With roof rack |
2WD |
63.8 (1,620) |
|||
|
4WD |
65.0 (1,650) |
||||
|
(4) |
Tread |
Front |
205/65 R16 |
63.1 (1,602) |
|
|
215/55 R18 |
62.6 (1,591) |
||||
|
235/45 R19 |
62.6 (1,589) |
||||
|
Rear |
205/65 R16 |
2WD |
63.4 (1,611) |
||
|
4WD |
63.6 (1,615) |
||||
|
215/55 R18 |
2WD |
63.0 (1,600) |
|||
|
4WD |
63.1 (1,604) |
||||
|
235/45 R19 |
2WD |
62.9 (1,598) |
|||
|
4WD |
63.1 (1,602) |
||||
|
(5) |
Wheelbase |
105.9 (2,690) |
|||
For Smartstream G1.6 GDi HEV
|
Item |
inches (mm) |
||||
|---|---|---|---|---|---|
|
(1) |
Overall length |
174.4 (4,430) |
|||
|
(2) |
Overall width |
72.0 (1,830) |
|||
|
(3) |
Overall height |
205/65 R16 |
Without roof rack |
2WD |
63.0 (1,600) |
|
4WD |
63.8 (1,620) |
||||
|
With roof rack |
2WD |
63.2 (1,605) |
|||
|
4WD |
64.0 (1,625) |
||||
|
215/55 R18 |
Without roof rack |
2WD |
63.4 (1,610) |
||
|
4WD |
64.2 (1,630) |
||||
|
With roof rack |
2WD |
63.6 (1,615) |
|||
|
4WD |
64.4 (1,635) |
||||
|
235/45 R19 |
Without roof rack |
2WD |
63.6 (1,615) |
||
|
4WD |
64.4 (1,635) |
||||
|
With roof rack |
2WD |
63.8 (1,620) |
|||
|
4WD |
64.6 (1,640) |
||||
|
(4) |
Tread |
Front |
205/65 R16 |
2WD |
63.1 (1,604) |
|
4WD |
63.1 (1,602) |
||||
|
215/55 R18 |
2WD |
62.6 (1,591) |
|||
|
4WD |
62.7 (1,592) |
||||
|
235/45 R19 |
2WD |
62.6 (1,589) |
|||
|
4WD |
62.6 (1,590) |
||||
|
Rear |
205/65 R16 |
2WD |
63.4 (1,611) |
||
|
4WD |
63.7 (1,619) |
||||
|
215/55 R18 |
2WD |
63.0 (1,600) |
|||
|
4WD |
63.3 (1,607) |
||||
|
235/45 R19 |
2WD |
62.9 (1,598) |
|||
|
4WD |
63.2 (1,606) |
||||
|
(5) |
Wheelbase |
105.9 (2,690) |
|||
