Light bulb position (Rear)

Figure 1. Type A
N_SP327_C11_003_A

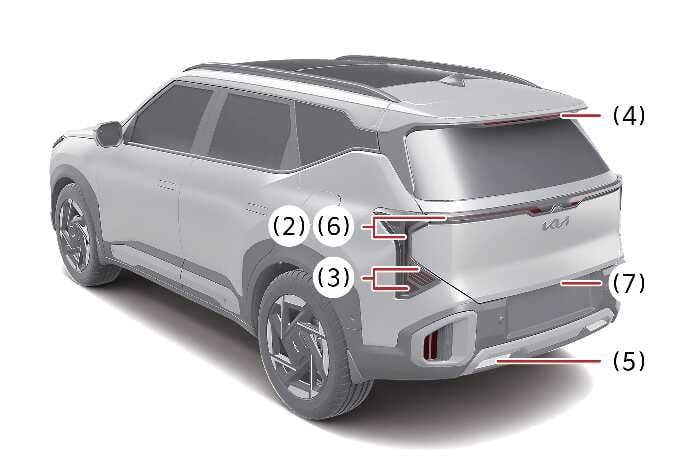

Figure 2. Type B
N_SP327_C11_004_A

  1. Rear turn signal lamp/ Tail lamp/ Stop lamp (Bulb type)

  2. Tail lamp/ Stop lamp (LED type)

  3. Rear turn signal lamp (LED type)

  4. High mounted stop lamp (LED type)

  5. Back up lamp (Bulb type/ LED type)

  6. Rear side marker (Bulb type/ LED type)

  7. License plate lamp (LED type)
