Front-view

OMQ4A055117
N_SP3i26_B10_012_E

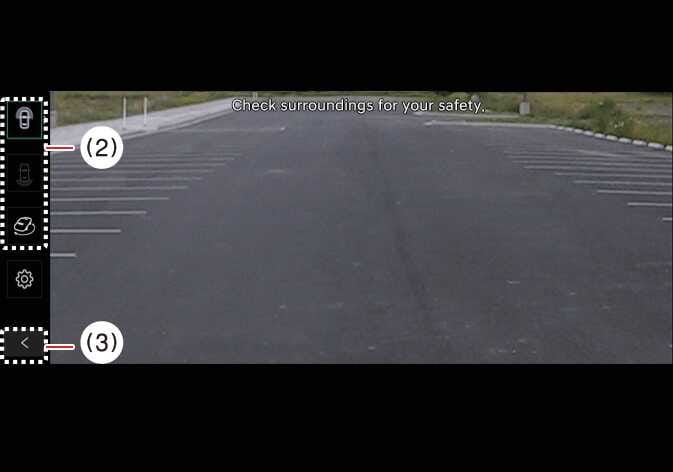

(2) View switching button

(3) back button

(4) infotainment system operation button

The front-view function assists with safe driving by displaying activity ahead of the vehicle on the navigation system, according to your selected settings.

Operating conditions

The Surround View Monitor’s Front-view function activates when you are parking under the following conditions:

  • Your vehicle’s gear is in P (Park), N (Neutral), or D (Drive) at a speed below 6 mph (10 km/h), and you press the Parking/View button (1).

  • You shift the gear from R (Reverse) to N (Neutral) or D (Drive) at a speed below 6 mph (10 km/h).

  • Forward Parking Distance Warning warns you while the gear is set to D (Drive).

    *(If you have selected Setup > Vehicle > Driver Assistance > Parking Safety > Surround View Monitor Auto On on the infotainment system screen).

Non-operating conditions

Press the view switching button (2) on the Surround View Monitor to select Top View, Front View, Side View, or Wide View.

The Surround View Monitor’s front-view function turns OFF when you are parking under the following conditions:

  • You shift the gear to P (Park) or R (Reverse).

  • You press the Parking/View button (1).

  • You press the back button (3) on the Surround View Monitor screen.

  • You press the infotainment system power button (4).

  • You drive above 6 mph (10 km/h).

TIP

When the Surround View Monitor Front View activates, the last view you used displays.
