Instrument cluster

Figure 1. Type A
OMQ4A035144
Figure 2. Type A (For Hybrid)
OLQ2AH005031

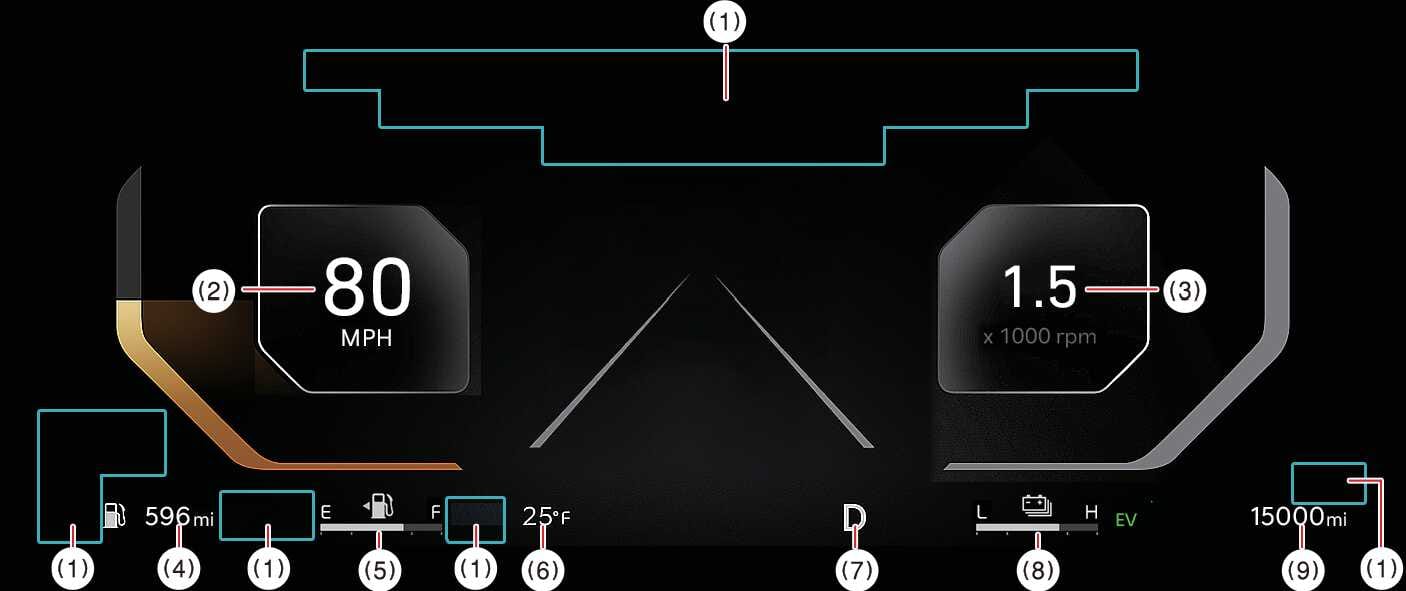

Figure 3. Type B
N_SP327_B00_001_A
Figure 4. Type B (For Hybrid)
N_SP327_B00_002_A

The actual instrument cluster in the vehicle may differ from the illustrations.

  1. Warning and indicator lights

  2. Speedometer

  3. Tachometer/Power gauge

  4. Distance to empty

  5. Fuel gauge

  6. Outside temperature gauge

  7. Transmission shift indicator

  8. Engine coolant temperature gauge/ Hybrid battery SOC (State of Charge) gauge

  9. Odometer
