Automatic climate control system: (if equipped)

The automatic climate control system cools or heats the inside of the vehicle for the comfort of you and your passengers.

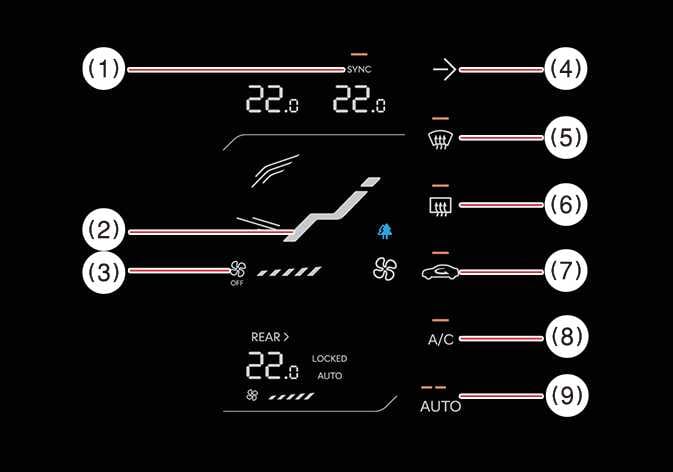

Figure 1. Climate control display
KIAPB024
Figure 2. Instrument panel
N_SP327_C08_004

  1. SYNC icon

    • Touch the SYNC icon to adjust the driver and passenger side temperature to the same value.

  2. Mode selection icon

  3. Fan speed control/OFF icon

  4. Climate control system screen access icon

  5. Front-windshield defroster icon

  6. Rear-window defroster icon

  7. Air intake control icon

  8. Air conditioning A/C icon

  9. AUTO (automatic control) icon

  10. Driver's side temperature control lever

  11. Fan speed control/OFF lever

  12. Mode selection lever

  13. Passenger's side temperature control lever

NOTE

  • Operating the blower fan when the vehicle is in ACC position may cause the 12V battery to discharge. Only operate the blower fan when the vehicle is running.
