Replacing lights (LED type)

If the LED lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, please have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing headlamp (high/low/sub low), day time running light, position lamp, front turn signal lamp, front fog lamp, front side marker (LED type)

If headlamp (high/low), day time running light, position lamp, front turn signal lamp, front fog lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer.

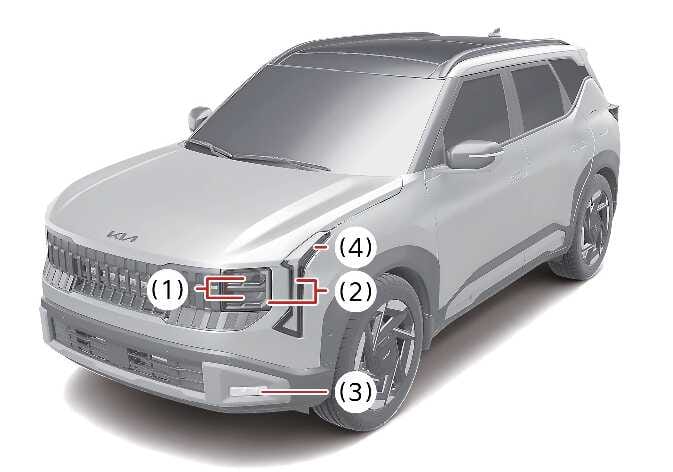

Figure 1. Type A
N_SP327_C11_001_A

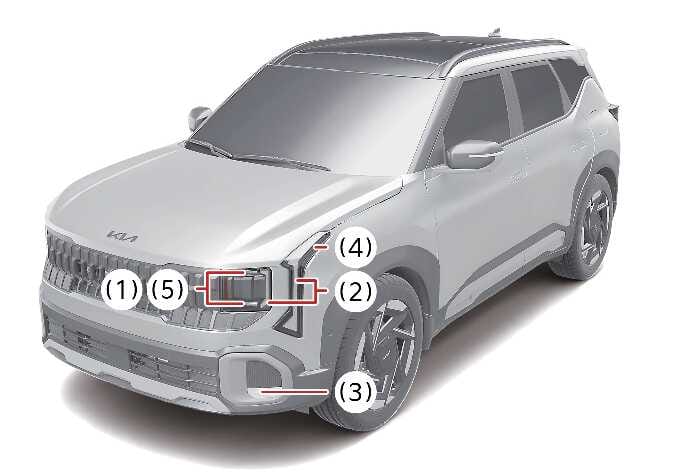

Figure 2. Type B
N_SP327_C11_002_A

  1. Headlamp (Low/ Low) (LED type)

  2. Day time running light/Position lamp/ Turn signal lamp (LED type)

  3. Front fog lamp (LED type)

  4. Front side marker (LED type)

  5. Headlamp (Sub low) (LED type)

NOTE

After replacing the headlamp assembly, the headlamp aiming should be adjusted. Have your vehicle inspected by an authorized Kia dealer.

Replacing side repeater lamp (LED type)

If side repeater lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer.

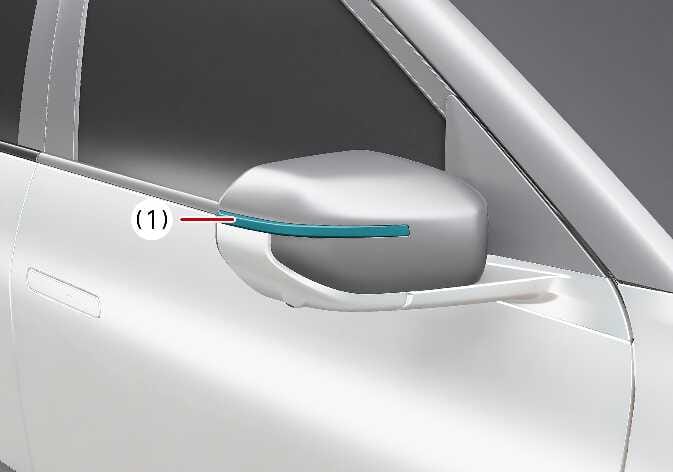

N_SP3i26_B12_065_IR

  1. Side repeater lamp (LED type)

Replacing stop lamp, tail lamp, rear turn signal lamp, high mounted stop lamp, back up lamp, rear side marker, license plate lamp (LED type)

If stop lamp, tail lamp, rear turn signal lamp, reversing lamp, license plate lamp, high mounted stop lamp, rear side marker is not functioning, please have your vehicle inspected by an authorized Kia dealer.

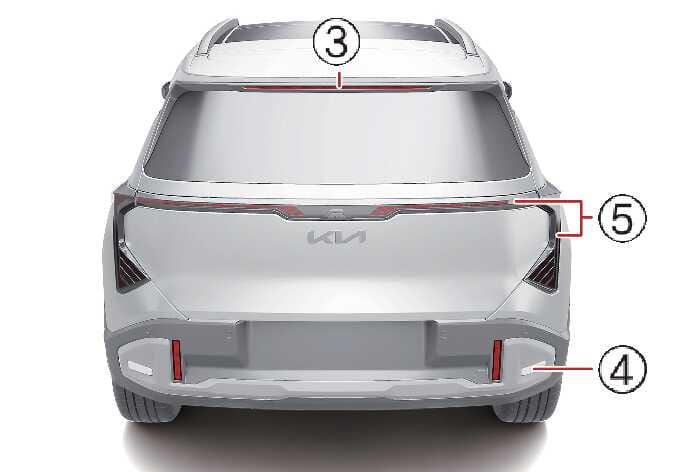

Figure 3. Type A
N_SP327_C11_005_A

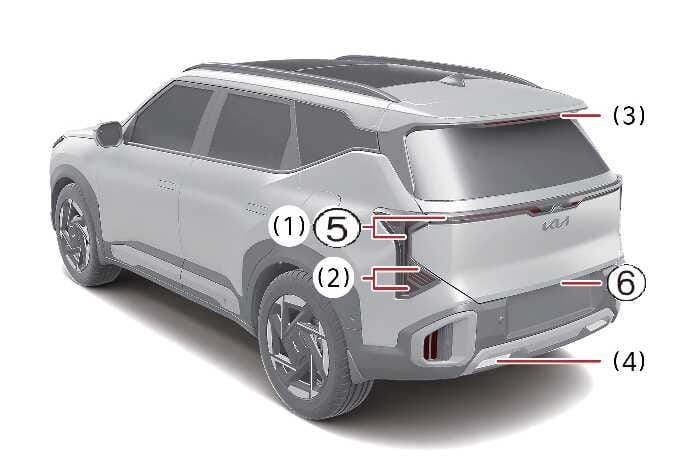

Figure 4. Type B
N_SP327_C11_006_A

  1. Tail lamp/ Stop lamp ( (LED type)

  2. Rear turn signal lamp (LED type)

  3. High mounted stop lamp (LED type)

  4. Back up lamp (LED type)

  5. Rear side marker (LED type)

  6. License plate lamp (LED type)

Replacing interior lights (LED type)

If map lamp, room lamp, personal lamp, ambient light is not functioning, please have your vehicle inspected by an authorized Kia dealer.

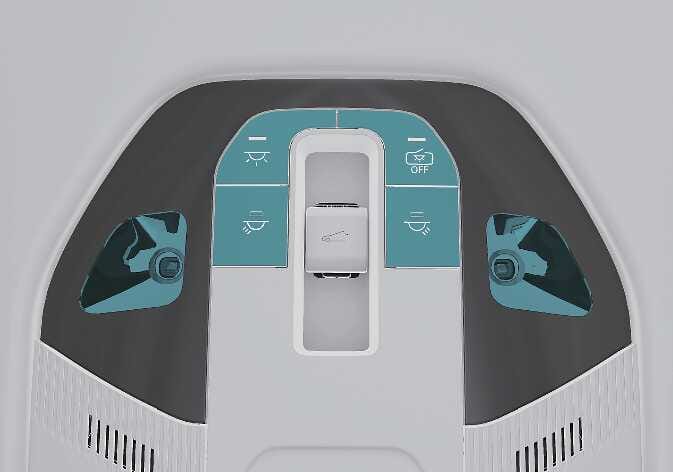

Figure 5. Map lamp
N_SP3i26_B12_088_IR
Figure 6. Room lamp (if equipped)
N_SP3i26_C08_005_1_I

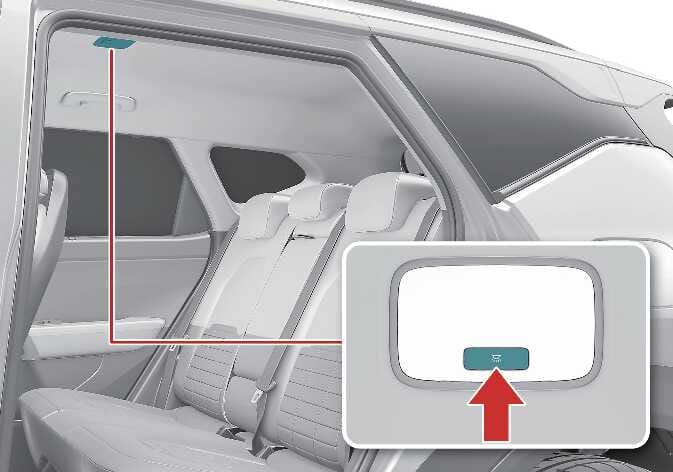

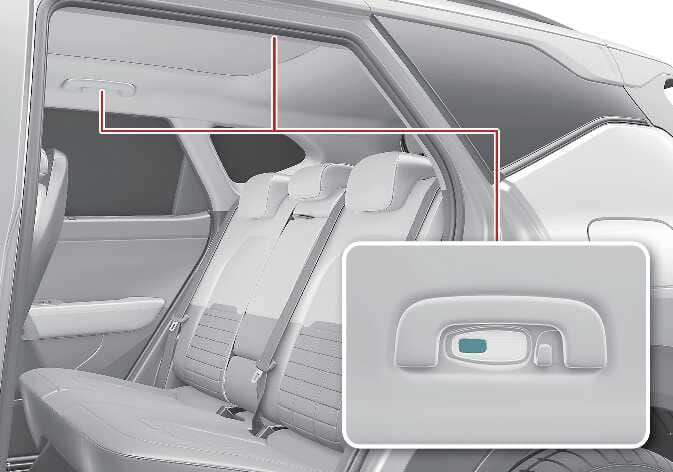

Figure 7. Personal lamp (if equipped)
N_SP3i26_C08_006_1_I
Figure 8. Ambient light (if equipped)
N_SP3i26_C08_043_I

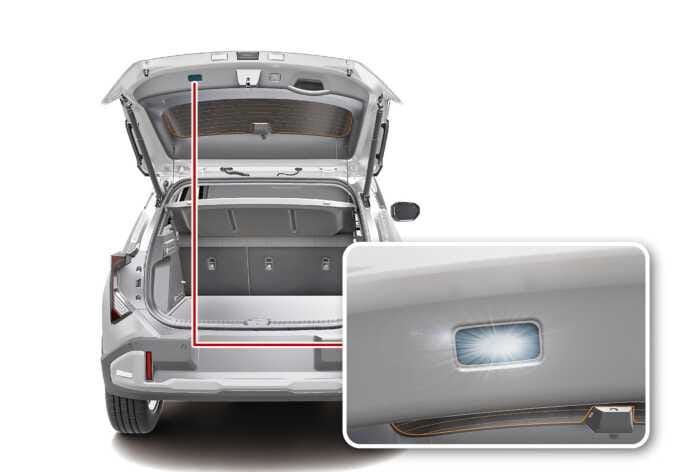

Figure 9. Liftgate light
N_SP327_C08_044_1
Figure 10. Luggage compartment lamp
N_SP327_C08_043_1
Figure 11. Vanity lamp (if equipped)
N_SP327_C08_045_1
