Setting the charge level of the portable charger

  1. Check the rated current of the household electric outlet before you connect the plug to it.
  2. Connect the ICCB plug to a household electrical outlet.
  3. Check the display window on the control box.
  4. Press the button (1) on the back of the control box for 2 to 8 seconds to adjust the charge level. (Refer to the charging cable type and example for setting the charge level.)
    N_CT25_A07_022_A
    N_CT25_A07_023_A

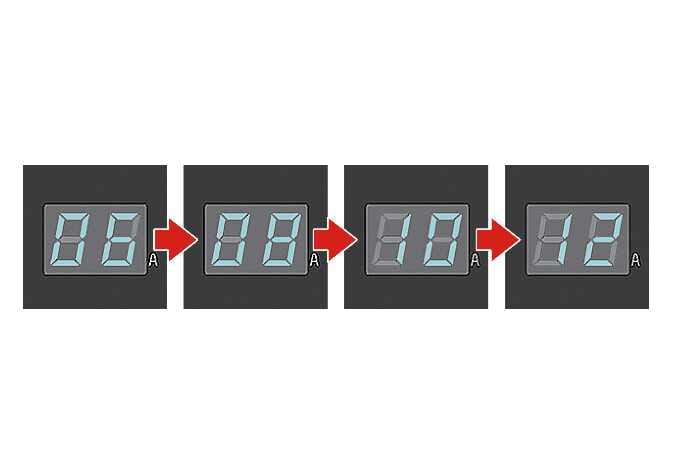

    The charge level on the display window of the control box changes every time you press the button (1).

  5. When you finish setting the charge level, start charging according to the portable charge procedure.
    N_CT25_A07_022_A

    Example for setting the In-Cable Control Box (ICCB)charge level

    This example is for reference only. The actual charge level might vary according to the surrounding environment.

    Outlet current

    ICCB charge level

    14–16 A

    12A

    13–12 A

    10A

    11–10 A

    8A

    9–8 A

    6A
