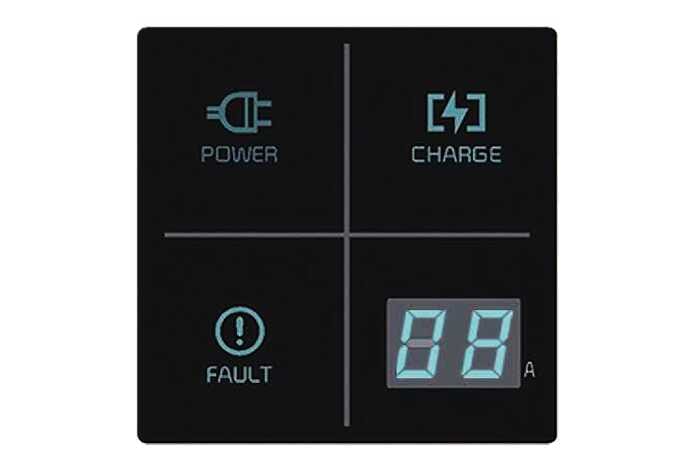

Charging status indicator light for the portable charger
 N_CT25_A07_024_A |
|
Indicator |
Details |
|
|---|---|---|
|
POWER |
On: Power on |
|
|
CHARGE |
On: Charge Blink: Current limit due to high plug temperature or high internal temperature |
|
|
FAULT |
Blink: Charging interrupted |
|
|
CHARGE LEVEL |
12 |
12A |
|
10 |
10A |
|
|
8 |
8A |
|
|
6 |
6A |
|
|

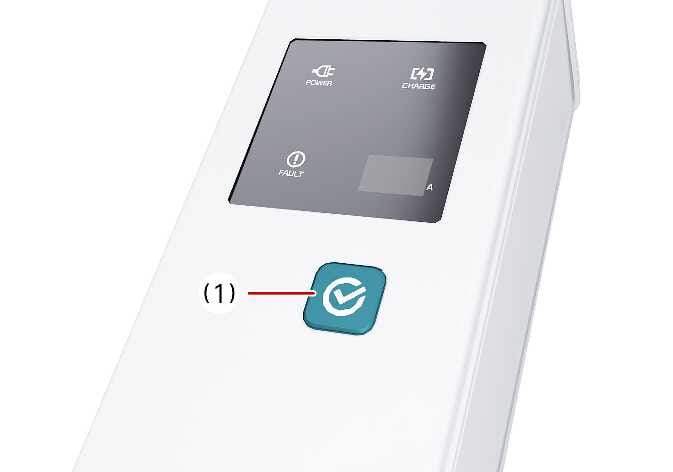

The charging current changes if you press the button (1) for less than a second while the charger is connected to an electrical outlet, but not the vehicle.  N_CT25_A07_023_A |
||
