Display and control

The Highway Driving Assist operation status is visible in the Driving Assist view on the instrument cluster. For more information, refer to Instrument cluster.

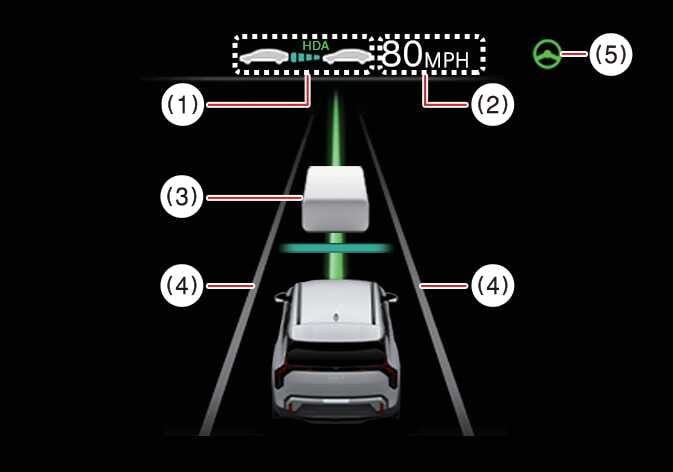

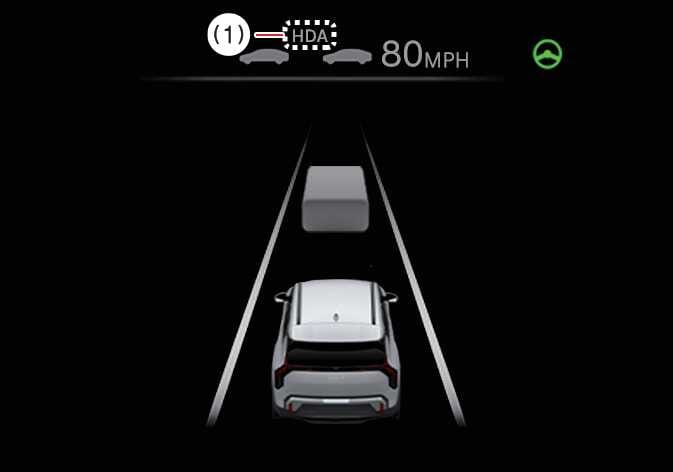

Figure 1. Standby State OSVM006119N	Figure 2. Operating State OSVM006120N

The Highway Driving Assist status displays on the instrument cluster as follows:

Highway Driving Assist indicator, whether there is a vehicle ahead and the selected distance level is displayed.
- Green: Operating
- Gray: Standby
- White blinking: Accelerator engaged
- Unlit: OFF
Set speed
Whether the lane is detected or not
Whether there is a vehicle ahead and the selected headway
Lane Following Assist indicator

TIP

For more information about the display symbols and colors, refer to Lane Following Assist (LFA) and Smart Cruise Control (SCC).
The images or colors may display differently depending on the specifications of the instrument cluster or theme.
