Display and control

The Highway Lane Change Assist status is visible on the instrument cluster. For more information, refer to Instrument cluster.

The Highway Lane Change Assist status is displayed on the instrument cluster as follows:

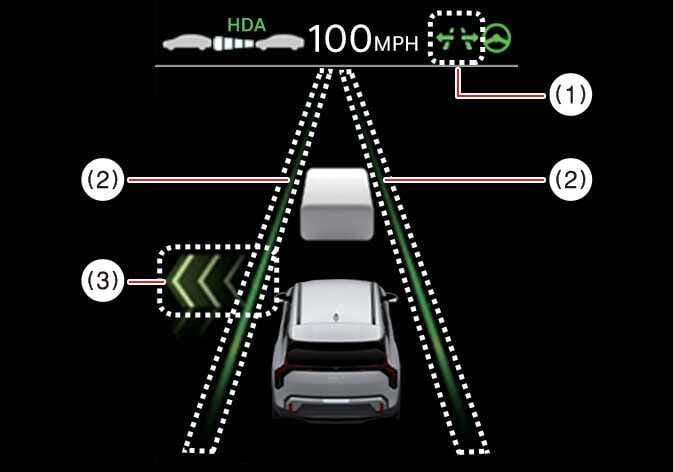

Figure 1. Ready/Operating
OSVM006037L

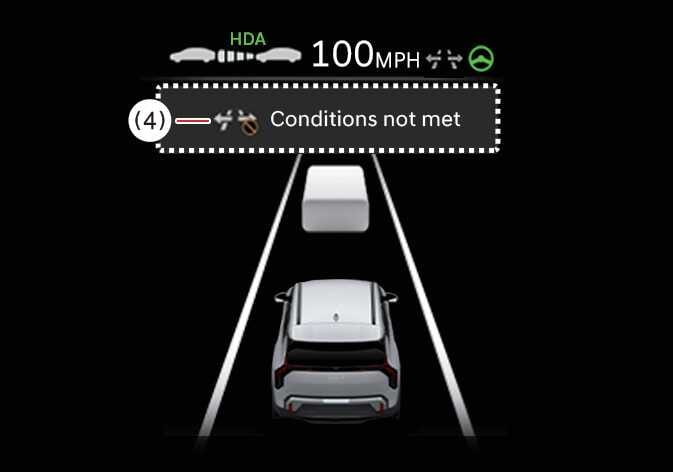

Figure 2. Standby/Canceled
OSVM006121N

  1. Highway Lane Change Assist indicator

    • Green (): Ready

    • Green () blinking: Operating

    • Gray (): Standby

    • White () blinking: Canceled (displays for a short time after cancellation)

  2. Lane line

    The lane line displays with the same color as the Highway Lane Change Assist indicator (1). However, the lane detection availability is shown on Standby.

  3. Green arrow and shade

    The green arrow appears when a certain amount of time has passed after the function starts operating and until the lane change is completed.

  4. Message

    • A message appears if Highway Lane Change Assist cannot operate when you use the turn signal lever.

    • A message appears when Highway Lane Change Assist is canceled while operating.
