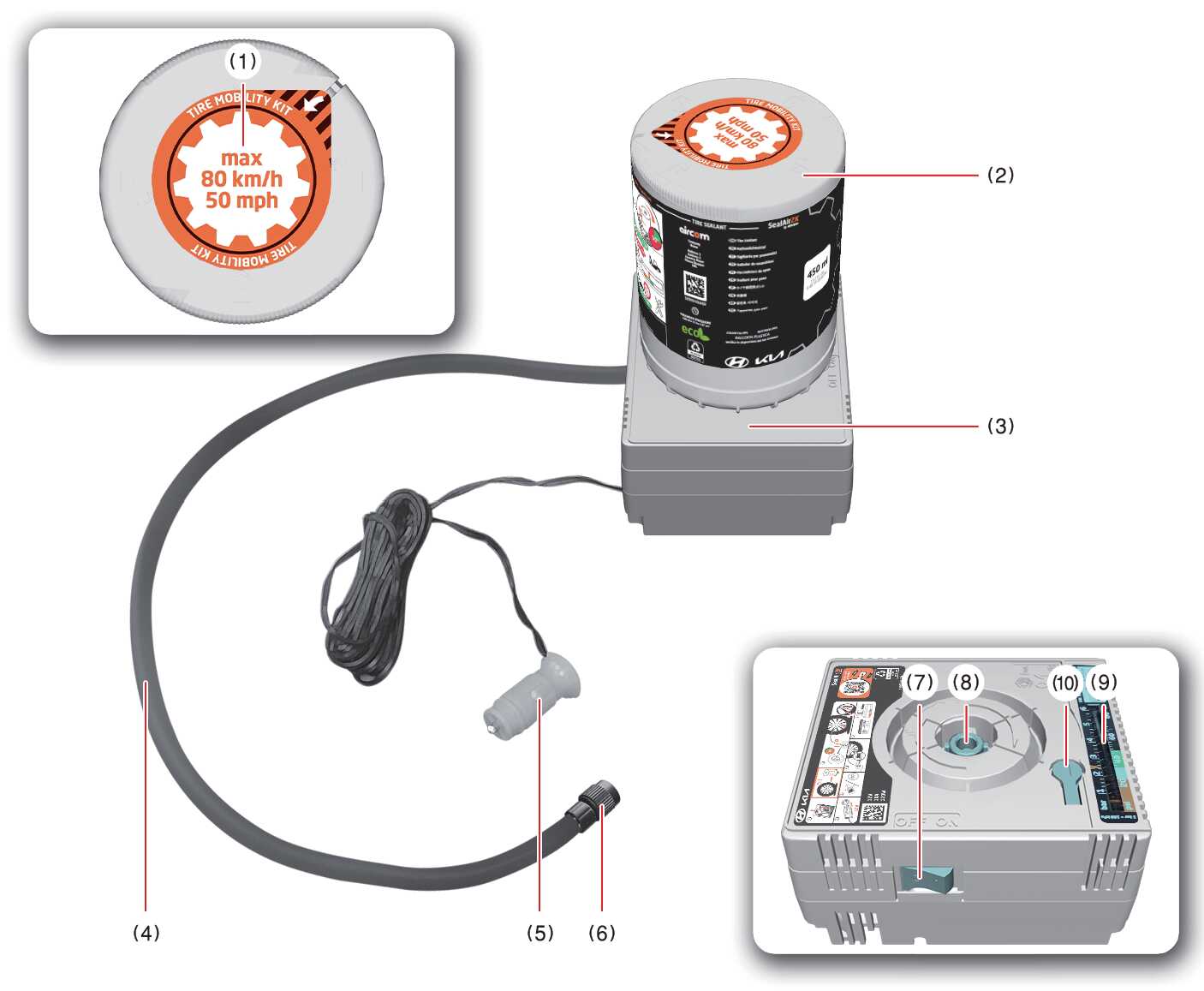

Components of the Tire Mobility Kit

OSVM116018N_2

Connectors, cable and compressor hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

  1. Speed restriction label

  2. Sealant bottle

  3. Compressor

  4. Sealant bottle filling hose

  5. Power outlet connector

  6. Tire Inflation pressure valve

  7. ON/OFF switch

  8. Sealant bottle connector

  9. Tire inflation pressure gauge

  10. Tire pressure release button

WARNING

Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. past the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING

Sealant

  • Keep out of reach of children.

  • Avoid contact with eyes.

  • Do not swallow.

WARNING

  • Before using the TMK, follow the instructions on the sealant bottle.

  • Remove the label with the speed restriction from the sealant bottle and apply it to the steering wheel.

  • Please note the expiration date on the sealant bottle.

TIP

Before using the TMK, carefully read the instructions attached on the sealant bottle. Detach the speed limit label on the sealant bottle and place it in a highly visible area in the vehicle, such as on the steering wheel, to remind you not to drive too fast.

TIP

The sealant bottle and insert hose cannot be reused.
