Using the Tire Mobility Kit

CAUTION

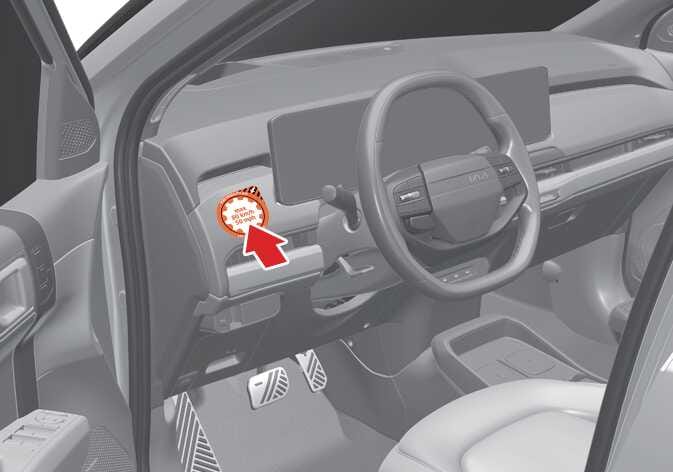

Detach the speed restriction label from the sealant bottle, and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too fast.

OSVM116022L

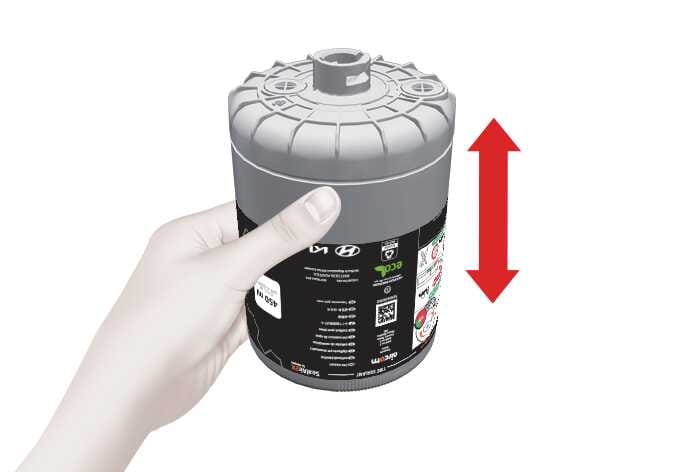

  1. Shake the sealant bottle.

    OSVM116023N

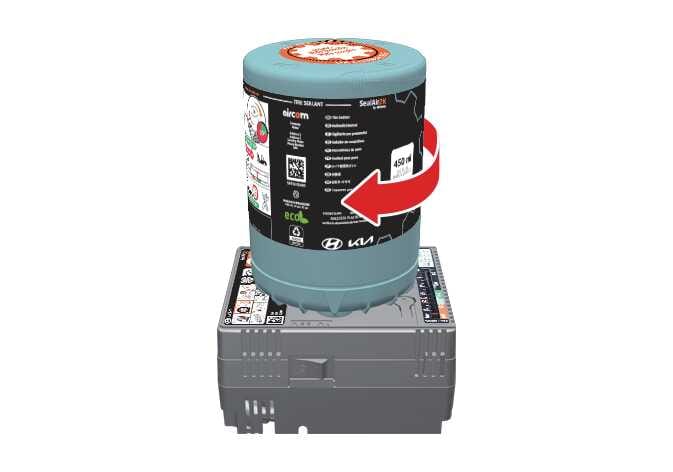

  2. Connect the sealant bottle to the compressor.

    OSVM116024N

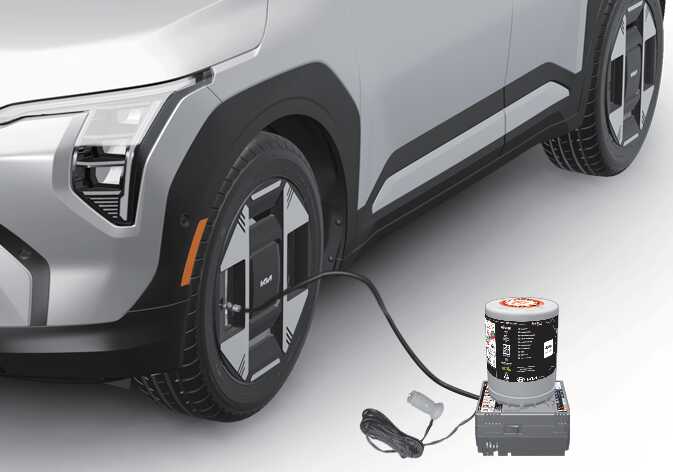

  3. Unscrew the valve cap and screw the filling hose onto the tire valve.

    OSVM116008N

  4. Make sure the compressor is turned off.

    NOTE

    Make sure the tire inflation pressure adjustment valve is closed.

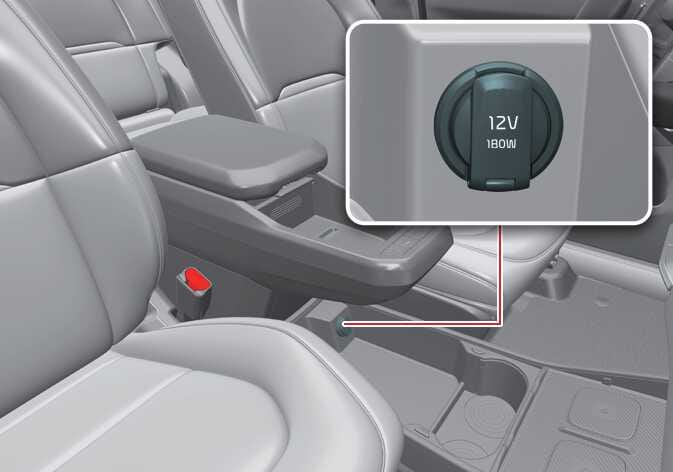

  5. Connect between compressor and the vehicle power outlet using the cable and connectors.

    OSVM116020L

  6. Start the vehicle.

  7. Switch on the compressor and let it run for approximately 5–7 minutes to fill the sealant up to proper pressure. (refer to Tires and wheels). The inflation pressure of the tire after filling is unimportant and will be checked/corrected later.

    Be careful not to overinflate the tire and stay away from the tire when filling it. When the tire and wheel are damaged, do not use Tire Mobility Kit for your safety.

  8. Switch off the compressor.

  9. Detach the sealant filling hoses from the sealant bottle connector and from the tire valve. After using, leave the sealant bottle and the compressor attached together.

  10. Return the TMK to its storage location in the vehicle.

WARNING

  • If the tire pressure is below 29 psi (200 kPa), do not drive the vehicle. It may cause accident.

  • Do not leave your vehicle running in a poorly ventilated area for extended periods of time. Carbon monoxide poisoning and suffocation can occur.

NOTE

Securely install the sealant filling hose on the valve. If not, sealant may flow backward, possibly clogging the filling hose.
