LCD display messages

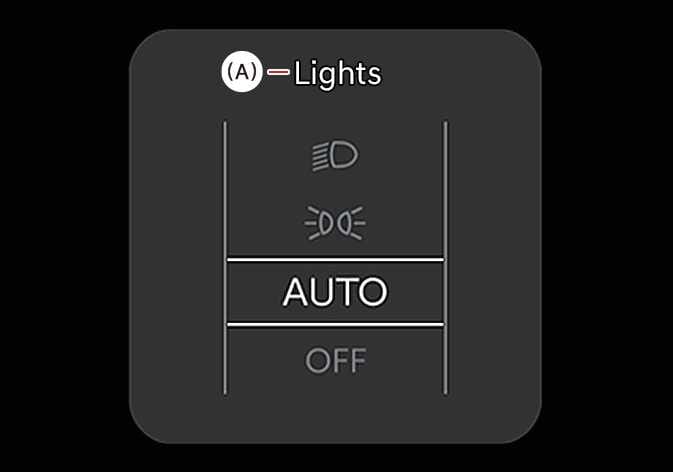

Lights mode

OSW035122L

(A): Lights

This indicator displays which exterior light is selected using the lighting control.

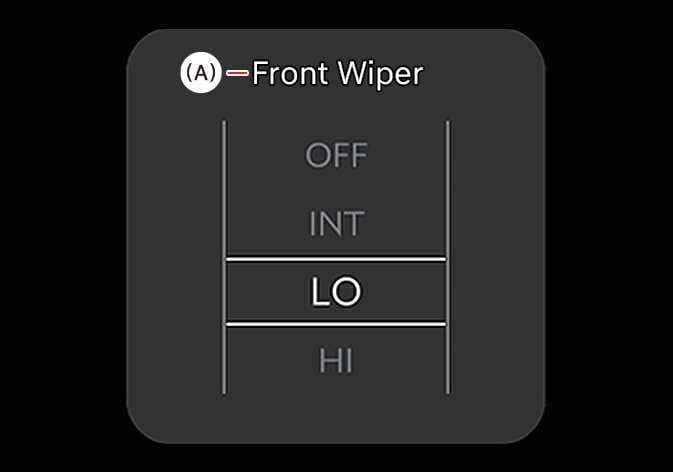

Wiper mode

OSW035123L

(A): Front wiper

This indicator displays which wiper speed is selected using the wiper control.

Door, bonnet, tailgate, sunroof open

  • This warning is displayed indicating which door, the bonnet, the tailgate or the sunroof is open.

Low washer fluid

  • The washer fluid level in the reservoir is nearly empty

Icy road warning

  • The temperature on the outside temperature gauge is below approximately 4 °C (40 °F).

Low key battery

  • The battery in the smart key is flat

Press START button whilst turning wheel

  • The steering wheel does not unlock normally when the EV button is pressed

Steering wheel unlocked

  • The steering wheel does not lock when the EV button changes to the OFF position

Check steering wheel lock system

  • The steering wheel does not lock normally when the EV button changes to the OFF position

Check haptic steering wheel system

  • There is a problem with the haptic steering wheel system

Key not in vehicle

  • The smart key is not in the vehicle when you press the EV button

Key not detected

The smart key is not detected when you press the EV button

Press start button again

  • The EV button cannot be operated due to a problem with the EV button system

  • You could start the vehicle by pressing the EV button once more.

  • If the warning message is displayed each time you press the EV button, have the vehicle inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.

Place smart key on emergency start position and press EV button.

  • The EV button is pressed whilst the "Key not detected" warning message is displayed

Check driver assistance system.

Problem with Driver Assistance system

Check BRAKE SWITCH fuse

  • The brake switch fuse is disconnected

  • You need to replace the fuse with a new one before starting the vehicle.

  • If that is not possible, you can start the vehicle by pressing the EV button for 10 seconds in the POWER ON or DRIVE READY position.

Refill coolant

The coolant is low

The steering wheel heater is off

When you turn off the steering wheel heater

Charge immediately. Power limited

When the battery temperature is extremely low in winter, the battery temperature optimization is conducted for normal driving conditions.

The optimization time may vary depending on the battery temperature and charging conditions.

Power limited due to low EV battery temperature. Charge battery

If the high voltage battery level and temperature is too low, the power may be limited. When the warning message is displayed, please charge the vehicle immediately.

NOTE

  • Some driving information stored in the trip computer resets if the battery is disconnected.

  • If any of the following conditions occurs, the mileage and days may be incorrect.

    • The battery cable is disconnected.

    • The battery is discharged.

  • If sunroof open warning is displayed in the cluster, the Driving Information message may not be displayed.

  • To set the charging time and/or climate time, refer to Navigation Quick Reference Guide.

  • If the icy road warning appears whilst driving, you should drive more attentively and safely refraining from over-speeding, rapid acceleration, sudden braking or sharp turning, etc.
