Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

Function

Details

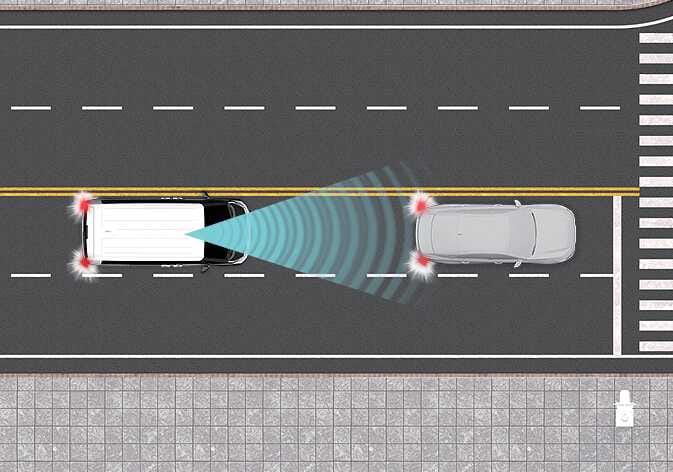

Figure 1. Basic function
OSW055067

Forward Collision-Avoidance Assist detects a vehicle, a powered two-wheeler, a pedestrian, or a cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and a warning sound. Also, Forward Collision-Avoidance Assist may assist with braking your vehicle to help reduce collision speed or avoid a collision.

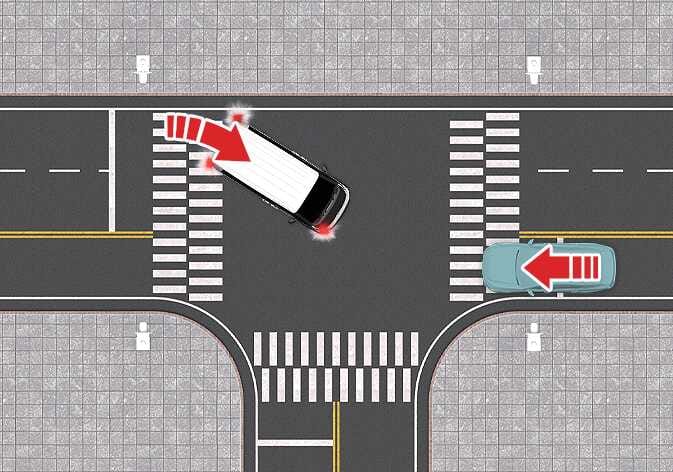

Figure 2. Junction Turning function
OSW055068R

Junction Turning function can help avoid a collision with an oncoming vehicle, powered two-wheeler and cyclist in an adjacent lane when turning left (left-hand drive) or right (right-hand drive) at a crossroad with the turn signal on by applying emergency braking.

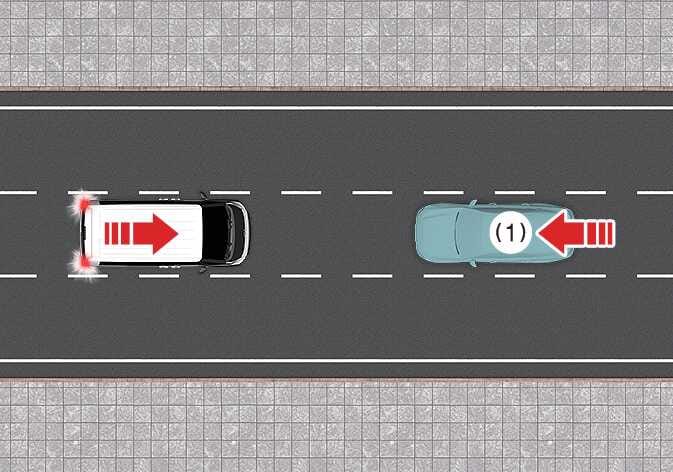

Figure 3. Direct Oncoming function
OSW055070
  1. Oncoming vehicle

Direct Oncoming function helps reduce the speed at the collision when with a vehicle or powered two-wheeler approaching from the opposite side is detected.

Detecting sensor

Please refer to Detecting sensors for the applicable sensors and their locations.
