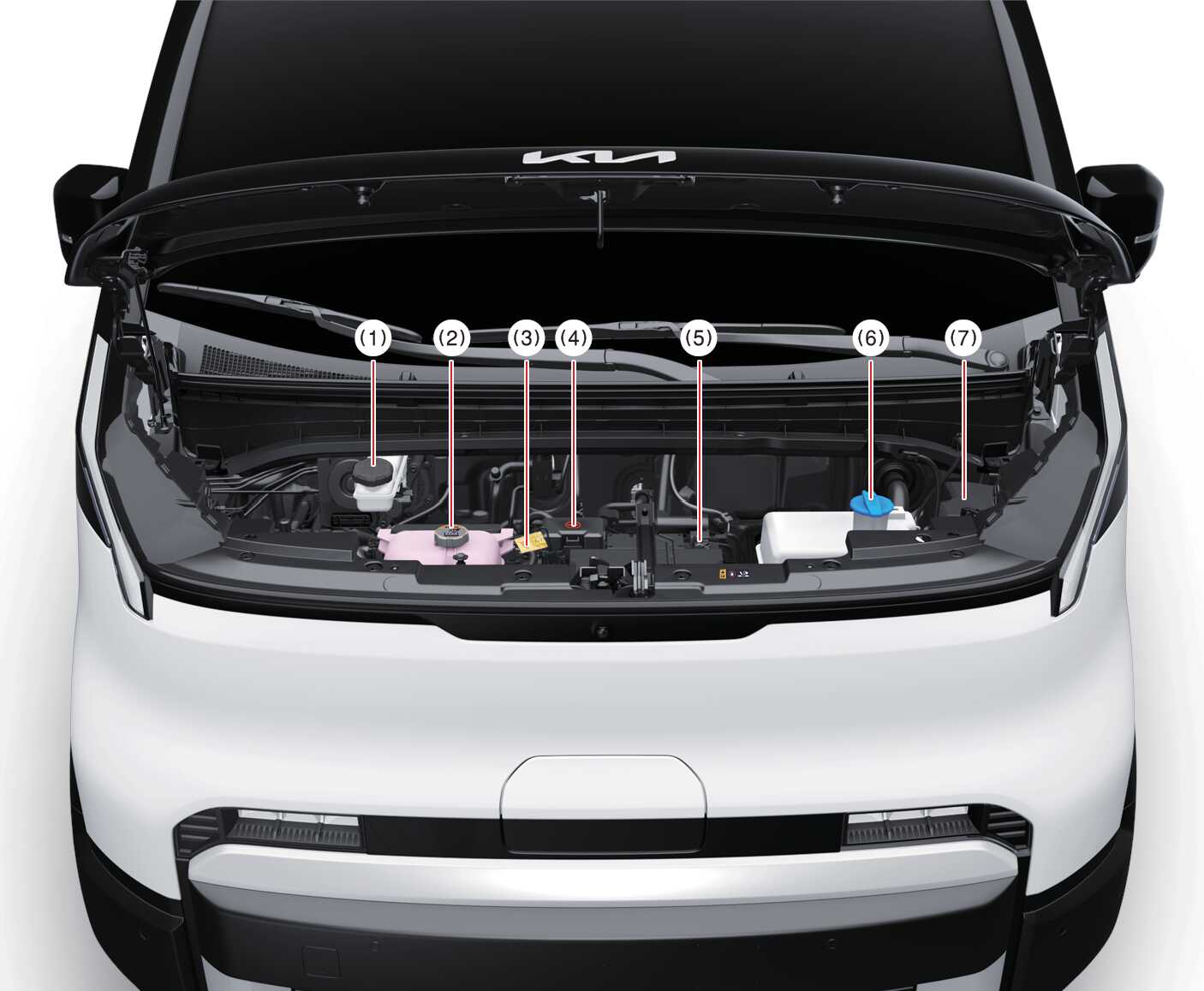

OSW075001R

The actual motor compartment in your Kia may differ from the illustration.

1. Brake fluid reservoir - Brake fluid

2. Coolant reservoir - Coolant

3. Service interlock connector - Safety precautions for electric vehicle

4. Positive battery terminal (+) - Battery

5. Negative battery terminal (-) - Battery

6. Windscreen washer fluid reservoir - Washer fluid

7. Fuse box - Fuse/relay panel description
