Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

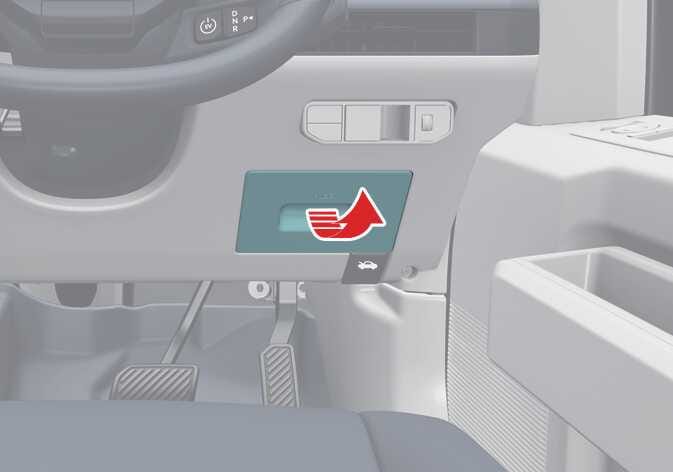

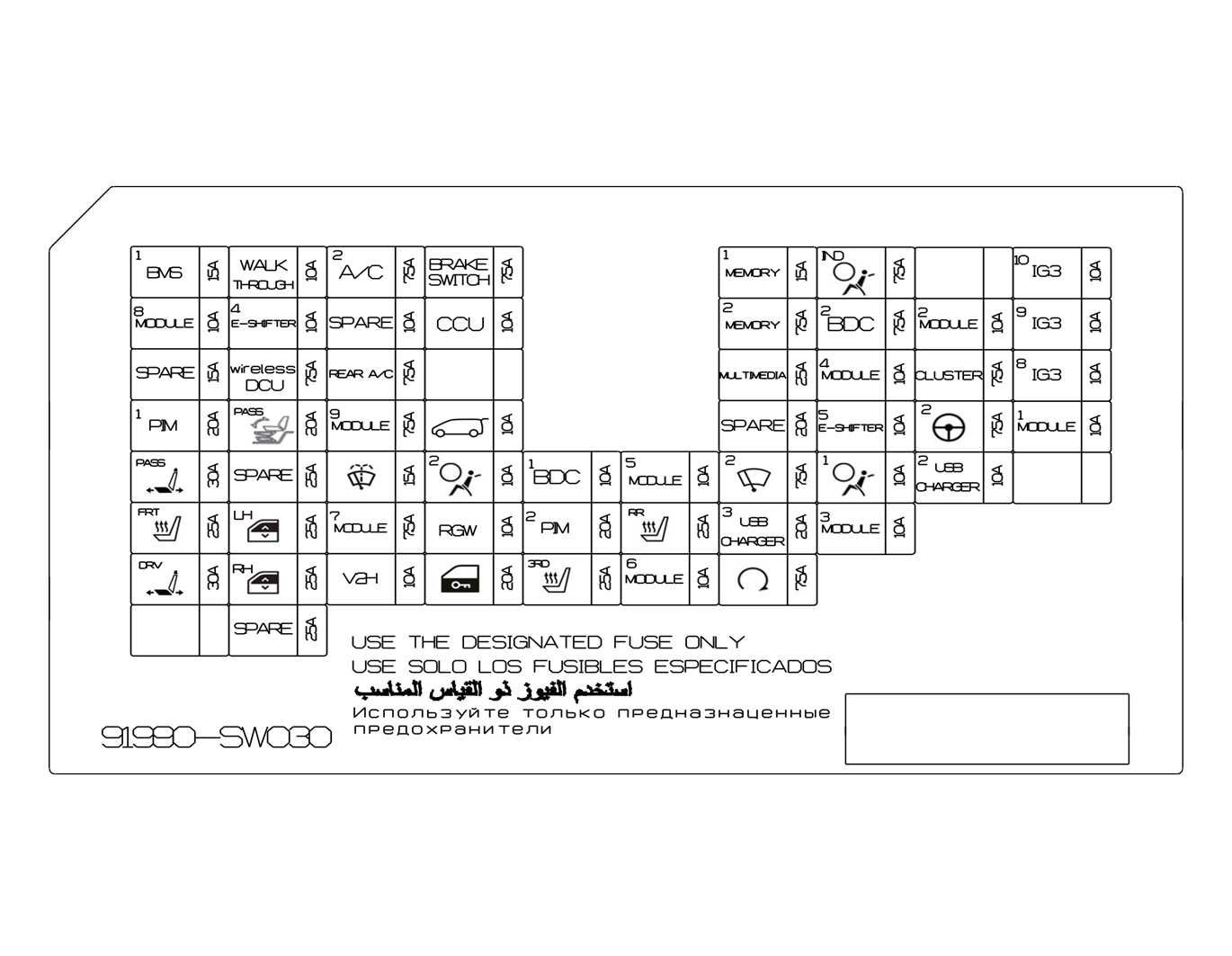

Driver's side fuse panel
 OSW075006R |
|
Fuse Name |
Position |
Fuse rating |
|---|---|---|
|
BMS |
FS01 |
MICRO 15A |
|
WALK THROUGH |
FS02 |
MICRO 10A |
|
SPARE |
FS02 |
MICRO 10A |
|
A/C |
FS03 |
MICRO 7.5A |
|
BRAKE SWITCH |
FS04 |
MICRO 7.5A |
|
MEMORY |
FS05 |
MICRO 15A |
|
A/BAG IND |
FS06 |
MICRO 7.5A |
|
RESERVE |
FS07 |
|
|
IG3 |
FS08 |
MICRO 10A |
|
MODULE |
FS09 |
MICRO 10A |
|
E-SHIFTER |
FS10 |
MICRO 10A |
|
IG2 |
FS11 |
MICRO 10A |
|
SPARE |
FS11 |
MICRO 10A |
|
CCU |
FS12 |
MICRO 10A |
|
MEMORY |
FS13 |
MICRO 7.5A |
|
BDC |
FS14 |
MICRO 7.5A |
|
MODULE |
FS15 |
MICRO 10A |
|
IG3 |
FS16 |
MICRO 10A |
|
B+ |
FS17 |
MICRO 15A |
|
SPARE |
FS17 |
MICRO 15A |
|
wireless DCU |
FS18 |
MICRO 7.5A |
|
REAR A/C |
FS19 |
MICRO 7.5A |
|
RESERVE |
FS20 |
|
|
MULTIMEDIA |
FS21 |
MICRO 25A |
|
MODULE |
FS22 |
MICRO 10A |
|
CLUSTER |
FS23 |
MICRO 7.5A |
|
IG3 |
FS24 |
MICRO 10A |
|
PIM |
FS25 |
MICRO 20A |
|
SPARE |
FS25 |
MICRO 20A |
|
SEAT FOLDING PASS |
FS26 |
MICRO 20A |
|
SPARE |
FS26 |
MICRO 20A |
|
MODULE |
FS27 |
MICRO 7.5A |
|
SPARE |
FS27 |
MICRO 7.5A |
|
TAILGATE OPEN |
FS28 |
MICRO 10A |
|
SUNROOF |
FS29 |
MICRO 20A |
|
SPARE |
FS29 |
MICRO 20A |
|
E-SHIFTER |
FS30 |
MICRO 10A |
|
MDPS |
FS31 |
MICRO 7.5A |
|
MODULE |
FS32 |
MICRO 10A |
|
P/SEAT PASS |
FS33 |
MICRO 30A |
|
S/HEATER RR LH |
FS34 |
MICRO 25A |
|
SPARE |
FS34 |
MICRO 25A |
|
WASHER |
FS35 |
MICRO 15A |
|
AIR BAG |
FS36 |
MICRO 10A |
|
BDC |
FS37 |
MICRO 10A |
|
MODULE |
FS38 |
MICRO 10A |
|
WIPER FRT |
FS39 |
MICRO 7.5A |
|
AIR BAG |
FS40 |
MICRO 10A |
|
USB CHARGER |
FS41 |
MICRO 10A |
|
RESERVE |
FS42 |
|
|
S/HEATER FRT |
FS43 |
MICRO 25A |
|
P/WINDOW LH |
FS44 |
MICRO 25A |
|
MODULE |
FS45 |
MICRO 7.5A |
|
RGW |
FS46 |
MICRO 10A |
|
SPARE |
FS46 |
MICRO 10A |
|
PIM |
FS47 |
MICRO 20A |
|
SPARE |
FS47 |
MICRO 20A |
|
S/HEATER RR |
FS48 |
MICRO 25A |
|
USB CHARGER |
FS49 |
MICRO 20A |
|
MODULE |
FS50 |
MICRO 10A |
|
P/SEAT DRV |
FS51 |
MICRO 30A |
|
P/WINDOW RH |
FS52 |
MICRO 25A |
|
SPARE |
FS53 |
MICRO 10A |
|
V2H |
FS53 |
MICRO 10A |
|
DOOR LOCK |
FS54 |
MICRO 20A |
|
3rd_S/HEATER |
FS55 |
MICRO 25A |
|
MODULE |
FS56 |
MICRO 10A |
|
START |
FS57 |
MICRO 7.5A |
|
RESERVE |
FS58 |
|
|
S/HEATER RR RH |
FS59 |
MICRO 25A |
|
SPARE |
FS59 |
MICRO 25A |
1. MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

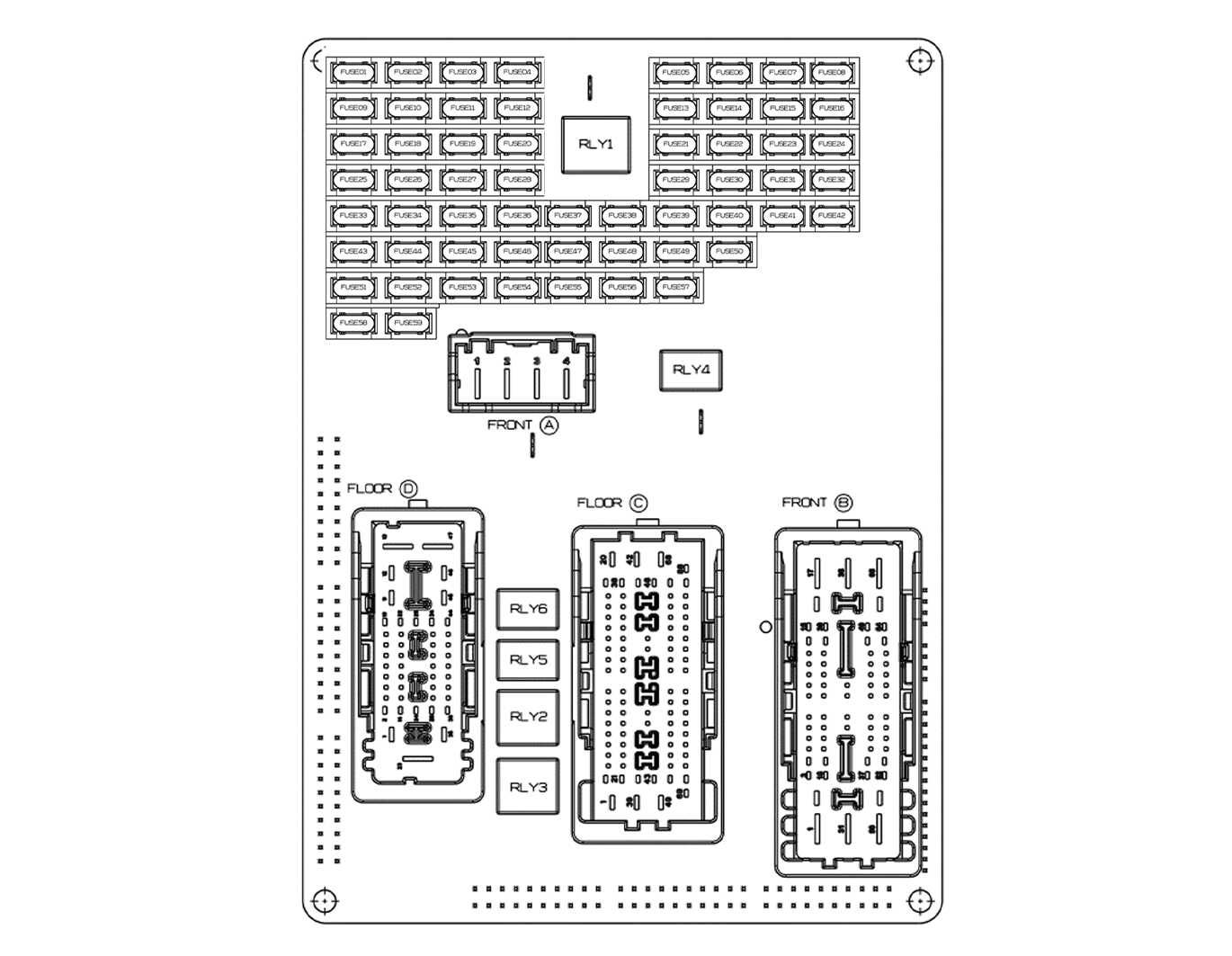

Refer to the following table for the relay type.
|
Fuse Name |
Position |
Fuse rating |
|---|---|---|
|
LongTermLoadLatchRelay |
RLY1 |
PCB 5P |
|
DOOR LOCK |
RLY2 |
PCB 5P |
|
DOOR UNLOCK |
RLY3 |
PCB 5P |
|
RESERVE |
RLY4 |
PCB 5P |
|
RESERVE |
RLY5 |
PCB 5P |
|
START INHIBIT RLY |
RLY6 |
PCB 5P |
|
TWO TURN UNLOCK / CHARGE DR UNLOCK |
RLY7 |
PCB 5P |
|
TAILGATE OPEN |
RLY8 |
PCB 4P |

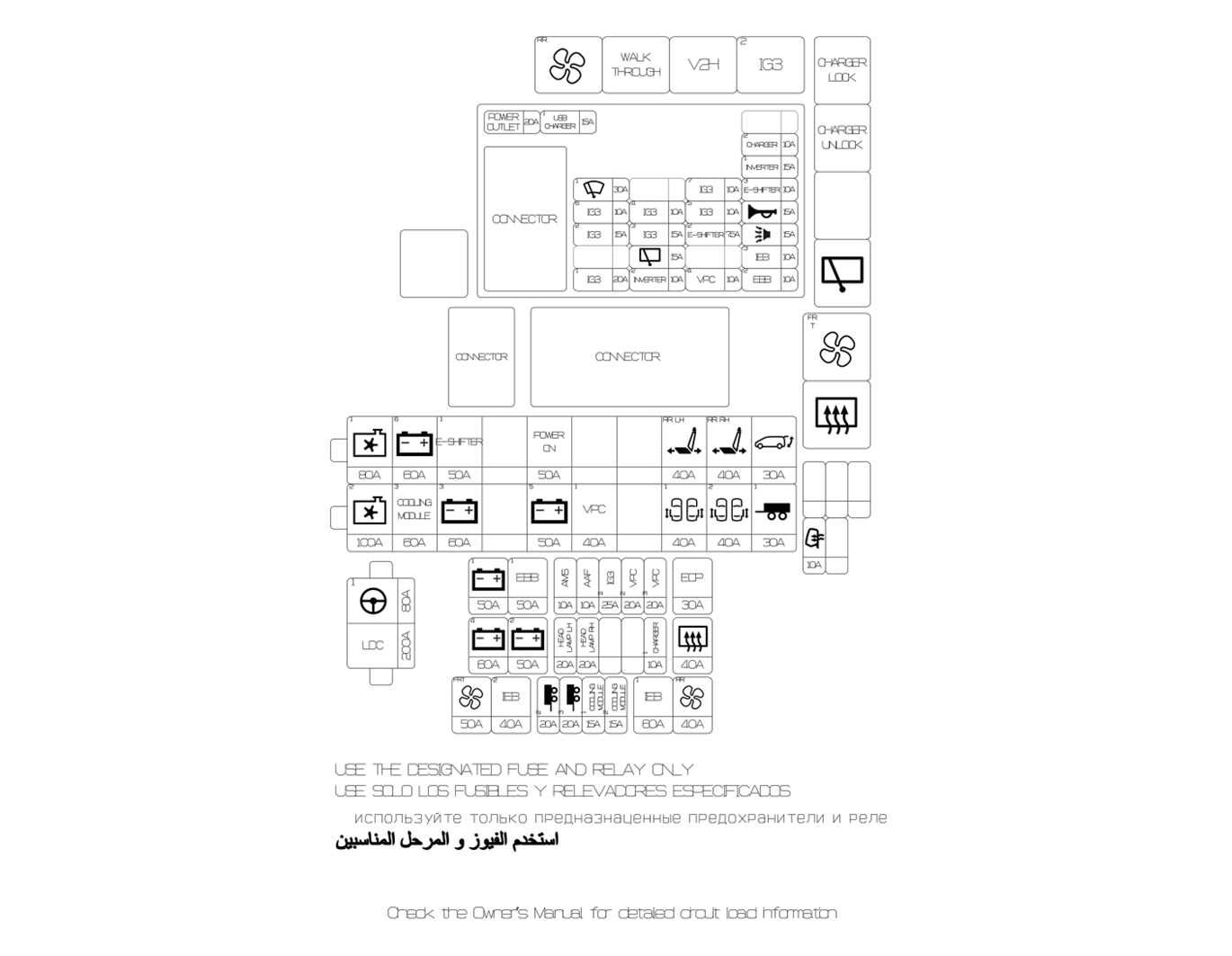

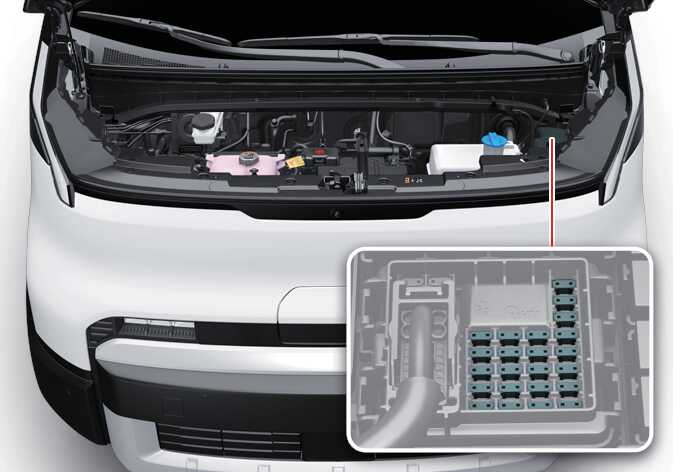

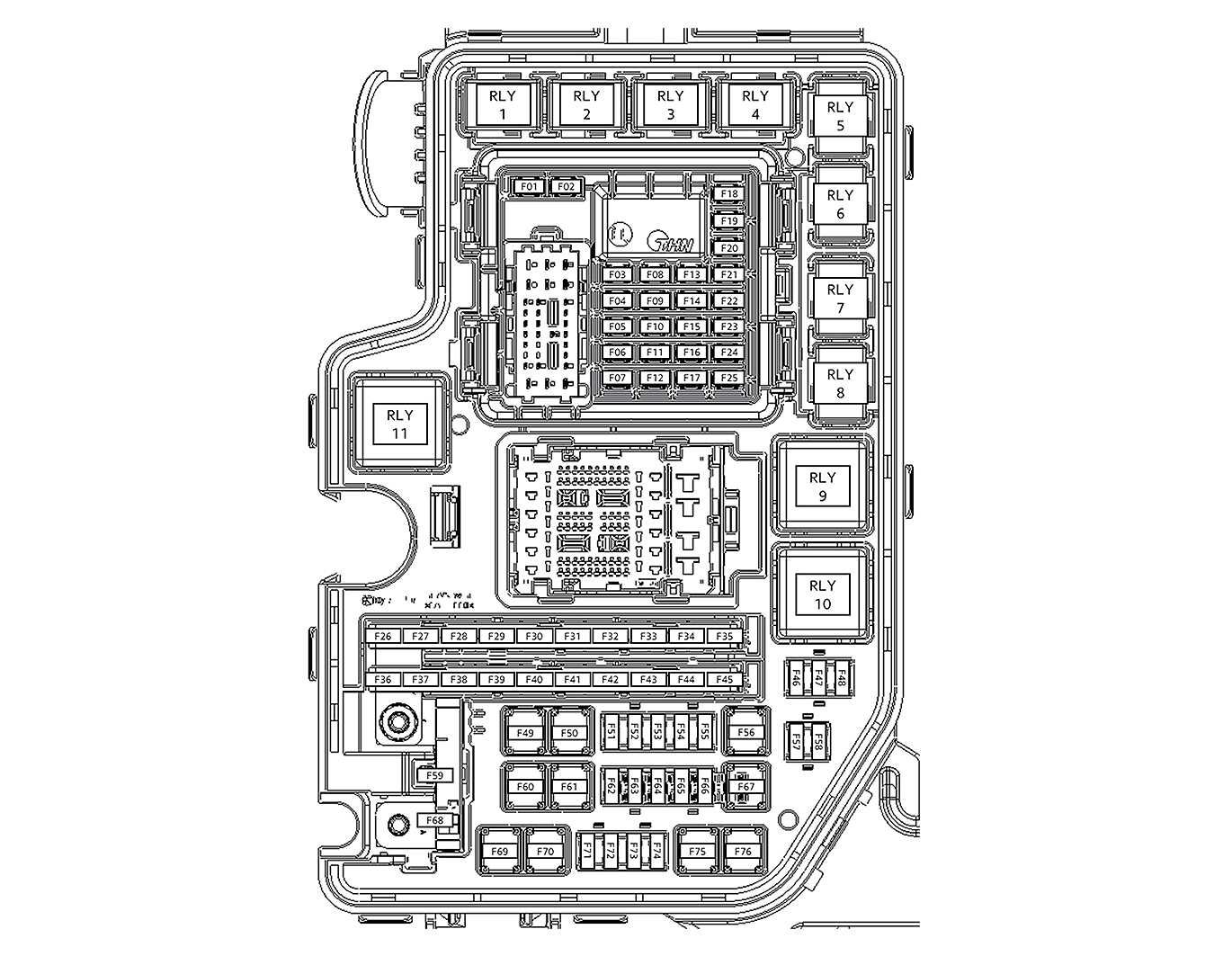

Motor compartment fuse panel
 OSW075014R |
|
Fuse name |
Position |
Fuse rating |
|---|---|---|
|
POWER OUTLET |
F01 |
MICRO 20A |
|
USB CHARGER |
F02 |
MICRO 15A |
|
WIPER FRT |
F03 |
MICRO 30A |
|
IG3 |
F04 |
MICRO 10A |
|
IG3 |
F05 |
MICRO 15A |
|
RESERVE |
F06 |
MICRO 20A |
|
IG3 |
F07 |
MICRO 20A |
|
RESERVE |
F08 |
|
|
IG3 |
F09 |
MICRO 10A |
|
IG3 |
F10 |
MICRO 15A |
|
WIPER RR |
F11 |
MICRO 15A |
|
INVERTER |
F12 |
MICRO 10A |
|
IG3 |
F13 |
MICRO 10A |
|
IG3 |
F14 |
MICRO 10A |
|
E-SHIFTER |
F15 |
MICRO 7.5A |
|
RESERVE |
F16 |
|
|
VPC |
F17 |
MICRO 10A |
|
RESERVE |
F18 |
|
|
CHARGER |
F19 |
MICRO 10A |
|
INVERTER |
F20 |
MICRO 15A |
|
E-SHIFTER |
F21 |
MICRO 10A |
|
HORN |
F22 |
MICRO 15A |
|
B/ALARM HORN |
F23 |
MICRO 15A |
|
IEB |
F24 |
MICRO 10A |
|
EBB |
F25 |
MICRO 10A |
|
COOLING FAN |
F26 |
MULTI 80A |
|
B+ |
F27 |
MULTI 60A |
|
E-SHIFTER |
F28 |
MULTI 50A |
|
SPARE |
F29 |
MULTI 50A |
|
POWER ON |
F30 |
MULTI 50A |
|
SPARE |
F31 |
MULTI 50A |
|
SPARE |
F32 |
MULTI 40A |
|
P/SEAT RR LH |
F33 |
MULTI 40A |
|
P/SEAT RR RH |
F34 |
MULTI 40A |
|
POWER TAILGATE |
F35 |
MULTI 30A |
|
COOLING FAN |
F36 |
MULTI 100A |
|
COOLING MODULE |
F37 |
MULTI 60A |
|
B+ |
F38 |
MULTI 60A |
|
SPARE |
F39 |
MULTI 60A |
|
B+ |
F40 |
MULTI 50A |
|
VPC |
F41 |
MULTI 40A |
|
SPARE |
F42 |
MULTI 40A |
|
PSD |
F43 |
MULTI 40A |
|
PSD |
F44 |
MULTI 40A |
|
TRAILER |
F45 |
MULTI 30A |
|
RESERVE |
F46 |
|
|
RESERVE |
F47 |
|
|
RESERVE |
F48 |
|
|
B+ |
F49 |
S/B LP 50A |
|
EBB |
F50 |
S/B LP 50A |
|
AMS |
F51 |
MICRO 10A |
|
AAF |
F52 |
MICRO 10A |
|
IG3 |
F53 |
MICRO 25A |
|
VPC |
F54 |
MICRO 20A |
|
VPC |
F55 |
MICRO 20A |
|
EOP |
F56 |
S/B LP 30A |
|
HEATED MIRROR |
F57 |
MICRO 10A |
|
RESERVE |
F58 |
|
|
MDPS |
F59 |
MULTI 80A |
|
B+ |
F60 |
S/B LP 60A |
|
B+ |
F61 |
S/B LP 50A |
|
HEAD LAMP LH |
F62 |
MICRO 20A |
|
HEAD LAMP RH |
F63 |
MICRO 20A |
|
RESERVE |
F64 |
|
|
RESERVE |
F65 |
|
|
CHARGER |
F66 |
MICRO 10A |
|
REAR HEATED |
F67 |
S/B LP 40A |
|
LDC |
F68 |
MULTI 200A |
|
BLOWER |
F69 |
S/B LP 50A |
|
IEB |
F70 |
S/B LP 40A |
|
TRAILER |
F71 |
MICRO 20A |
|
TRAILER |
F72 |
MICRO 20A |
|
COOLING MODULE |
F73 |
MICRO 15A |
|
COOLING MODULE |
F74 |
MICRO 15A |
|
IEB |
F75 |
S/B LP 60A |
|
BLOWER RR |
F76 |
S/B LP 40A |
1. MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

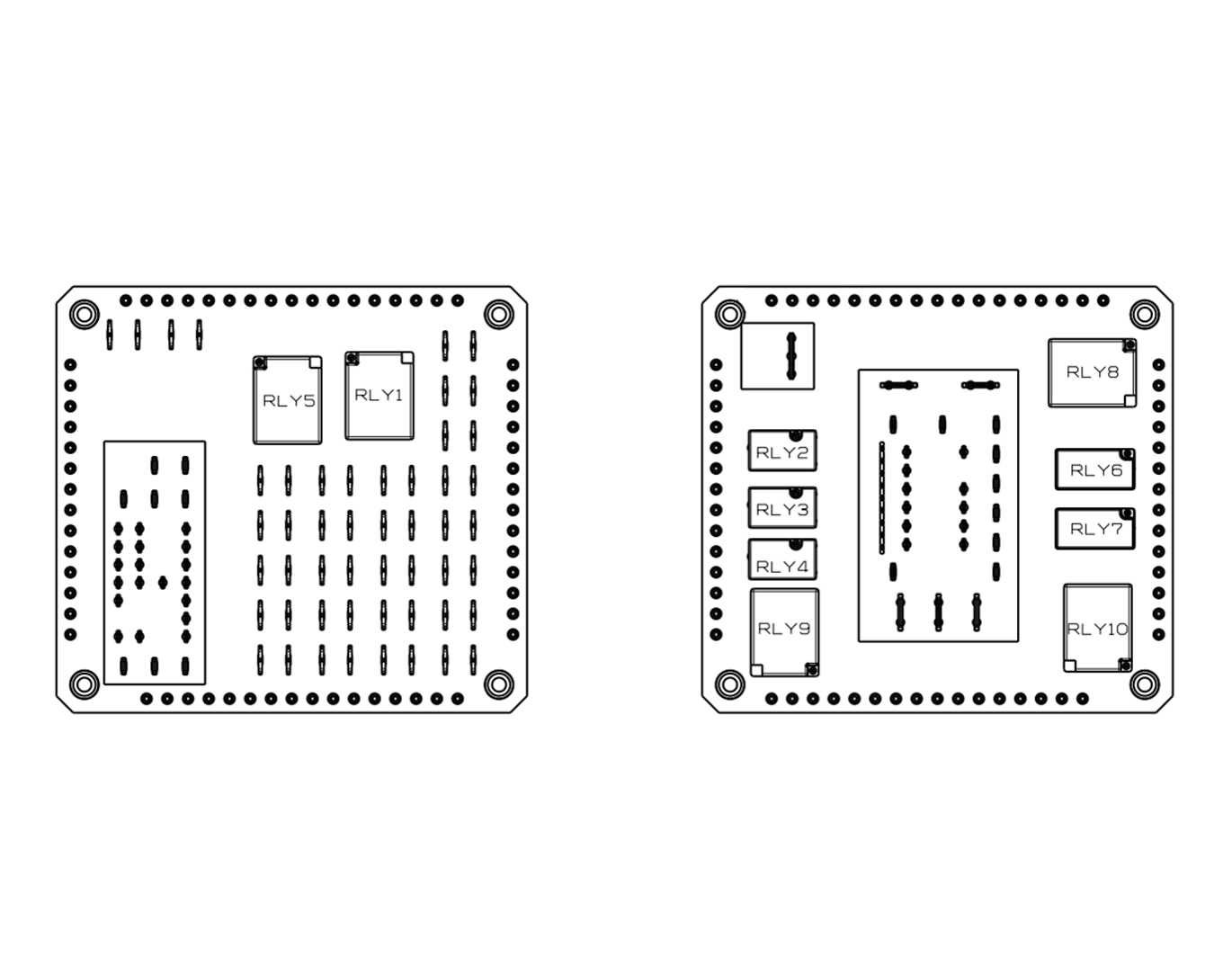

Refer to the following table for the relay type.
|
Fuse Name |
Position |
Fuse rating |
|---|---|---|
|
BLOWER |
RLY1 |
H/C MICRO 4P |
|
WALK THROUGH |
RLY2 |
H/C MICRO 4P |
|
V2H |
RLY3 |
H/C MICRO 4P |
|
IG3 |
RLY4 |
H/C MICRO 4P |
|
CHARGER LOCK |
RLY5 |
H/C MICRO 5P |
|
CHARGER UNLOCK |
RLY6 |
H/C MICRO 5P |
|
RESERVE |
RLY7 |
|
|
WIPER RR |
RLY8 |
H/C MICRO 5P |
|
BLOWER |
RLY9 |
3725 MINI 4P |
|
REAR HEATED |
RLY10 |
3725 MINI 4P |
|
RESERVE |
RLY11 |
|
Fuse Name |
Position |
Fuse rating |
|---|---|---|
|
IG3 |
RLY1 |
PCB 6P |
|
RESERVE |
RLY2 |
PCB 5P |
|
HORN |
RLY3 |
PCB 5P |
|
B/ALARM HORN |
RLY4 |
PCB 5P |
|
WIPER FRT |
RLY5 |
PCB 6P |
|
WIPER FRT LO |
RLY6 |
PCB 5P |
|
WIPER FRT HI |
RLY7 |
PCB 5P |
|
RESERVE |
RLY8 |
PCB 6P |
|
POWER ON |
RLY9 |
PCB 6P |
|
ACC |
RLY10 |
PCB 6P |
