Inner panel fuse replacement

  1. Press the EV button to the OFF position and turn all other switches off.

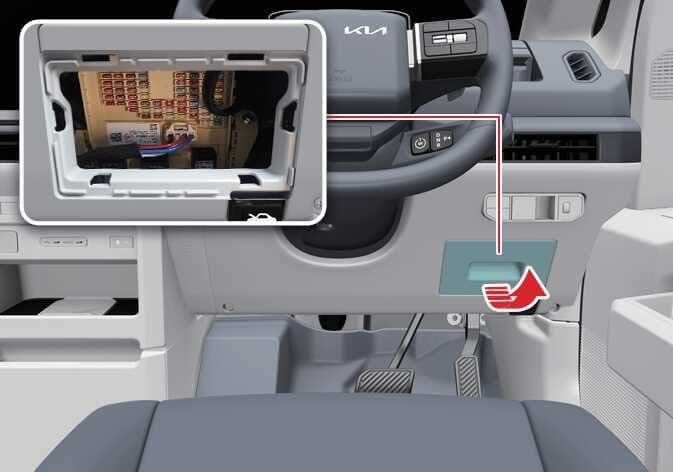

  2. Open the fuse panel cover.

    OSW075012R

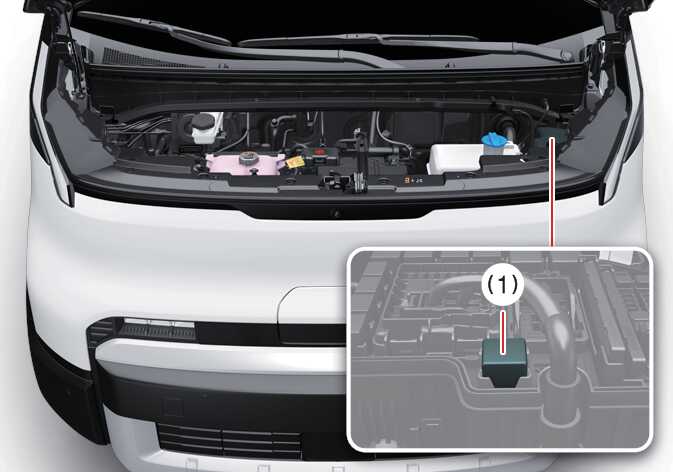

  3. Pull the suspected fuse straight out. Use the removal tool provided in the main fuse box in the motor compartment.

    OSW075013R

    (1) Fuse replacement clip

  4. Check the removed fuse; replace it if it is blown.

    Spare fuses are provided in the instrument panel fuse panel (or in the motor compartment fuse panel).

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

TIP

  • If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.

  • If it fits loosely, consult a professional workshop. Kia recommends to consult an authorised Kia dealer/service partner.

  • If the headlights or taillights, stoplights, day time running lights (DRL) do not work and the fuses are OK, consult a professional workshop. Kia recommends to consult an authorised Kia dealer/service partner.
