The wipers and washers remove foreign substances from the windscreen and rear window, helping to maintain visibility.

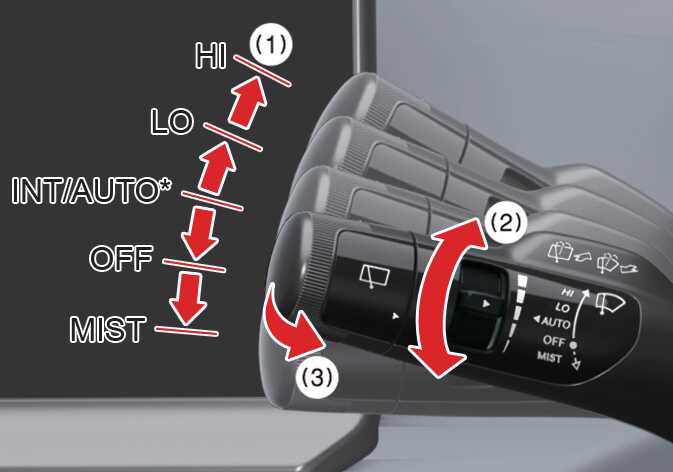

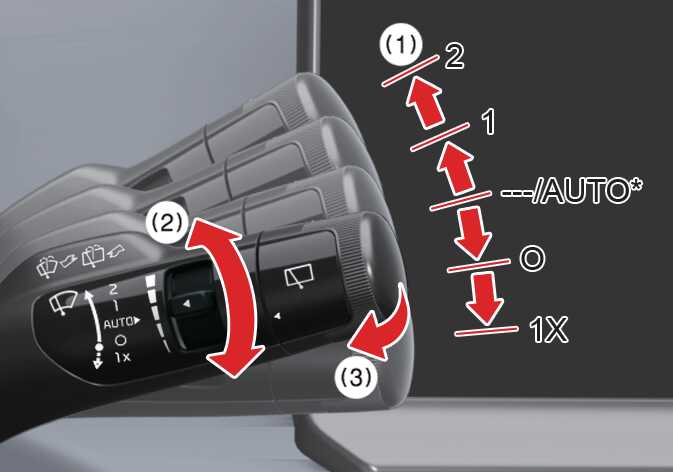

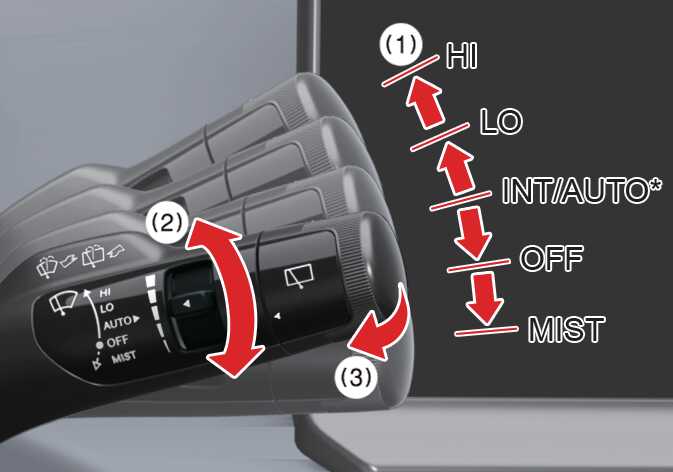

1. Wiper speed control

   • MIST/1x – Single wipe

   • OFF/0 – Off

   • INT/--- – Intermittent wipe

     AUTO* - Auto control wipe

   • LO/1 – Low wiper speed

   • HI/2 – High wiper speed

2. Intermittent control wipe time adjustment/Auto control wipe time adjustment*

3. Wash with brief wipes

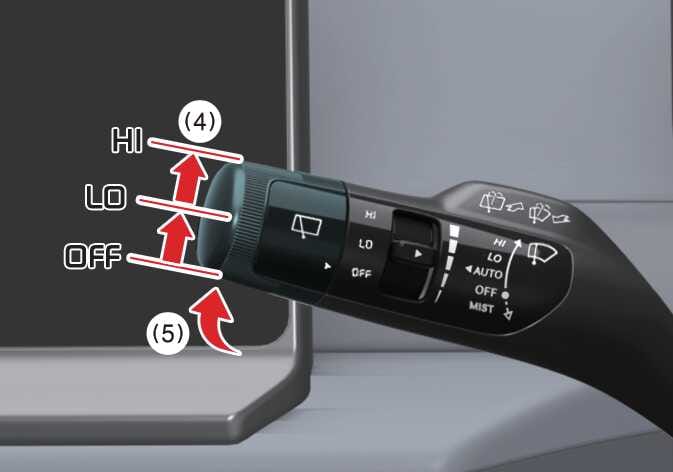

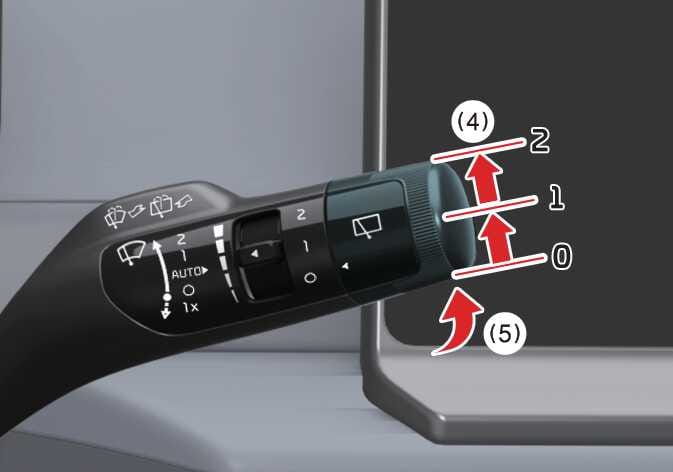

4. Rear wiper/washer control*

   • HI/2 - Continuous wipe

   • LO/1 - Intermittent wipe

   • OFF/0 - Off

5. Wash with brief wipes (rear)*

if equipped

Windscreen wipers

Operate as follows when the vehicle is in POWER ON or DRIVE READY position.

• MIST/1x: For a single wiping cycle, move the lever to this position and release it. The wipers will operate continuously if the lever is held in this position.

• OFF/0: Wiper is not in operation

• INT/---: Wiper operates intermittently at the same wiping intervals. Use this mode in light rain or mist. To vary the speed setting, turn the speed control knob.

• LO/1: Normal wiper speed

• HI/2: Fast wiper speed

NOTE

If there is heavy accumulation of snow or ice on the windscreen, defrost the windscreen for about 10 minutes, or until the snow and/or ice is removed before using the windscreen wipers to ensure proper operation. If you do not remove the snow and/or ice before using the wiper and washer, it may damage the wiper and washer system.

TIP

If you operate the wipers whilst driving on snowy roads, the wipers may stop due to snow buildup on your windscreen. This is normal and not a failure because it is one of our safety features to prevent vehicle accidents and wiper damage from overloading the wiper motor. If the wipers stop, remove snow accumulated on the top or bottom of windscreen before using them.
