Operating rear window wiper and washer switch (For passenger van)

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever.

  • Turn the switch to the desired position to operate the rear wiper and washer.

    Figure 1. Type A
    OSW035513L

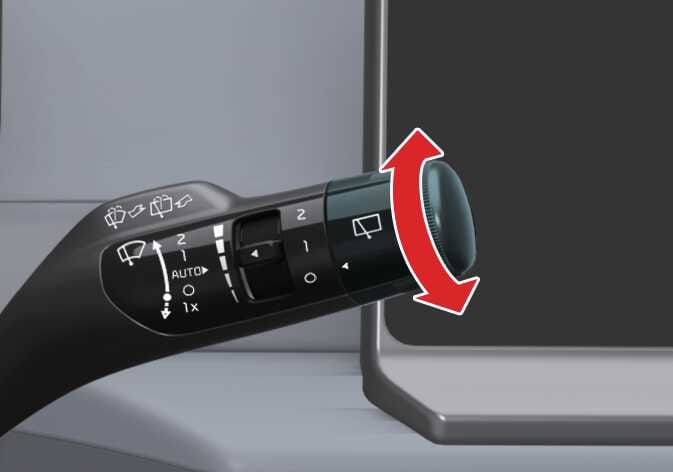

    Figure 2. Type B
    OSW035514L

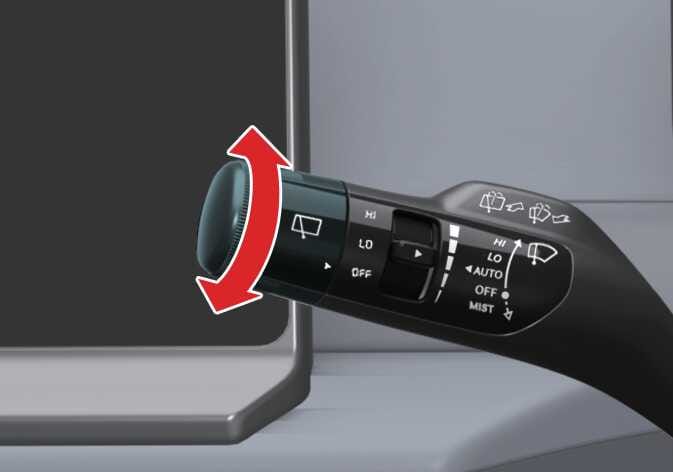

    Figure 3. Type C
    OSW035513R

    • HI/2 - Normal wiper operation

    • LO/1 - Intermittent wiper operation

    • OFF/0 - Wiper is not in operation

  • Push the lever away from you to spray rear washer fluid and to run the rear wipers 1–3 cycles.

    Figure 4. Type A
    OSW035515L

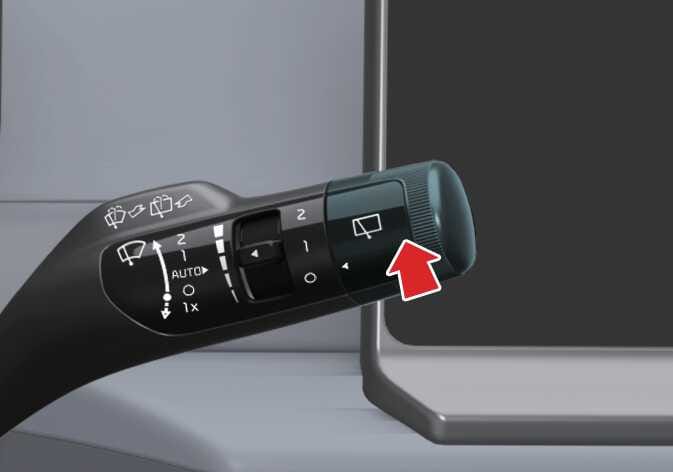

    Figure 5. Type B
    OSW035516L

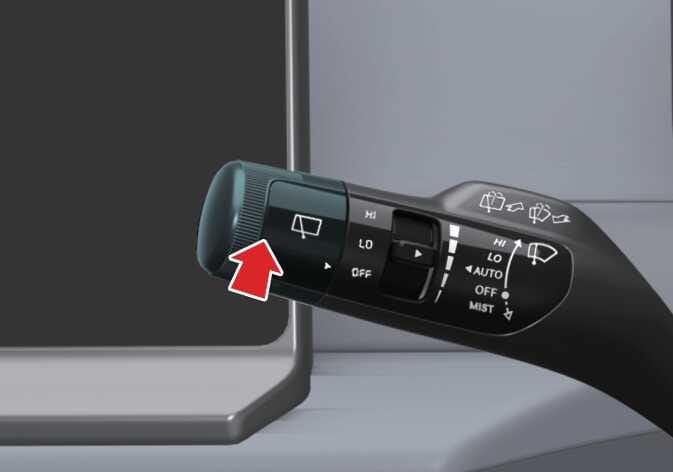

    Figure 6. Type C
    OSW035515R

The spray and wiper operation will continue until you release the lever.

When the front wiper is activated and the gear is switched to (R) position, the rear wiper will be activated once to provide better visibility.
