Driver's side fuse panel

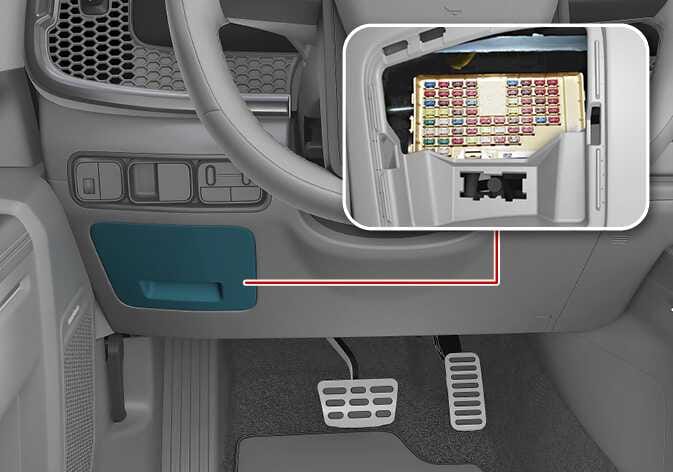

2026 Kia Tasman driver's side fuse panel image. The panel cover on the lower dashboard left of the steering wheel is highlighted in teal. A red line connects it to an inset showing the internal fuse block and puller tool. Explains the location and internal view of the fuse panel.
N_TK25G014_1

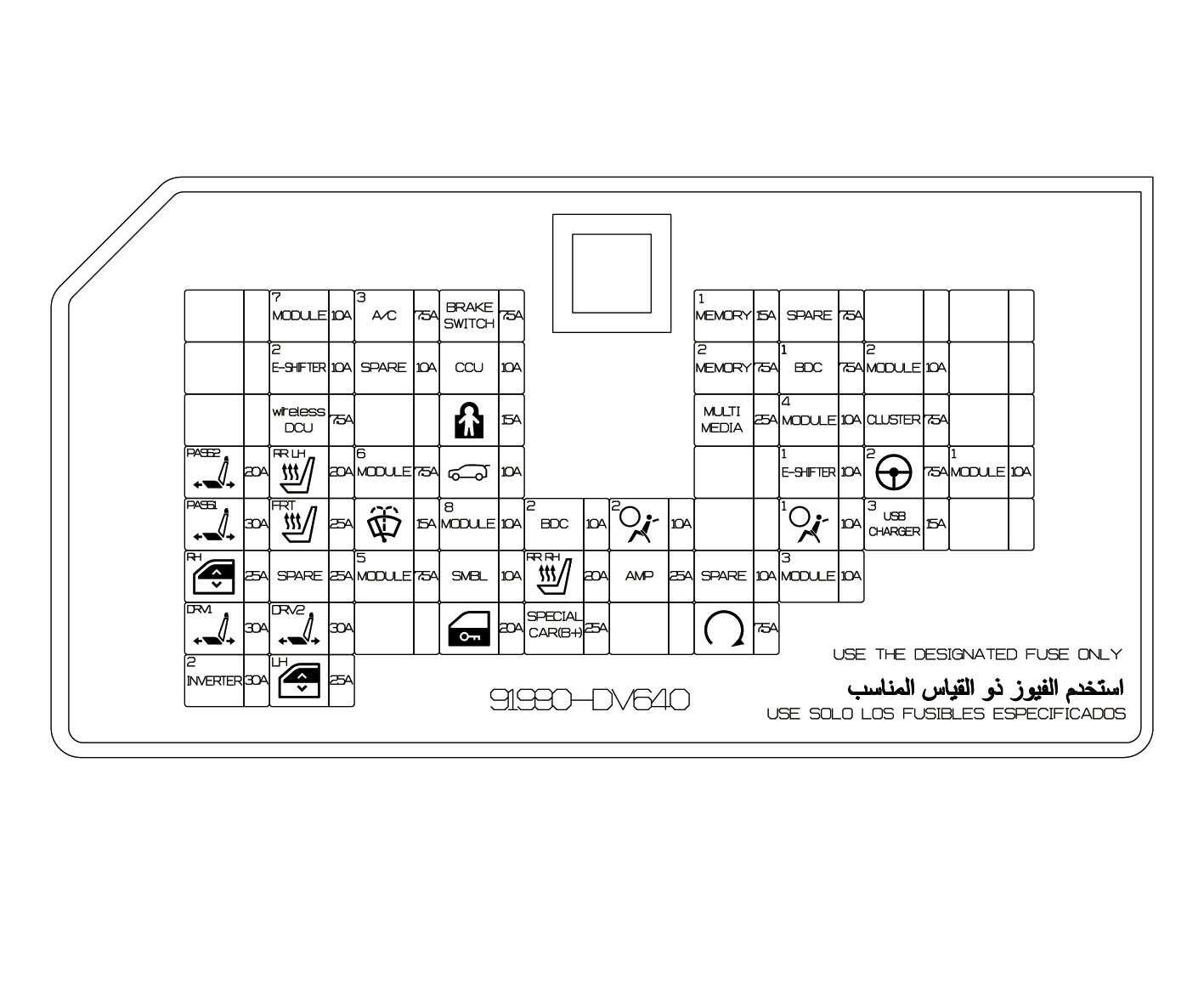

2026 Kia Tasman driver's side fuse panel diagram image. The schematic displays the grid layout of fuses with labels like MODULE, A/C, and MEMORY, along with amperage ratings such as 10A and 15A. Icons indicate circuits for heated seats and steering wheel. Explains the fuse arrangement for identification and replacement.
N_TK25G001_E

PDC Block

Fuse Name

Symbol

Fuse Rating

Circuit Protected

RESERVE

-

15A

Not Used

MODULE7

2026 Kia Tasman MODULE7 fuse icon. The image displays the text 'MODULE' with a small number '7' at the top left. This symbol identifies the fuse for the Clutch Pedal PRAC (Parking Release Actuator Controller).

10A

Clutch Pedal PRAC (Parking Release Actuator Controller)

A/C3

2026 Kia Tasman A/C3 fuse icon. The icon displays the text 'A/C' with a small number '3' in the upper left corner. It identifies the fuse protecting the air conditioning control circuits.

7.5A

DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), DATC Controller, PM Sensor (Particle Matter Sensor)

BRAKE SWITCH

2026 Kia Tasman Brake Switch symbol. The image displays the text 'BRAKE' stacked above the text 'SWITCH'. It identifies the fuse protecting the brake switch circuit.

7.5A

BDC (Body Domain Controller), Stop Lamp Switch

MEMORY1

2026 Kia Tasman MEMORY 1 fuse label image. The number '1' is displayed above the text 'MEMORY'. It identifies the fuse for the memory system.

15A

ccNC Keyboard (connected car Navigation Cockpit Keyboard), Mood Lamp Unit & Mood Lamp, Cluster, USB Jack, WPC (Wireless Power Charger), ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), Rear Corner Radar

SPARE

2026 Kia Tasman SPARE icon. The text 'SPARE' is displayed in uppercase letters. It indicates the symbol for a spare fuse in the fuse panel.

7.5A

SPARE

RESERVE

-

10A

Not Used

RESERVE

-

10A

Not Used

RESERVE

-

10A

Not Used

E-SHIFTER2

2026 Kia Tasman E-SHIFTER symbol icon. The image displays the text 'E-SHIFTER' with a superscript number 2. It indicates the fuse protecting the electronic shifter circuit.

10A

SBW Lever (Shift By Wire Lever)

SPARE

2026 Kia Tasman SPARE icon. The text 'SPARE' is displayed in uppercase letters. It indicates the symbol for a spare fuse in the fuse panel.

10A

SPARE

CCU

2026 Kia Tasman CCU icon. The image displays the text 'CCU'. It serves as a symbol to identify the fuse protecting the CCU circuit in the driver's side fuse panel.

10A

CCU (Communication Central Unit)

MEMORY2

2026 Kia Tasman Memory symbol icon. The text 'MEMORY' is displayed with a small number '2' at the top left. This symbol identifies the fuse protecting the memory system circuit.

7.5A

DATC_CONTROLLER (Dual Automatic Temperature Controller), DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), BDC (Body Domain Controller)

BDC1

2026 Kia Tasman BDC symbol icon. The image displays the text 'BDC'. This symbol identifies the Body Domain Controller in the driver's side fuse panel.

7.5A

BDC (Body Domain Controller)

MODULE2

2026 Kia Tasman Module 2 fuse symbol icon. The image displays the text 'MODULE' with a small number '2' positioned at the top left. This symbol identifies the Module 2 fuse in the fuse panel.

10A

CCU (Communication Central Unit), e-CALL, DCU (emergency-CALL Data Connectivity Unit), DAU (Door Area Unit), Stop Lamp Switch

RESERVE

-

10A

Not Used

RESERVE

-

10A

Not Used

wirless DCU

2026 Kia Tasman Wireless DCU symbol icon. The text 'wireless' is displayed above the text 'DCU'. It identifies the fuse corresponding to the wireless control unit.

7.5A

e-CALL, DCU (emergency-CALL Data Connectivity Unit)

RESERVE

-

10A

Not Used

CHILD LOCK

2026 Kia Tasman occupant detection symbol icon. A white human figure silhouette is centered inside a black, arch-shaped background. It indicates the occupant detection or interior monitoring system.

15A

Power Child Lock/Unlock

MULTIMEDIA

2026 Kia Tasman Multimedia icon. The image displays the text 'MULTI' stacked above 'MEDIA'. This symbol identifies the fuse protecting the multimedia system circuits.

25A

ccNC (connected car Navigation Cockpit)

MODULE4

2026 Kia Tasman 4 MODULE fuse symbol. The image displays the text '4 MODULE'. It identifies the fuse for the module 4 circuit in the driver's side fuse panel.

10A

WPC (Wireless Power Charger), TGS Lever Indicator (Transmission Gear Shift Lever Indicator), OBD (On Board Diagnosis), MTC (Manual Temperature Control), DATC (Dual Automatic Temperature Control), ECM (Electronic Chromic Mirror), ICC UNIT (In Cabin Camera Unit), ccNC (connected car Navigation Cockpit), DATC_CONTROLLER (Dual Automatic Temperature Controller), CDU (Climate Display Unit), HLLD SW (Head Lamp Leveling Device Switch), WPC (Wireless Power Charger), PDCex (Power-net Domain Controller extended), External Amplifier (Harman/Kardon), Rear Seat Warmer Switch, LH/RH IMS ECU (Integrated Memory Seat ECU), Driver Seat Warmer/Ventilation Switch, Passenger Seat Warmer/Ventilation Switch, HLLD Actuator LH/RH (Head Lamp Leveling Device Actuator LH/RH)

CLUSTER

2026 Kia Tasman CLUSTER fuse symbol image. The text 'CLUSTER' is displayed in uppercase letters. This symbol identifies the fuse protecting the instrument cluster circuit.

7.5A

Cluster

RESERVE

-

10A

Not Used

P/SEAT PASS2

2026 Kia Tasman PASS2 fuse symbol icon. It displays a side view of a seat with a horizontal double-headed arrow below it and the text 'PASS2'. It indicates the fuse protecting the passenger seat sliding adjustment circuit.

20A

Passenger Power Seat and Lumbar Support

S/HEATER RR LH

2026 Kia Tasman Rear Right Seat Heater icon. The image shows a black outline of a seat with three wavy vertical arrows rising from the seat cushion, indicating heat, with the text 'RR' located to the left. It signifies the fuse or circuit related to the rear right seat warmer operation.

20A

Rear Seat LH Warmer

MODULE6

2026 Kia Tasman MODULE 6 fuse symbol icon. The image displays the number '6' positioned at the top left of the text 'MODULE'. This symbol identifies the fuse corresponding to the Module 6 circuit in the fuse panel.

7.5A

AC Inverter Power Outlet (Console), AC Inverter ECU , PDCex (Power-net Domain Controller extend), P_LBM (Parking Lithium Battery Module), AC Inverter Power Outlet (Bed)

TAILGATE OPEN

2026 Kia Tasman tailgate open symbol icon. A black outline icon showing the side profile of a vehicle with the rear tailgate open. Indicates the symbol for the tailgate system fuse.

10A

Tailgate Latch Actuator

RESERVE

-

10A

Not Used

E-SHIFTER1

2026 Kia Tasman E-SHIFTER symbol image. The text 'E-SHIFTER' is displayed with a superscript number '1' on the left. This symbol identifies the fuse associated with the electronic shifter system.

10A

SBW Lever (Shift By Wire Lever), PRAC (Parking Release Actuator Controller)

MDPS2

2026 Kia Tasman steering wheel icon. The image displays a black symbol of a steering wheel with three spokes. It identifies the fuse protecting the circuit for steering-related components.

7.5A

C-MDPS (Column-Motor Driven Power Steering)

MODULE1

2026 Kia Tasman Module 1 fuse icon. The icon displays the text 'MODULE' with a superscript number '1' on the left. It identifies the fuse protecting the Module 1 circuit.

10A

e-CALL DCU (emergency-CALL Data Connectivity Unit), BDC (Body Domain Controller), CCU (Communication Central Unit), ccNC (connected car Navigation Cockpit), ccNC Keyboard (connected car Navigation Cockpit Keyboard), PRAC (Parking Release Actuator Controller), External Amplifier (Harman/Kardon), ADAS Parking ECU (Advanced Driver Assistance System Parking ECU)

P/SEAT PASS1

2026 Kia Tasman PASS1 fuse symbol icon. The image displays a stylized seat icon with a horizontal double-headed arrow below the cushion, indicating forward and backward adjustment, accompanied by the text 'PASS1'. It identifies the fuse related to the passenger seat sliding adjustment function.

30A

Passenger Power Seat and Lumbar Support

S/HEATER FRT

2026 Kia Tasman Front Seat Heater icon. The image shows a side view of a seat with three wavy arrows pointing upward and the text 'FRT'. It indicates the fuse related to the front seat heating function.

25A

Driver and Passenger Seat Warmer/Ventilation

WASHER

2026 Kia Tasman Windshield Washer icon. The symbol features a windshield outline with a wiper arm and dashed water spray lines above it. It identifies the fuse corresponding to the windshield washer system.

15A

Washer Motor

MODULE8

2026 Kia Tasman Module 8 fuse icon. The image displays the text 'MODULE' with the number '8' positioned at the top left corner. It identifies the fuse corresponding to Module 8 in the fuse panel.

10A

OBD (On Board Diagnosis), ICC UNIT (In Cabin Camera Unit), Rain Sensor, SEAT_DRIV Driver and Passenger Outside Handle, Lamp Driver and Passenger Puddle Lamp, Canopy, PDCex (Power-net Domain Controller extend), IMS Seat, ECU (Integrated Memory System Seat ECU)

BDC2

2026 Kia Tasman BDC symbol icon. The image displays the stylized text \'BDC\' with the number \'2\' in the upper left corner. It identifies the BDC component in the driver's side fuse panel table.

10A

Ignition Switch, BDC (Body Domain Controller), BLE MASTER (Bluetooth Low Energy MASTER), BLE SLAVE (Bluetooth Low Energy SLAVE), UWB (Ultra Wide Band), DAU (Door Area Unit), Driver and Passenger Outside Handle Touch Type, IMS Outside Mirror, ECU (Integrated Memory System Outside Mirror ECU), ATM Solenoid (Auto TransMission Solenoid)

AIR BAG2

2026 Kia Tasman Airbag symbol icon. A black icon depicting a seated figure with a circle representing an airbag in front. Indicates the fuse protecting the airbag system circuit.

10A

Airbag Control Unit

RESERVE

-

10A

Not Used

AIR BAG1

2026 Kia Tasman Airbag icon. The image displays a symbol of a seated person with a circle representing an airbag. This symbol identifies the fuse protecting the airbag system.

10A

Occupant Detection System, Airbag Control Unit

USB CHARGER3

2026 Kia Tasman USB Charger fuse symbol. The image displays the text 'USB' positioned above 'CHARGER', with a small number '3' to the left. This symbol identifies the fuse protecting the USB charging circuit.

15A

USB Charger (Seat/Crash Pad)

RESERVE

-

10A

Not Used

P/WINDOW RH

2026 Kia Tasman Power Window RH icon. The symbol features a car window outline containing vertical arrows pointing up and down, accompanied by 'RH' text on the left. It identifies the fuse protecting the right-hand power window circuit.

25A

Power Window Motor RH

SUNROOF

-

25A

Sunroof

MODULE5

2026 Kia Tasman Module 5 fuse symbol icon. The icon displays the number '5' in superscript positioned to the left of the text 'MODULE'. It identifies the fuse corresponding to the module 5 circuit on the driver's side fuse panel.

7.5A

BDC (Body Domain Controller)

SMBL

2026 Kia Tasman SMBL symbol image. The image displays the text 'SMBL' in black capital letters. It indicates the label for a specific fuse or component on the driver's side fuse panel.

10A

SMBL (Side Mounted Bed Light)

S/HEATER RR RH

2026 Kia Tasman Rear Right Seat Heater icon. The image shows a black outline of a seat with three wavy vertical arrows rising from the seat cushion, indicating heat, with the text 'RR' located to the left. It signifies the fuse or circuit related to the rear right seat warmer operation.

20A

Rear Seat RH Warmer

AMP

2026 Kia Tasman AMP icon. The text 'AMP' is displayed in uppercase letters. This symbol identifies the fuse for the amplifier.

25A

External Amplifier (Harman/Kardon)

SPARE

2026 Kia Tasman SPARE icon. The text 'SPARE' is displayed in uppercase letters. It indicates the symbol for a spare fuse in the fuse panel.

10A

SPARE

MODULE3

2026 Kia Tasman fuse panel symbol image. The image displays the text '3 MODULE' with the number 3 in superscript at the top left. This symbol identifies the fuse location on the driver's side fuse panel.

10A

Console Switch SBC type (Shift By Cable type), Front View Camera (Lane Departure Warning System), ADAS Driving ECU (Advanced Driver Assistance System Driving ECU), Crash Pad Switch Gain Switch (Trailer Brake Control Switch), Front/Rear Corner Radar Floor Console Switch (SBW only), DCU (Dosing Control Unit), ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), AWD/e-LD ECU (All Wheel Drive/e-Limited Differential ECU), Clutch Pedal Front Radar (Forward Collision Avoid)

P/SEAT DRV1

2026 Kia Tasman PASS1 fuse symbol icon. The image displays a stylized seat icon with a horizontal double-headed arrow below the cushion, indicating forward and backward adjustment, accompanied by the text 'PASS1'. It identifies the fuse related to the passenger seat sliding adjustment function.

30A

Driver Power Seat and Lumbar Support

P/SEAT DRV2

2026 Kia Tasman DRV2 fuse symbol icon. The image displays a side view of a seat with the text 'DRV2' and horizontal arrows pointing left and right at the bottom. It identifies the fuse protecting the driver's seat adjustment circuit.

30A

Driver Power Seat and Lumbar Support

RESERVE

2026 Kia Tasman PASS1 fuse symbol icon. The image displays a stylized seat icon with a horizontal double-headed arrow below the cushion, indicating forward and backward adjustment, accompanied by the text 'PASS1'. It identifies the fuse related to the passenger seat sliding adjustment function.

10A

Not Used

DOOR LOCK

2026 Kia Tasman door lock symbol icon. The icon displays a stylized car door with a key symbol on the door panel. It identifies the fuse protecting the door lock system.

20A

Door Lock/Unlock Actuator, Fuel Lid, Motor Canopy and Rollcover (AUS)

SPECIAL CAR(B+)

2026 Kia Tasman SPECIAL CAR(B+) fuse symbol image. The text 'SPECIAL' is displayed on the upper line and 'CAR(B+)' on the lower line. Identifies the fuse for special vehicle circuits in the driver's side fuse panel.

25A

Canopy and Rollcover (AUS)

RESERVE

-

10A

Not Used

START

2026 Kia Tasman circular arrow icon. A black arrow symbol forming a circle in a clockwise direction. Indicates a function related to rotation or circulation.

7.5A

BDC (Body Domain Controller), Ignition Switch, Inhibit Switch SBC (Shift By Cable type), Engine Room Junition block P/N RLY, Start signal (ECU/BDC)

INVERTER2

2026 Kia Tasman Inverter symbol icon. It displays the text 'INVERTER' with a superscript number '2' on the left. This symbol identifies the fuse protecting the inverter circuit.

30A

AC Inverter ECU

P/WINDOW LH

2026 Kia Tasman Power Window LH icon. The icon displays a car window outline with upward and downward arrows inside, accompanied by 'LH' text on the left. It identifies the fuse protecting the left-hand power window circuit.

25A

Power Window Motor LH
