Engine compartment fuse panel
2026 Kia Tasman engine compartment fuse panel image. A red line indicates the location of the fuse panel in the engine bay. An inset view shows the detailed arrangement of fuses and relays next to the washer fluid reservoir. Explains the location and configuration of the engine compartment fuse panel.
N_TK25G018_1

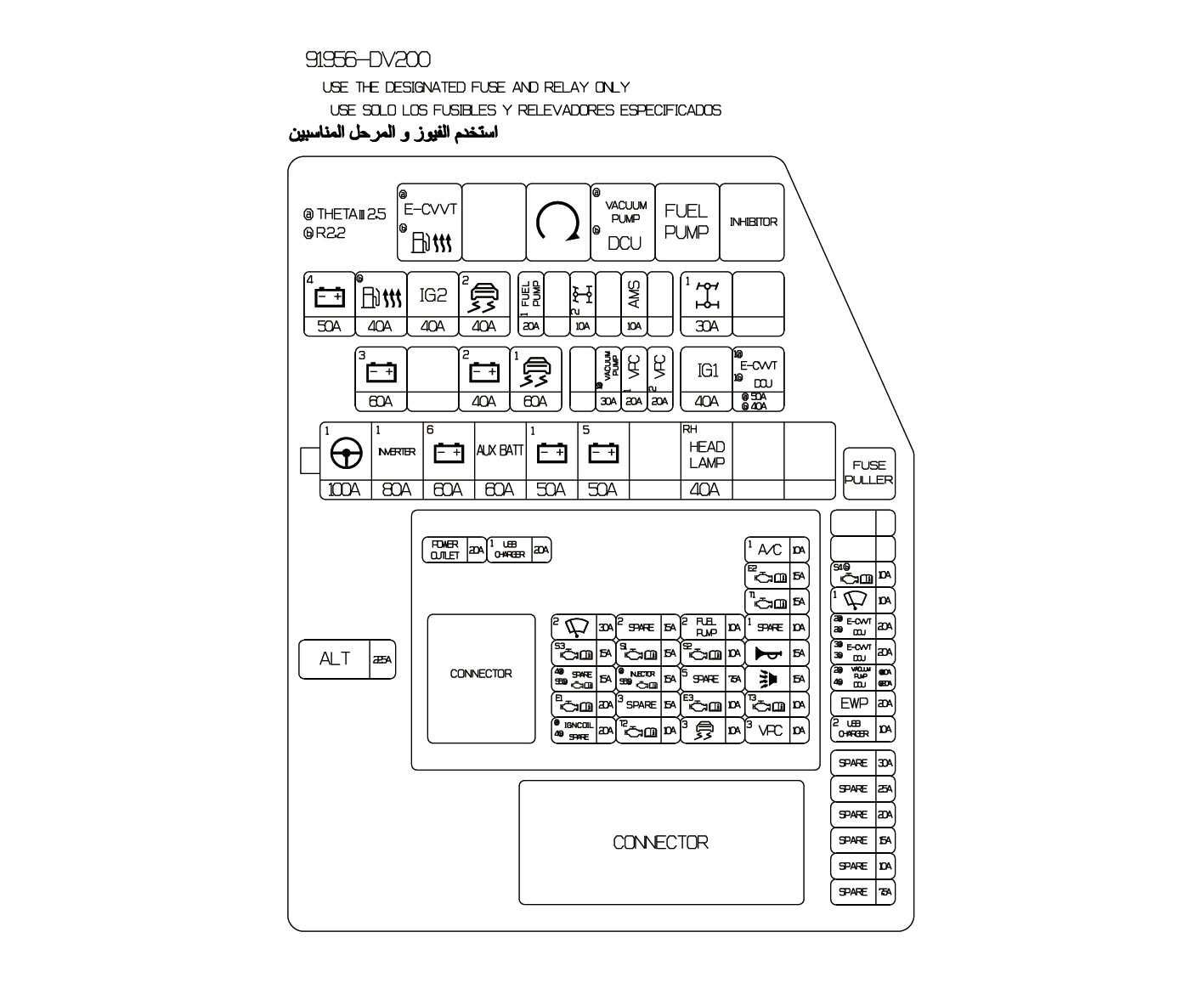

2026 Kia Tasman engine compartment fuse panel diagram image. The schematic illustrates the layout of fuses and relays labeled with names like Fuel Pump, Head Lamp, and Inverter, along with amperage ratings such as 30A and 50A. Explains the arrangement of the engine room junction block for maintenance.
N_TK25G002_E

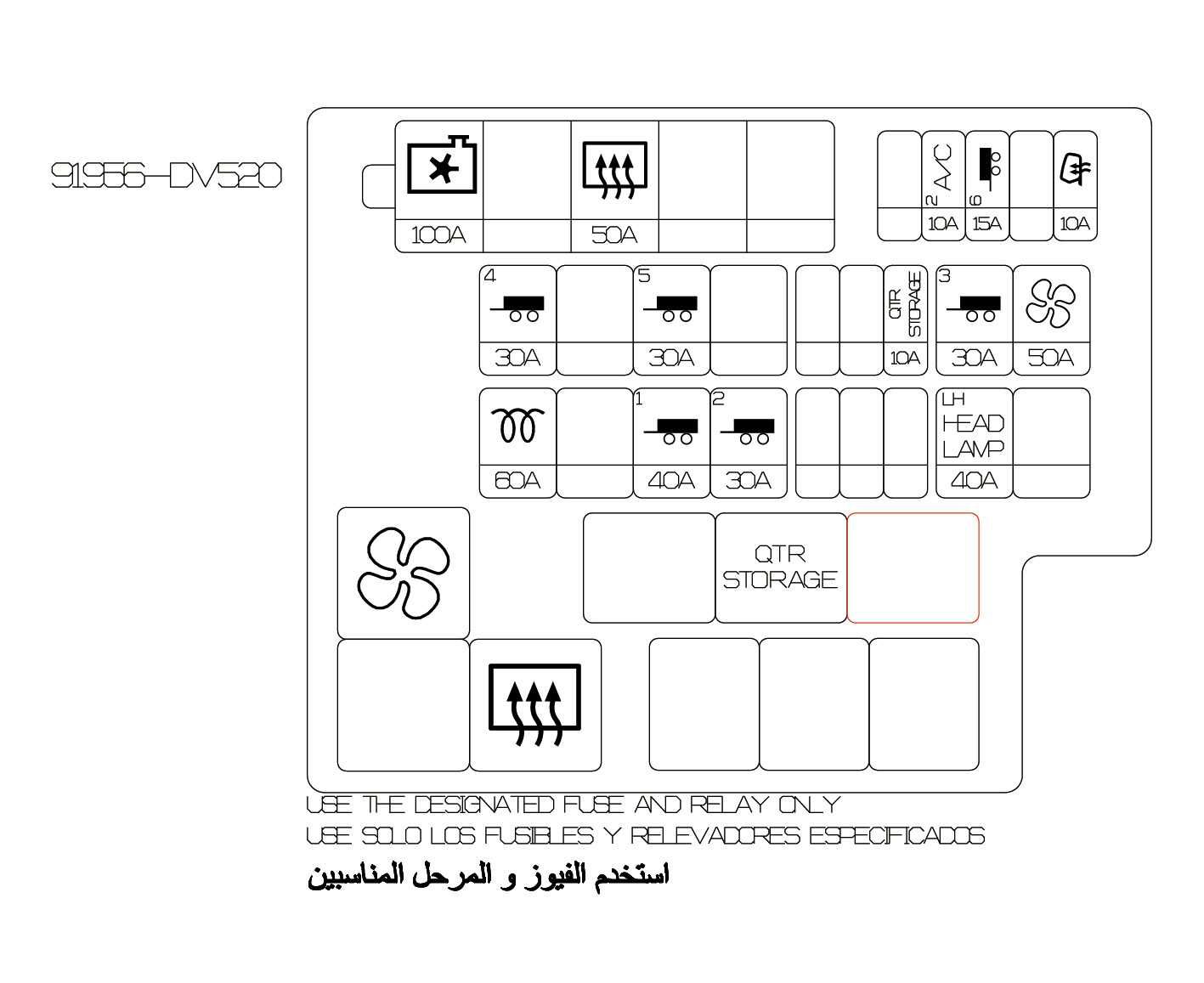

2026 Kia Tasman engine compartment fuse panel diagram image. The schematic illustrates the layout of fuses and relays with ratings such as 100A and 60A, including symbols for the battery, fan, and LH Head Lamp. Explains the configuration of the engine room junction block.
N_TK25G003_E

Engine Room Junction Block

Fuse Name

Symbol

Fuse Rating

Circuit Protected

B+ 4

2026 Kia Tasman B+ 4 fuse symbol icon. A rectangular battery icon showing negative and positive terminals with the number 4 on the left. Identifies the B+ 4 fuse in the engine compartment fuse panel.

S/B LP 50A

PDC (Power-net Domain Controller) - FUSE LIST : MULTIMEDIA, MEMORY 1/2, CHILD LOCK, BDC2, BRAKE SWITCH, CCU, SPECIAL CAR (B+), S/HEATER RR RH, DR LOCK, TAILGATE OPEN

FUEL HEATER

2026 Kia Tasman Fuel Heater symbol icon. A fuel pump outline is shown on the left with three wavy vertical arrows pointing upwards on the right. Identifies the fuse for the fuel heater system in the engine compartment fuse panel.

S/B LP 40A

Fuel Heater

IG2

2026 Kia Tasman IG2 symbol icon. The text 'IG2' is displayed. Identifies the IG2 fuse in the engine compartment fuse panel.

S/B LP 40A

IG2 Power

VDC2

2026 Kia Tasman VPC symbol icon. The text 'VPC' is displayed with a small number 2 inside a square outline at the top left. This symbol identifies the VPC fuse in the engine room junction block.

S/B LP 40A

ESC/EPB (Electric Stabilty Control/Electric Parking Brake)

FUEL PUMP1

2026 Kia Tasman Fuel Pump fuse symbol icon. The text 'FUEL PUMP' is written in uppercase letters on two lines. Identifies the fuel pump fuse in the engine compartment fuse panel.

MICRO 20A

Fuel Pump Motor

RESERVE

-

-

Not Used

4WD2

2026 Kia Tasman 4WD symbol icon. A schematic diagram shows a vehicle chassis with four wheels and a central driveshaft, with the number 2 on the left. Identifies the 4WD system fuse in the engine compartment fuse panel.

MICRO 10A

AWD/e-LD ECU (All Wheel Drive/e-Limited Differential ECU)

RESERVE

-

-

Not Used

AMS

2026 Kia Tasman AMS symbol icon. The text 'AMS' is displayed in black letters. Identifies the AMS fuse in the engine compartment fuse panel.

MICRO 10A

Battery Sensor

RESERVE

-

-

Not Used

4WD1

2026 Kia Tasman 4WD symbol icon. A schematic icon showing the front and rear axles with wheels connected by a central driveshaft. Identifies the fuse related to the 4WD system in the engine compartment fuse panel.

S/B M 30A

AWD/e-LD ECU (All Wheel Drive/e-Limited Differential ECU)

RESERVE

-

-

Not Used

B+3

2026 Kia Tasman B+ 3 fuse symbol icon. A rectangular battery icon showing negative and positive terminals with the number 3 on the left. Identifies the B+ 3 fuse in the engine compartment fuse panel.

S/B LP 60A

PDC (Power-net Domain Controller) B+ - FUSE LIST : INVERTER2, P/SEAT DRV1, P/SEAT PASS1, P/WINDOW LH, P/WINDOW RH, S/HEATER FRT, MODULE7, P/SEAT DRV2, SUNROOF, P/SEAT PASS2, S/HEATER RR LH, wireless DCU, E-SHIFTER2

RESERVE

-

-

Not Used

B+2

2026 Kia Tasman B+ 2 fuse symbol icon. A rectangular battery icon showing negative and positive terminals with the number 2 on the left. Identifies the B+ 2 fuse in the engine compartment fuse panel.

S/B LP 40A

PDC (Power-net Domain Controller) - IPS (Head Lamp, Turn Signal Lamp, Tail Lamp, Brake Lamp, Back up Lamp, Front Fog Lamp)

VDC1

2026 Kia Tasman VPC symbol image. The text 'VPC' is displayed with a superscript number 1 on the left. Identifies the VPC component in the engine compartment fuse panel.

S/B LP 60A

ESC/EPB (Electric Stabilty Control/Electric Parking Brake)

RESERVE

-

-

Not Used

VACUUM PUMP1

2026 Kia Tasman Vacuum Pump fuse symbol icon. The image displays the number 10 enclosed in a circle, indicating the amperage, with the text 'VACUUM PUMP' below. This symbol identifies the 10A fuse for the vacuum pump in the engine compartment fuse panel.

- MICRO 30A

Vacuum Pump

VPC1

2026 Kia Tasman VPC symbol image. The text 'VPC' is displayed with a superscript number 1 on the left. Identifies the VPC component in the engine compartment fuse panel.

MICRO 20A

VPC (Vehicle Platform Controller)

VPC2

2026 Kia Tasman VPC symbol icon. The text 'VPC' is displayed with a small number 2 inside a square outline at the top left. This symbol identifies the VPC fuse in the engine room junction block.

MICRO 20A

VPC (Vehicle Platform Controller)

IG1

2026 Kia Tasman IG1 fuse symbol icon. The text 'IG1' is displayed. Identifies the IG1 fuse in the engine compartment fuse panel.

S/B LP 40A

PDC (Power-net Domain Controller) IG1 - FUSE LIST : AIR BAG1, A/BAG IND, CLUSTER, BDC1, MDPS2, MODULE2, MODULE3, MODULE4, E-SHIFTER1 ITBC (Integrated Trailer Brake Controller) PDC ACC & ERJB ACC (after ACC Relay) - PDC FUSE LIST : USB CHARGER3, MODULE1 - ERJB FUSE LIST : POWER OUTLET, USB CHARGER1

DCU E-CVVT

2026 Kia Tasman E-CWT and DCU fuse label image. The image displays the number 1 followed by a circled 'a' next to the text 'E-CWT', and below it, the number 1 followed by a circled 'b' next to the text 'DCU'. This identifies specific circuit variants or notes for the E-CWT and DCU components in the engine compartment fuse panel.

S/B LP 40A S/B LP 50A

DCU (Dosing Control Unit) E-CVVT (Electronic-Continuously Variable Valve Timming)

MDPS1

2026 Kia Tasman steering wheel symbol icon. A steering wheel icon with the number 1 on the left. Identifies the fuse for the steering system.

MULTI 100A

C-MDPS (Column-Motor Driven Power Steering)

INVERTER1

2026 Kia Tasman Inverter 1 fuse symbol icon. The text 'INVERTER' is displayed with a superscript number '1' at the top left. Identifies the Inverter 1 fuse in the engine compartment fuse panel.

MULTI 80A

AC Inverter 400W

B+6

2026 Kia Tasman B+ 6 fuse symbol icon. A rectangular battery icon showing negative and positive terminals with the number 6 on the left. Identifies the B+ 6 fuse in the engine compartment fuse panel.

MULTI 60A

PCB BLOCK Power

AUX BATT

2026 Kia Tasman AUX BATT symbol icon. The text 'AUX BATT' is displayed in uppercase letters. Identifies the auxiliary battery fuse in the engine compartment fuse panel.

MULTI 60A

P-LBM (Parking-Lithum Battery Module)

B+1

2026 Kia Tasman B+ 1 fuse symbol icon. A rectangular battery icon showing negative and positive terminals with the number 1 on the left. Identifies the B+ 1 fuse in the engine compartment fuse panel.

MULTI 50A

PDC (Power-net Domain Controller) - IPS (Head Lamp, Turn Signal Lamp, Tail Lamp, Brake Lamp, Head Mount Stop Lamp, Dedicated DRL, Rear Fog Lamp, Interor Lamp, Steering Wheel Heated)

B+5

2026 Kia Tasman B+ 5 fuse symbol icon. A rectangular battery icon showing negative and positive terminals with the number 5 on the left. Identifies the B+ 5 fuse in the engine compartment fuse panel.

MULTI 50A

PDC (Power-net Domain Controller) - FUSE LIST : AMP, AIR BAG2, MODULE8, SMBL

RESERVE

-

MULTI 40A

Not Used

HEAD LAMP RH

2026 Kia Tasman RH HEAD LAMP fuse symbol icon. The text 'RH' is displayed at the top left, with 'HEAD' and 'LAMP' stacked vertically below it. Identifies the right-hand headlamp fuse in the engine compartment fuse panel.

MULTI 40A

Head Lamp RH

RESERVE

-

MULTI 30A

Not Used

RESERVE

-

MULTI 30A

Not Used

RESERVE

-

-

Not Used

RESERVE

-

-

Not Used

SENSOR4

2026 Kia Tasman S4 fuse symbol icon. The image displays an engine outline and an open book symbol with the letter 'i', labeled with 'S4' text. Identifies the S4 fuse in the engine compartment fuse panel.

MICRO 20A

GCU (Glow Control Unit), Water Temperature Sensor

WIPER FRT1

2026 Kia Tasman Wiper fuse symbol icon. An icon displaying a fan-shaped windshield with a wiper arm in the center. Identifies the fuse for the wiper system in the Engine Room Junction Block.

MICRO 10A

Wiper

DCU2 E-CVVT2

2026 Kia Tasman E-CWT and DCU fuse symbol icon. The image displays two fuse labels arranged vertically. The top label shows the number '20' enclosed in a square followed by the text 'E-CWT'. The bottom label shows the number '20' enclosed in a square followed by the text 'DCU'. This indicates the fuse rating and identification for the E-CWT and DCU circuits.

MICRO 20A

DCU (Dosing Control Unit) E-CVVT (Electronic-Continuously Variable Valve Timming)

DCU3 E-CVVT3

2026 Kia Tasman E-CVVT and DCU fuse symbol icon. The image displays two square fuse icons stacked vertically, each containing the number 30. The top icon is labeled 'E-CVVT' and the bottom icon is labeled 'DCU'. This indicates the 30A rating for these specific fuses in the engine room junction block.

MICRO 20A

DCU (Dosing Control Unit) E-CVVT (Electronic-Continuously Variable Valve Timming)

DCU4 VACUUM PUMP2

2026 Kia Tasman Vacuum Pump and DCU fuse symbol icon. The image displays the text 'VACUUM PUMP' next to a number 2 enclosed in a square, and 'DCU' next to a number 4 enclosed in a square. Identifies the symbols for the Vacuum Pump and DCU circuits in the engine compartment fuse panel.

MICRO 10A

DCU (Dosing Control Unit) Electric Vacuum Pump Power Monitoring (ESC)

EWP

2026 Kia Tasman EWP fuse symbol icon. The text 'EWP' is displayed. Identifies the Electric Water Pump fuse in the engine compartment fuse panel.

MICRO 20A -

Electric Water Pump

USB CHARGER2

2026 Kia Tasman USB Charger 2 fuse symbol icon. The icon displays the text 'USB' above 'CHARGER' with a superscript number '2' on the left. Identifies the USB Charger 2 fuse in the engine compartment fuse panel.

MICRO 10A

Console USB Chager

Relay(Engine Room Junction Block)

Fuse Name

Symbol

TYPE

Load

E-CVVT

FUEL HEATER

2026 Kia Tasman E-CVVT and fuel heater symbol image. Shows 'E-CVVT' text labeled 'a' and a fuel pump icon with wavy arrows labeled 'b'. Identifies symbols for E-CVVT and fuel heater in the fuse panel.

MICRO Relay

E-CVVT (Electronic-Continuously Variable Valve Timming)

Fuel Heater

RESERVE

-

-

Not Used

START

2026 Kia Tasman circular arrow symbol icon. A black circular arrow icon pointing clockwise is displayed. This symbol identifies the fuse for the air recirculation system.

MICRO Relay

Start Solenoid

VACUUM PUMP

DCU

2026 Kia Tasman Vacuum Pump and DCU label image. Shows circled letter 'a' next to 'VACUUM PUMP' and 'b' next to 'DCU'. Identifies the components for the corresponding fuses in the engine compartment panel.

MICRO Relay

Vacuum Pump

DCU (Dosing Control Unit)

FUEL PUMP

2026 Kia Tasman Fuel Pump fuse symbol icon. The text 'FUEL PUMP' is written in uppercase letters on two lines. Identifies the fuel pump fuse in the engine compartment fuse panel.

MICRO Relay

Fuel Pump Motor

INHIBITOR

2026 Kia Tasman Inhibitor symbol icon. It displays the text 'INHIBITOR' in capital letters. Identifies the fuse protecting the inhibitor circuit in the engine compartment fuse panel.

MICRO Relay

P/N Relay (SBW only)

PCB Block

Fuse Name

Symbol

Fuse Rating

Circuit Protected

POWER OUTLET

2026 Kia Tasman POWER OUTLET symbol image. The text 'POWER OUTLET' is displayed in uppercase letters on two lines. Identifies the fuse corresponding to the power outlet in the engine compartment fuse panel.

MICRO 20A

Power Outlet

USB CHARGER1

2026 Kia Tasman USB charger fuse symbol icon. The text 'USB CHARGER' is displayed with the number '1' in the upper left corner. Identifies the USB charger fuse in the engine compartment fuse panel.

MICRO 20A

Console USB Charger

WIPER FRT2

2026 Kia Tasman Wiper 2 fuse symbol icon. A windshield icon with a wiper arm inside, accompanied by the number 2 on the left. Identifies the Wiper 2 fuse in the engine compartment fuse panel.

MICRO 30A

Wiper

SENSOR3

2026 Kia Tasman S3 fuse symbol icon. The text 'S3' is displayed above an engine outline icon and an open book icon with the letter 'i'. Identifies the S3 fuse in the engine compartment fuse panel.

MICRO 15A

RPCV (Rail Pressure Control Valve) Fuel Heater (Relay coil)

SENSOR5

2026 Kia Tasman fuse panel symbol image. The image displays the number '40' inside a square next to the text 'SPARE', and 'S50' inside a square next to an engine and open book icon. Identifies the spare and engine fuse symbols on the engine compartment fuse panel.

MICRO 15A

Particular Matter Sensor Front/Rear NOx Sensor

ECU1

2026 Kia Tasman E1 fuse symbol icon. The image displays the text 'E1' next to an engine outline and an open booklet symbol with the letter 'i'. Identifies the E1 fuse in the engine compartment fuse panel.

MICRO 20A

Engine Control Unit

IGN COIL

2026 Kia Tasman IGNCOIL and SPARE fuse symbol icon. The image displays the text 'IGNCOIL' with a spiral coil icon, and the text 'SPARE' preceded by the number 4 and a spiral coil icon. This symbol identifies the ignition coil and spare fuse circuits in the engine compartment fuse panel.

MICRO 20A

Ignition Coil

SPARE2

2026 Kia Tasman SPARE fuse symbol icon. The text 'SPARE' is displayed with the number 2 located at the top left corner. Identifies the spare fuse in the engine compartment fuse panel.

MICRO 15A

SPARE

SENSOR1

2026 Kia Tasman S1 fuse symbol icon. The text 'S1' appears next to an engine outline and an open book icon with the letter 'i'. Identifies the S1 fuse in the engine compartment fuse panel.

MICRO 15A

Oxygen Sensor Up/Down High Pressure Pump

INJECTOR SENSOR6

2026 Kia Tasman INJECTOR fuse symbol icon. The image displays the text 'INJECTOR' and 'S6' alongside an engine icon and an open book icon. Identifies the INJECTOR fuse in the engine compartment fuse panel.

MICRO 15A

Injector Oil Pump Solenoid Valve PTC Heater High Pressure Exhaust Gas Recirculation Bypass Valve Electonic-Varible Geometry Turbochager

SPARE3

2026 Kia Tasman spare fuse symbol icon. The text 'SPARE' is displayed with a small number 3 in the upper left corner. Identifies the spare fuse in the engine compartment fuse panel.

MICRO 15A

SPARE

TCU2

2026 Kia Tasman engine and manual symbol icon. The image displays an engine outline and an open book symbol with the letter 'i'. The text 'T2' is visible in the upper left corner. Identifies the fuse associated with the engine system in the engine compartment fuse panel.

MICRO 10A

Transmission Control Unit

FUEL PUMP2

2026 Kia Tasman Fuel Pump fuse symbol icon. The text 'FUEL PUMP' is displayed with the number 2 on the left. Identifies the Fuel Pump fuse in the engine compartment fuse panel.

MICRO 10A

Fuel Pump (Relay coil)

SENSOR2

2026 Kia Tasman S2 fuse symbol icon. The image displays the text 'S2' alongside an engine outline and an open book symbol with the letter 'i'. Identifies the S2 fuse in the engine compartment fuse panel.

MICRO 10A

Oil Level Sensor Lambda Sensor Up/Down Purge Control Solenoid Valve Variable Oil Pump Oil Control Valve Electric Thermostat Recirculation Control Valve Cooling Fan Stop Lamp Switch Diesel Filter Heater

SPARE5

2026 Kia Tasman 5A SPARE fuse symbol image. The text 'SPARE' is displayed with the number '5' in the upper left corner. This symbol indicates the rating and function of the 5A spare fuse in the fuse panel.

MICRO 7.5A

SPARE

ECU3

2026 Kia Tasman engine reference symbol icon. The image displays the text 'E3' alongside an engine outline and an open book symbol containing the letter 'i'. Identifies the engine system fuse and indicates referencing the manual.

MICRO 10A

Engine Control Unit

ESC3

2026 Kia Tasman ESC fuse symbol icon. A car icon with wavy lines underneath representing slippage is shown with the number 3 on the left. Identifies the fuse for the Electronic Stability Control system in the engine compartment fuse panel.

MICRO 10A

ESC/EPB (Electric Stabilty Control/Electric Parking Brake)

A/C1

2026 Kia Tasman A/C symbol icon. The text "A/C" is displayed with a small number "1" at the top left. Identifies the fuse for the air conditioning system in the engine compartment fuse panel.

MICRO 10A

Aircon Compressor

ECU2

2026 Kia Tasman E2 fuse symbol icon. The image shows an engine outline and an open book with the letter 'i', labeled 'E2'. Identifies the fuse for the engine control system in the engine compartment fuse panel.

MICRO 15A

Engine Control Unit

TCU1

2026 Kia Tasman engine manual reference symbol icon. An icon displaying an engine outline next to an open book symbol. Indicates the requirement to refer to the owner's manual for engine-related information.

MICRO 15A

Transmission Control Unit

SPARE1

2026 Kia Tasman spare fuse symbol icon. The text 'SPARE' is displayed with a small number 1 on the left. Identifies the spare fuse in the engine compartment fuse panel.

MICRO 10A

SPARE

HORN

2026 Kia Tasman horn symbol icon. A black silhouette of a trumpet-shaped horn facing left. Identifies the fuse controlling the vehicle's horn.

MICRO 15A

Horn

B/ALARM HORN

2026 Kia Tasman Horn symbol icon. A black silhouette of a horn facing left with jagged lines representing sound waves. Identifies the fuse for the horn or alarm circuit in the engine compartment fuse panel.

MICRO 15A

Burglar Alarm Horn

TCU3

2026 Kia Tasman T3 fuse symbol icon. The image shows the text 'T3' above an engine block symbol, with an open book icon containing the letter 'i' to the right. Identifies the T3 fuse in the engine compartment fuse panel.

MICRO 10A

SBW Inhibitor Switch (Relay coil)

VPC3

2026 Kia Tasman VPC symbol icon. The text 'VPC' is displayed with a superscript number '4' on the left. This symbol identifies the VPC component in the engine compartment fuse panel.

MICRO 10A

VPC (Vehicle Platform Controller)

Engine Room Junction Block

Fuse Name

Symbol

TYPE

Load

COOLING FAN

2026 Kia Tasman engine coolant symbol icon. A rectangular tank icon featuring a filler cap on the top right and a snowflake symbol in the center. Identifies the fuse associated with the engine cooling system.

MULTI 100A

Cooling Fan

RESERVE

-

MULTI 80A

Not Used

REAR HEATED

2026 Kia Tasman rear window defroster symbol icon. A rectangular outline encloses three wavy arrows pointing upwards. Identifies the rear window defroster fuse in the engine compartment fuse panel.

MULTI 50A

Rear Glass Heated

RESERVE

-

MULTI 50A

Not Used

RESERVE

-

MULTI 50A

Not Used

RESERVE

-

MICRO 10A

Not Used

A/C 2

2026 Kia Tasman A/C fuse symbol icon. The text 'A/C' is displayed with a small number 2 in the top left. Identifies the air conditioning system fuse in the engine compartment fuse panel.

MICRO 10A

DATC (Dual Automatic Temperature Control) Blower Motor Act Sinal MTC (Manual Temperature Control) Blower Motor Act Sinal

TRAILER6

2026 Kia Tasman trailer fuse symbol icon. A black rectangular trailer icon with two circular wheels at the bottom and a hitch line extending to the left, with the number 6 located at the top left. Identifies the circuit protected for trailer components in the engine compartment fuse panel.

MICRO 15A

ITBC (Integrated Trailer Brake Controller)

RESERVE

-

MICRO 10A

Not Used

HEATED MIRROR

2026 Kia Tasman Heated Side Mirror fuse symbol icon. The icon depicts a side view mirror outline with two wavy arrows pointing upwards. Identifies the heated side mirror fuse in the engine compartment fuse panel.

MICRO 10A

Outside Mirror Heated

RESERVE

-

S/B M 30A

Not Used

RESERVE

-

S/B M 30A

Not Used

RESERVE

-

S/B M 30A

Not Used

RESERVE

-

S/B M 30A

Not Used

TRAILER4

2026 Kia Tasman Trailer 4 fuse symbol icon. A black silhouette of a trailer with two wheels and the number 4 on the left. Identifies the trailer fuse in the engine compartment fuse panel.

MICRO 25A

Trailer (Prepared)

TRAILER5

2026 Kia Tasman trailer fuse symbol icon. A black silhouette representing a trailer with two wheels, with the number 5 displayed on the left. Identifies the fuse associated with trailer towing circuits in the engine compartment fuse panel.

MICRO 25A

Trailer (Prepared)

QTR STORAGE

2026 Kia Tasman QTR STORAGE fuse symbol icon. The text 'QTR' is displayed above the text 'STORAGE' in uppercase letters. Identifies the fuse protecting the quarter storage circuit in the engine compartment fuse panel.

MICRO 10A

Quarter Storage Latch

TRAILER3

2026 Kia Tasman trailer fuse symbol icon. A black silhouette icon depicts a trailer with two wheels and the number 3 on the left. Identifies the fuse for trailer components in the engine compartment fuse panel.

S/B LP 30A

ITBC (Integrated Trailer Brake Controller)

BLOWER

2026 Kia Tasman cooling fan symbol icon. The image displays a black outline of a four-bladed fan. This symbol identifies the fuse protecting the cooling fan circuit in the engine compartment fuse panel.

S/B LP 50A

Blower Motor

GLOW

2026 Kia Tasman glow plug symbol icon. A black spiral line resembling a heating coil. Identifies the glow plug fuse in the engine compartment fuse panel.

S/B LP 60A

GCU (Glow Control Unit)

RESERVE

-

S/B LP 40A

Not Used

TRAILER1

2026 Kia Tasman Trailer 1 fuse symbol icon. A black silhouette icon showing a trailer with two wheels and the number 1 on the left. Identifies the fuse for the trailer towing system in the engine compartment fuse panel.

S/B LP 40A

ITBC (Integrated Trailer Brake Controller)

TRAILER2

2026 Kia Tasman Trailer 2 fuse symbol icon. A black icon depicting a trailer with two wheels and the number 2 on the left. Identifies the fuse for the trailer circuit in the engine compartment fuse panel.

S/B LP 30A

ITBC (Integrated Trailer Brake Controller)

RESERVE

-

MICRO 15A

Not Used

RESERVE

-

MICRO 15A

Not Used

RESERVE

-

MICRO 20A

Not Used

HEAD LAMP LH

2026 Kia Tasman LH HEAD LAMP fuse label image. The text 'LH HEAD LAMP' is displayed. Identifies the fuse for the left-hand headlamp in the engine compartment fuse panel.

S/B M 40A

Head Lamp LH

RESERVE

-

S/B M 30A

Not Used

Relay(Engine Room Junction Block)

Fuse Name

Symbol

TYPE

Load

BLOWER

2026 Kia Tasman cooling fan symbol icon. The image displays a black outline of a four-bladed fan. This symbol identifies the fuse protecting the cooling fan circuit in the engine compartment fuse panel.

MINI RELAY

Blower Motor

RESERVE

-

MICRO Relay

Not Used

QTR STORAGE

2026 Kia Tasman QTR STORAGE fuse symbol icon. The text 'QTR' is displayed above the text 'STORAGE' in uppercase letters. Identifies the fuse protecting the quarter storage circuit in the engine compartment fuse panel.

MICRO Relay

Quarter Storage Latch

RESERVE

-

MICRO Relay

Not Used

RESERVE

-

MINI RELAY

Not Used

REAR HEATED

2026 Kia Tasman rear window defroster symbol icon. A rectangular outline encloses three wavy arrows pointing upwards. Identifies the rear window defroster fuse in the engine compartment fuse panel.

MINI RELAY

Rear Glass Heated

RESERVE

-

MICRO Relay

Not Used

RESERVE

-

MICRO Relay

Not Used

RESERVE

-

MICRO Relay

Not Used
