Light position (Front)

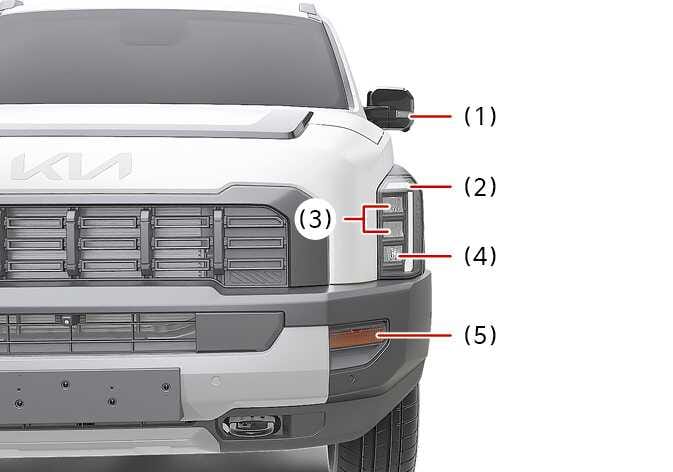

Figure 1. Head lamp – Type A
2026 Kia Tasman front light position image. Red lines indicate the Side repeater lamp (1), Day time running lamp (2), Headlamp High (3), Headlamp Low (4), and Front turn signal lamp (5) on the bumper. Describes the locations of the front lighting components.
N_TK25G026

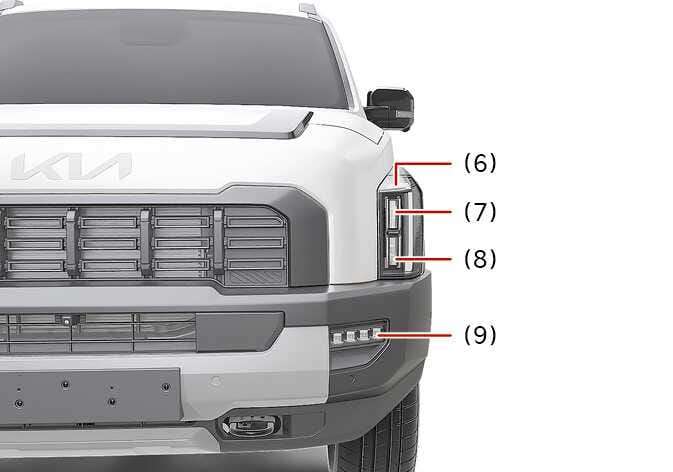

Figure 2. Head lamp – Type B
2026 Kia Tasman front light position Type B image. Red lines mark: (6) Day time running/Position/Turn signal lamp, (7) Low Headlamp, (8) Low/High Headlamp, (9) Front fog lamp. Describes the front lighting arrangement.
N_TK25G027

  1. Side repeater lamp (LED type)

  2. Day time running lamp/Position lamp (LED type)

  3. Headlamp (High) (LED type)

  4. Headlamp (Low) (LED type)

  5. Front turn signal lamp (Bulb type)

  6. Day time running lamp/Position lamp/Front turn signal lamp (LED type)

  7. Headlamp (Low) (LED type)

  8. Headlamp (Low/High) (LED type)

  9. Front fog lamp (LED type): (if equipped)
