Light position (Rear)

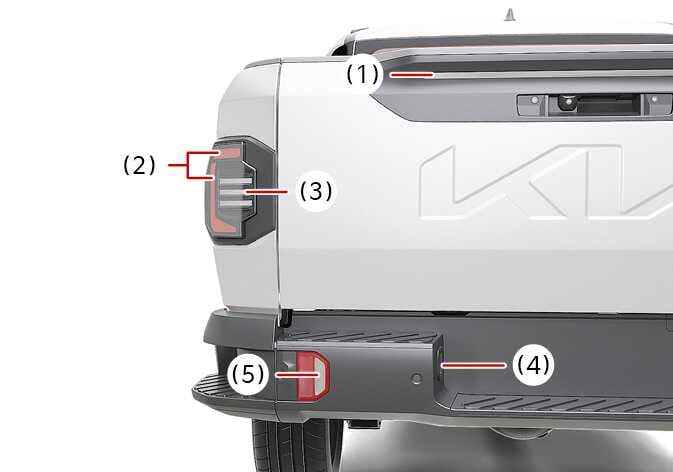

Figure 1. Type A
2026 Kia Tasman rear light position image. Numbered callouts indicate the locations of the high mounted stop lamp (1), tail lamp and stop lamp (2), rear turn signal lamp (3), license plate lamp (4), and backup lamp or rear fog lamp (5) on the vehicle's rear. Describes the arrangement and location of rear exterior lighting components.
N_TK25G028

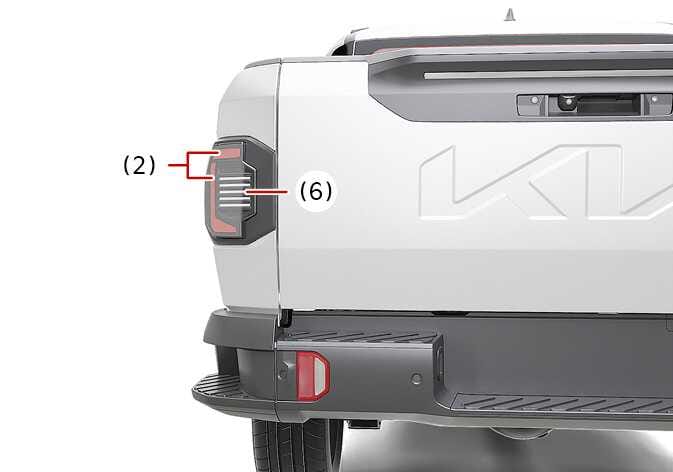

Figure 2. Type B
2026 Kia Tasman rear light position Type B image. The image displays the rear left side of the vehicle. Callout (2) indicates the Tail lamp/Stop lamp (LED type), and callout (6) points to the Rear turn signal lamp (LED type) featuring horizontal bars. This describes the location and arrangement of the rear lighting components.
N_TK25G029

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp (LED type)

  3. Rear turn signal lamp (Bulb type)

  4. License plate lamp (LED type)

  5. Backup lamp / Rear fog lamp (LED type): (if equipped)

  6. Rear turn signal lamp (LED type)
