Charging status indicator lamp for portable charging cable

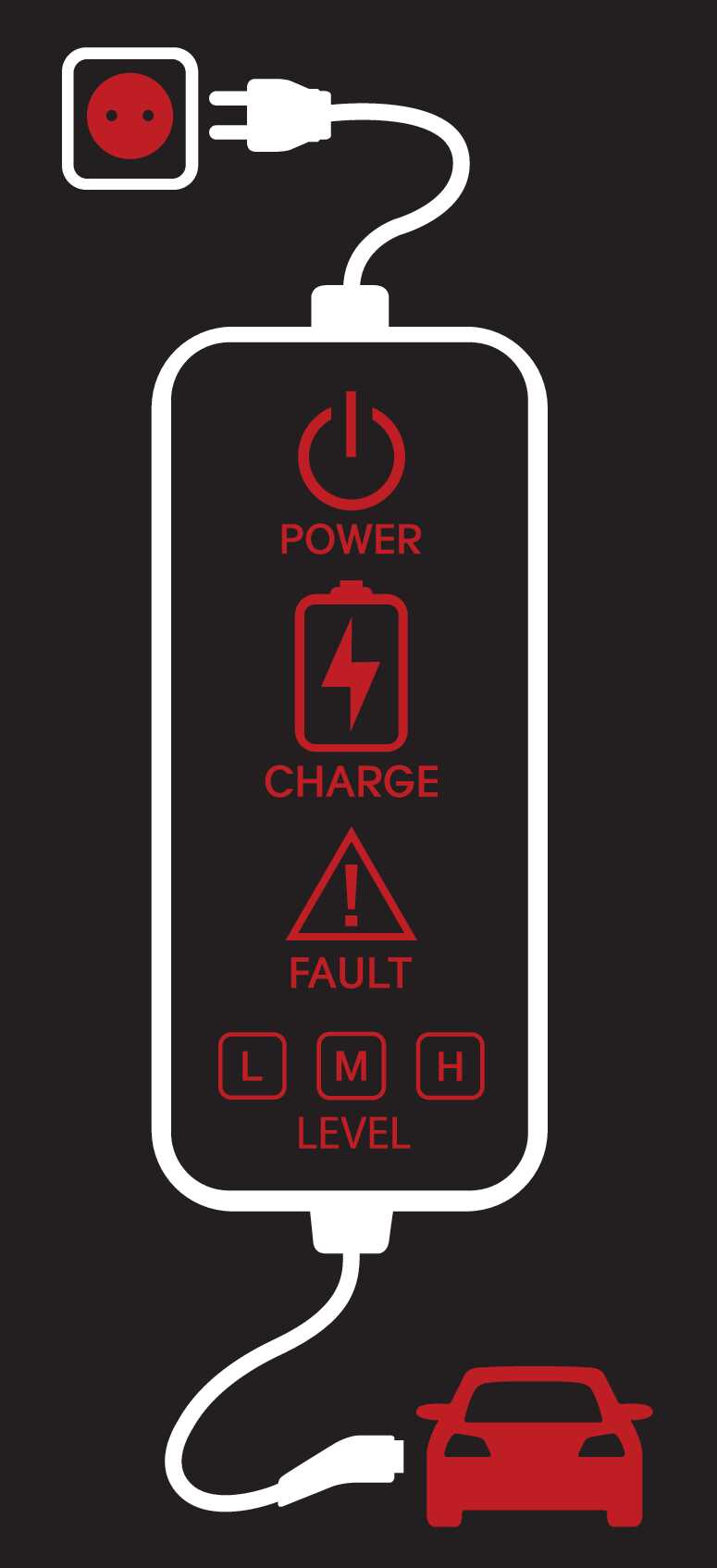

Control Box

Indicator

Details

PLUG

(Green)

On: Power on

Blink: Plug temperature sensor failure

(Red)

On: Plug high temperature protection

Blink: Plug high temperature warning

POWER

On: Power on

CHARGE

Blink: Charging In power saving mode, only the CHARGE indicator is appears.

FAULT

Blink: Charging interrupted

CHARGE LEVEL

Charging current 12A

Charging current 10A

Charging current 8A

VEHICLE

(Green)

Charging connector plugged

(Blue)

Charging

(Red)

Blink: Charging impossible

NO

Control Box

Status/Diagnosis/Countermeasure

NO

Control Box

Status/Diagnosis/Countermeasure

1

  • Charging connector plugged into vehicle (Green ON)

  • Plug temperature sensor failure (Green blink)

  • Plug high temperature protection (Red blink)

  • Plug high temperature warning (Red ON)

Have the system inspected by an authorized Kia dealer.

2

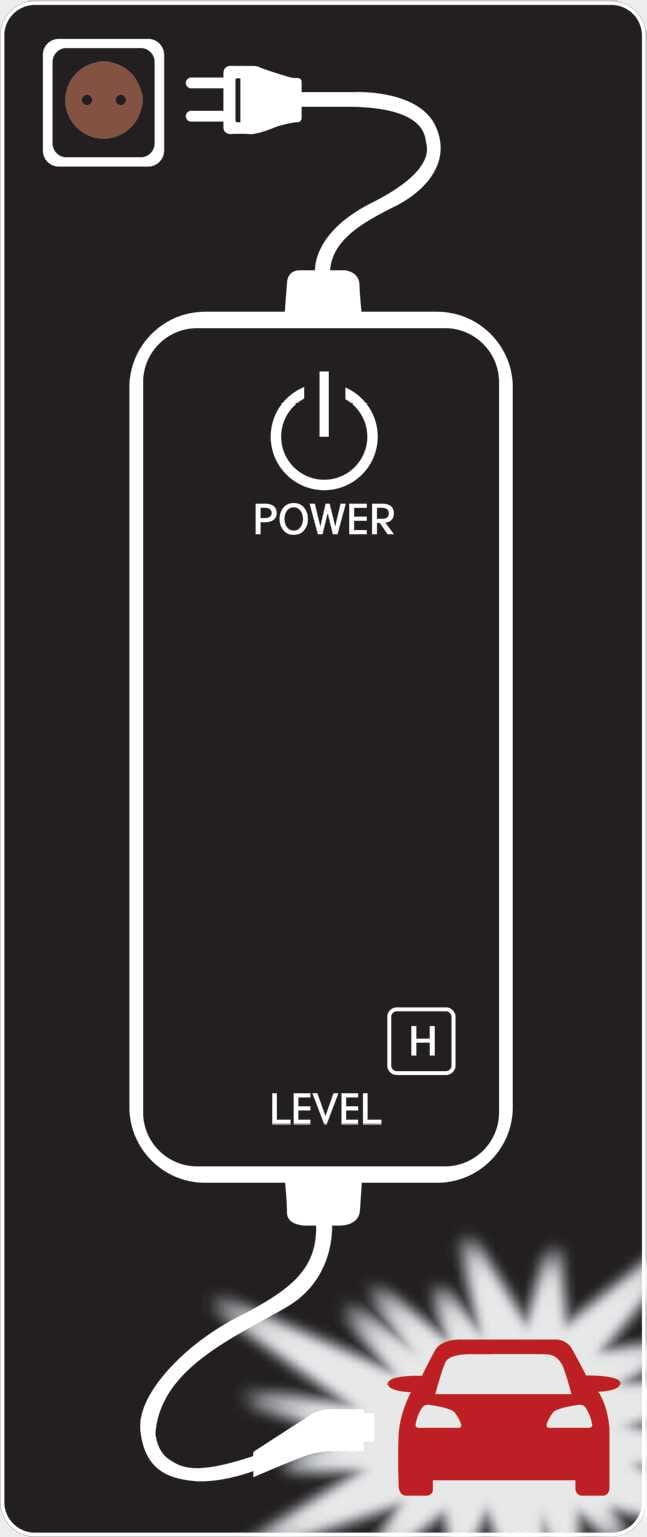

  • Charging connector plugged into vehicle (Green ON)

3

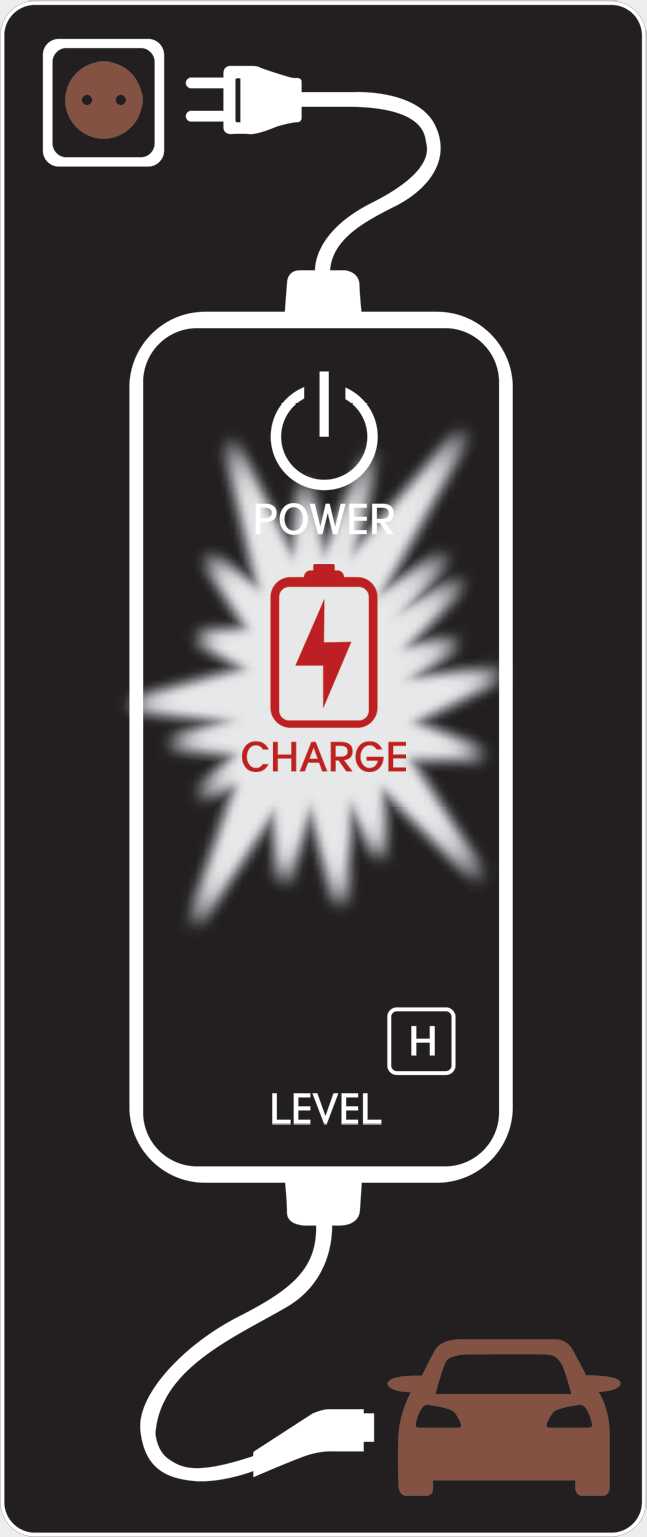

  • While charging

    • Charge indicator (Green blink)

    • Vehicle indicator (Blue ON)

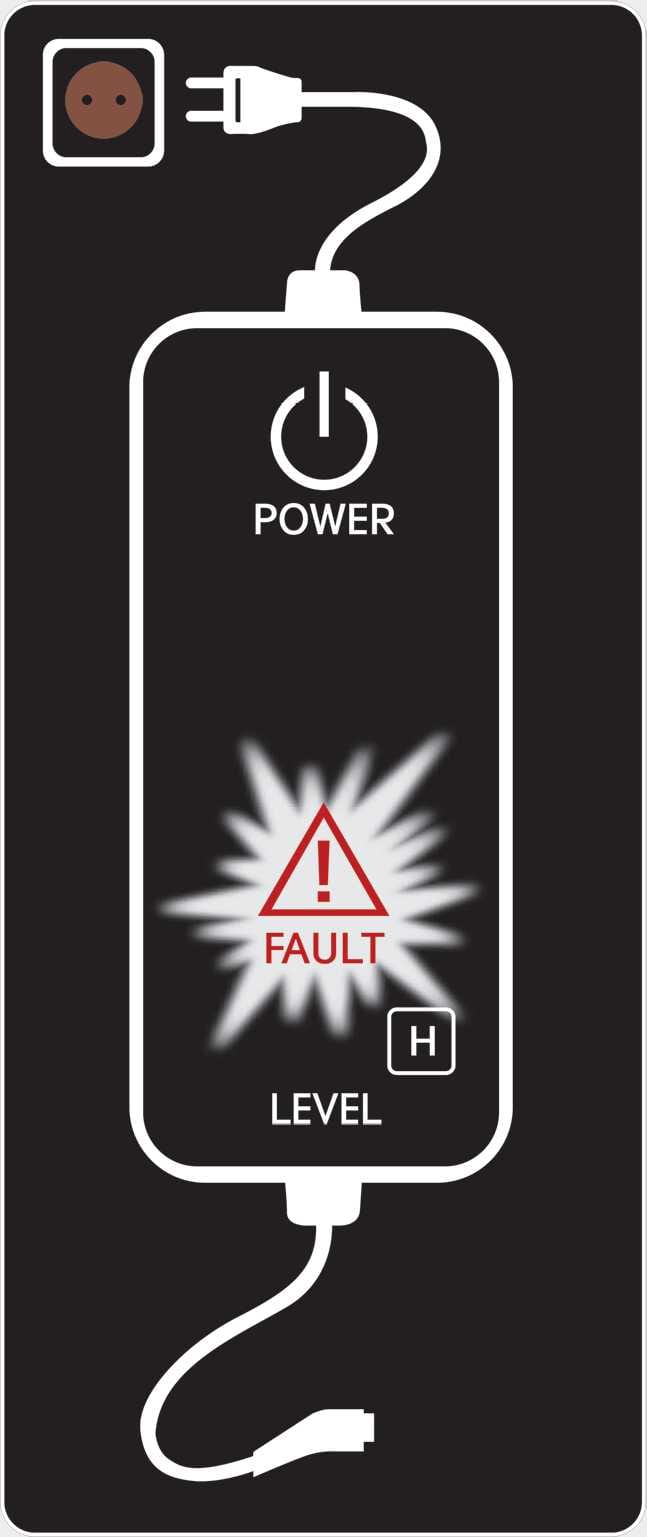

4

  • Before plugging charging connector into vehicle (Red blink)

    • Abnormal temperature

    • ICCB (In-Cable Control Box) failure

Have the system inspected by an authorized Kia dealer.

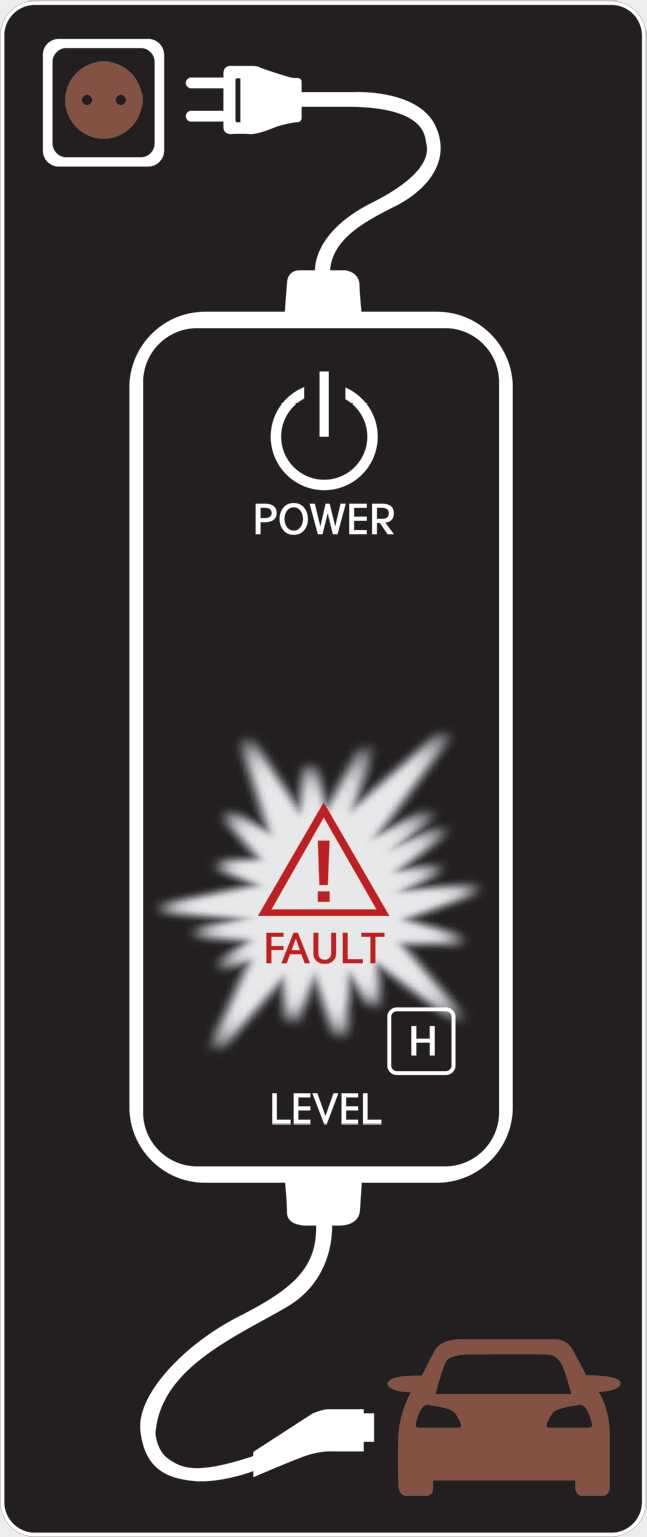

5

  • Plugged into vehicle (Red blink)

    • Diagnostic device failure

    • Current leakage

    • Abnormal temperature

Have the system inspected by an authorized Kia dealer.

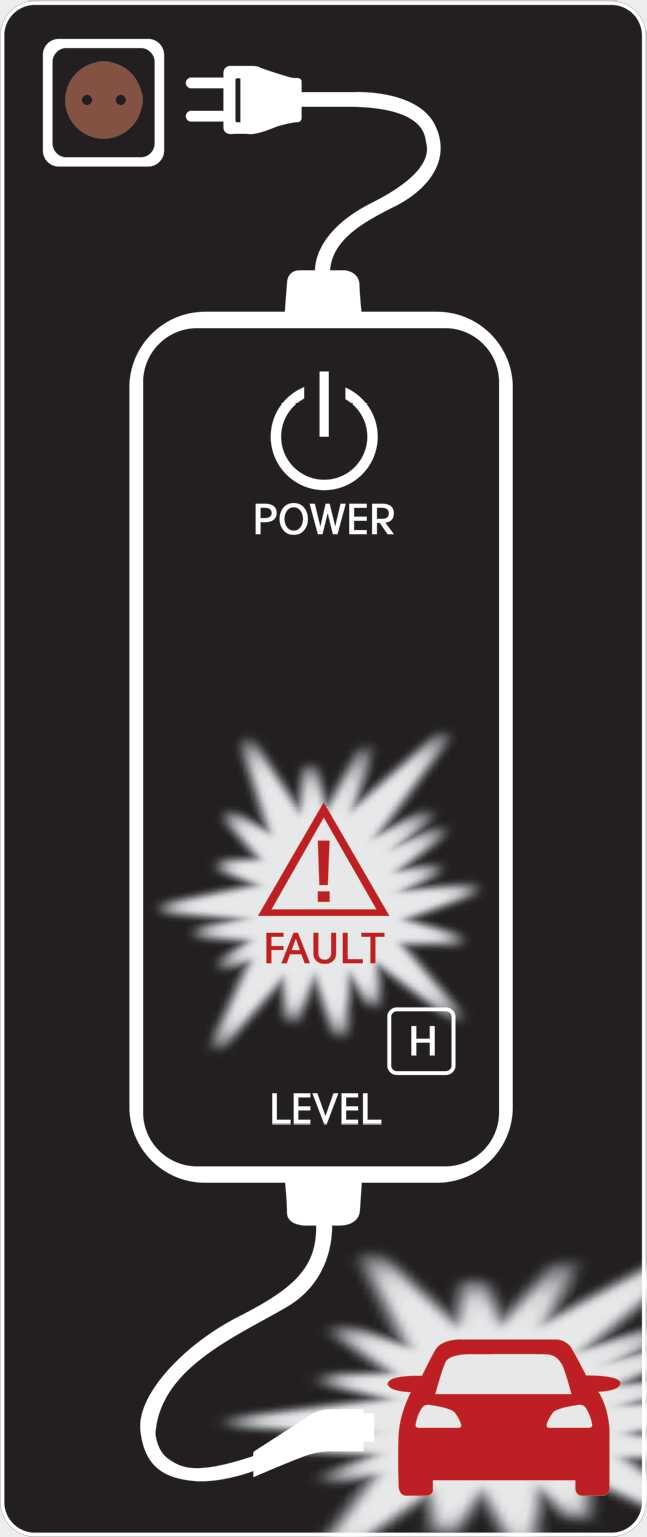

6

  • After plugging charging connector into vehicle (Red blink)

    • Communication failure

Have the system inspected by an authorized Kia dealer.

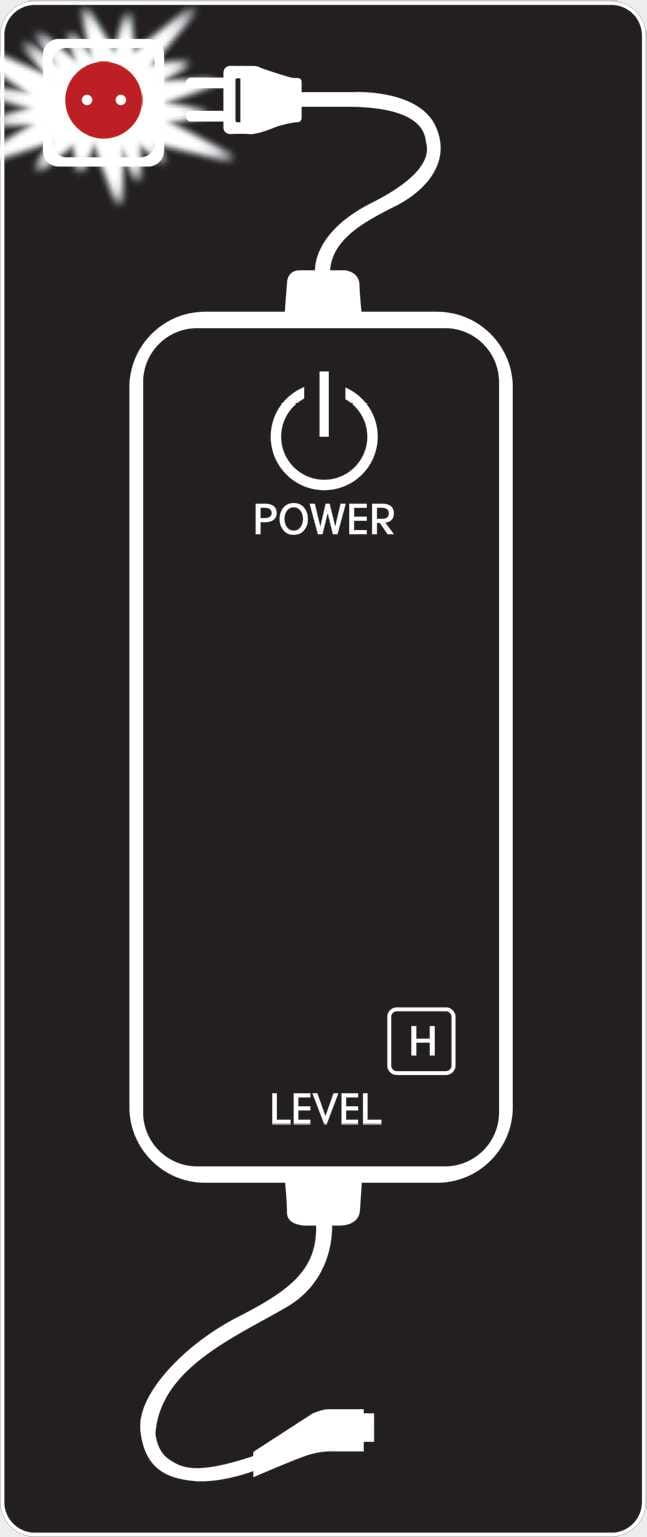

7

  • Plug temperature sensor failure (Green blink)

  • Plug high temperature protection (Red blink)

  • Plug high temperature warning (Red ON)

Have the system inspected by an authorized Kia dealer.

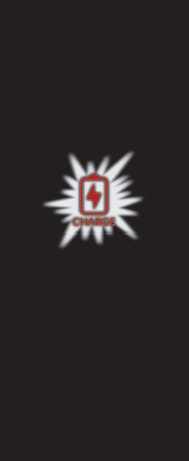

8

  • Power saving mode

    • 3 minutes after charging starts (Green blink)
