How to disconnect portable charging cable (ICCB: In-Cable Control Box)

  1. Before disconnecting the charging connector, make sure the doors are unlocked. When the door is locked, the charging connector lock system will not allow disconnection. To prevent charging cable theft, the charging connector cannot be disconnected from the inlet when the doors are locked. However, if the vehicle is in the charging connector AUTO mode, the charging connector automatically unlocks from the inlet when charging is completed.

    For more details, refer to AC charging connector lock.

    CAUTION

    In order to disconnect the charging connector, unlock the doors to unlatch the charging connector lock system. If not, the charging connector and the vehicle's charging inlet may be damaged.

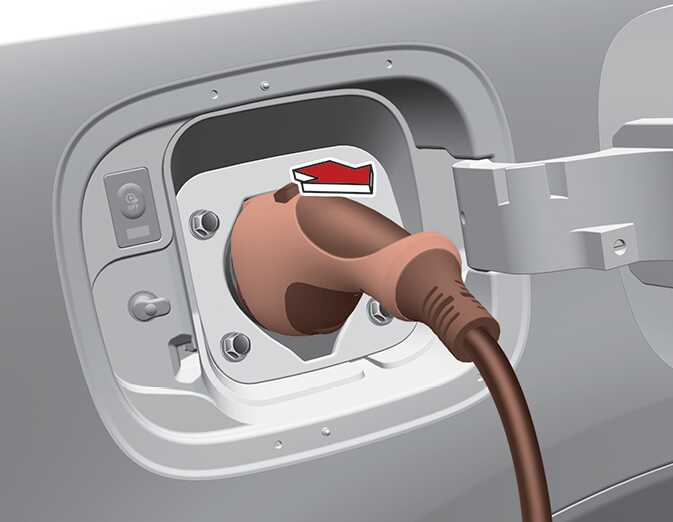

  2. While holding the charging connector, pressing the locking release button and then pull it out.

    OMQ4PH010010L0

  3. Make sure to securely close the charging door.

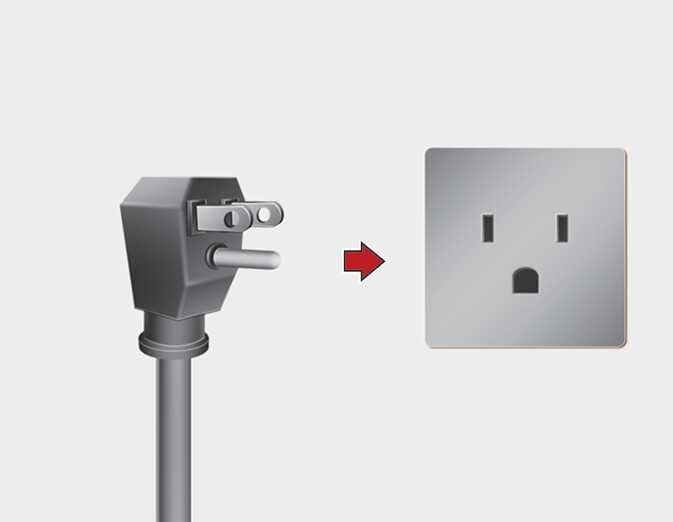

  4. Disconnect the plug from the household electric outlet. Do not pull the cable when disconnecting the plug.

    OMQ4Q011003N0

  5. Close the protective cover for the charging connector so that foreign material cannot get into the terminal.

  6. Put the charging cable inside the cable compartment to protect it.
