Display and control

You can see the status of the Highway Lane Change Assist function operation in the Driving Assist view on the instrument cluster. Refer to .

Highway Lane Change Assist function will be displayed as below depending on the status of the function.

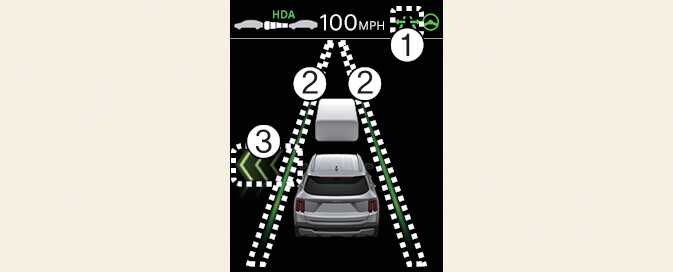

Figure 1. Ready/Operating
OMQ4A053016

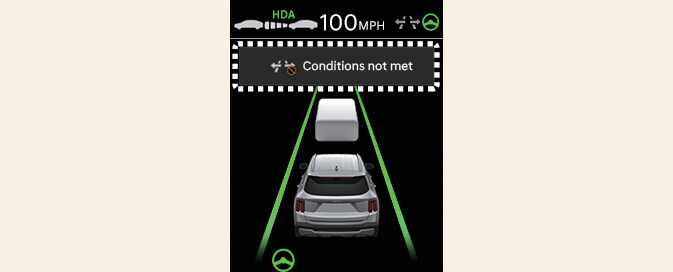

Figure 2. Standby/Cancelled
OMQ4A053017

  1. Highway Lane Change Assist indicator

    • Green ( ) on: Ready state

    • Green ( ) blink: Operating state

    • Grey ( ) on: Standby state

    • White ( ) blink: Canceled state (display only a certain time)

  2. Lane line

    The lane line is displayed identical to Highway Lane Change Assist indicator (1). However, the lane detection availability will be showed on Standby state.

  3. Green arrow and shade

    The green arrow is displayed when a certain amount of time has passed after the function has started operating, and until the lane change has completed.

  4. Message

    • Message is displayed when the function does not operate even though the turn signal lever is used.

    • Message is displayed when the function is canceled while operating.

Highway Lane Change Assist function will turn on when the following conditions are satisfied.

  • The Driving Assist button or Lane Driving Assist button is used to turn on Highway Driving Assist.
