Rear-view

OMQ4053153L
OMQ40530732

The rear-view function of the Surround View Monitor displays the vehicle's rear situation on the navigation system according to the driver's settings, assisting in safe parking.

Parking

While parking, the rear-view of the Surround View Monitor is activated in the following cases:

  • P (Parking) or N (Neutral) or D (Drive) position with a vehicle speed slower than 10 km/h, Pressing the Parking/View button (1) and then pressing the view switching button (2) to select the rear-view

  • Shifting to R (Reverse)

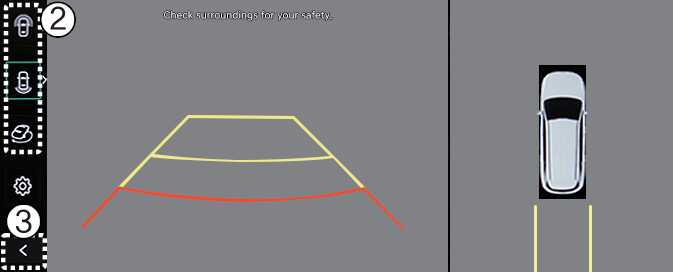

Pressing the view switching button (2) on the Surround View Monitor to select the rear-view, rear top view, rear side-view, or rear wide view.

While parking, the rear-view function of the Surround View Monitor is turned off under the following conditions when the vehicle is in P (Park) or N (Neutral) or D (Drive) mode:

  • Shifting from N (Neutral) or D (Drive) to P (Parking)

  • Pressing the Parking/View button (1)

  • Pressing the back button (3) on the Surround View Monitor screen

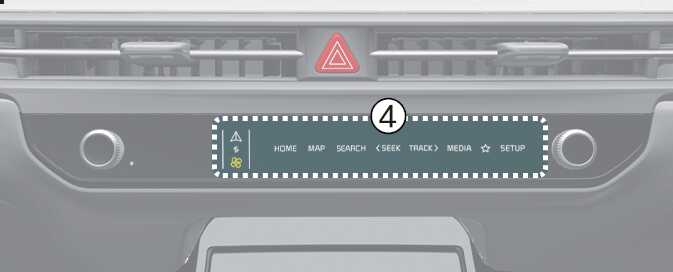

  • Pressing the infotainment system power button (4)

  • Driving faster than 10 km/h

When the vehicle is in R (Reverse), the rear-view function of the Surround View Monitor will turn off under the following conditions:

  • Shifting to P (Park)

NOTE

  • The rear-view will always be displayed in R (Reverse).

  • In R (Reverse) position, the video will not be turned off by pressing the infotainment system power button (4).
