3D view function

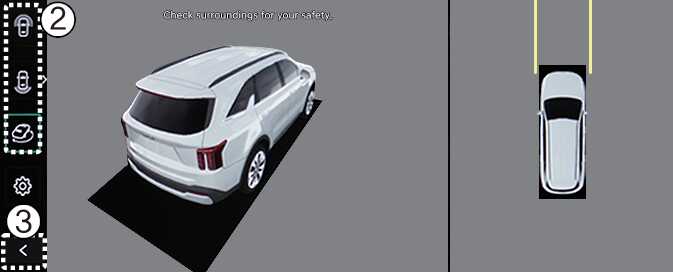

3D view function shows the vehicle in various angles. Press the 3D view icon on the Surround View Monitor screen to choose the angle. Press the 3D view icon again to reset the angle.
The 3D view of the Surround View Monitor is activated under the following conditions:
-
P (Park) or N (Neutral) or D (Drive) position with a vehicle speed slower than 6 mph (10 km/h), or when selecting the 3D view button (2) while the Surround View Monitor is activated in R (Reverse) mode.
The 3D view function of the Surround View Monitor while parking will be turned off under the following conditions:
-
Shifting from N (Neutral) or D (Drive) to P (Park)
-
Pressing the Parking/View button (1)
-
Pressing the back button (3) on the Surround View Monitor screen
-

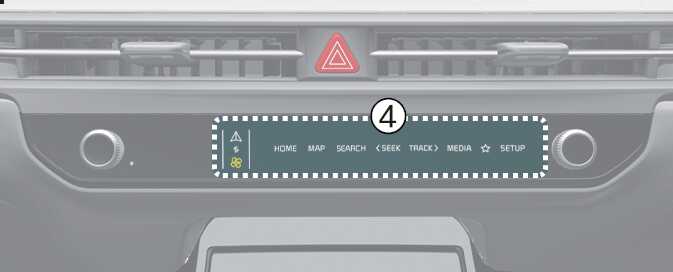

Pressing the infotainment system power button (4)
-
Driving faster than 6 mph (10 km/h)
When the vehicle is in R (Reverse), the 3D view function of the Surround View Monitor will turn off under the following conditions:
-
Shifting to P (Park)
-
The 3D view does not display parking guidelines.
-
The top view screen, which is displayed with a Front/Rear-view or 3D view, converts the original images entered from the four wide-angle cameras to provide a 360-degree image around the vehicle that is viewed down.
-
Top view is not displayed with front/rear wide view.
-
Zoom in or out on the top view by pinching the top view area.
