Air bag collision sensors

1

2

3

4

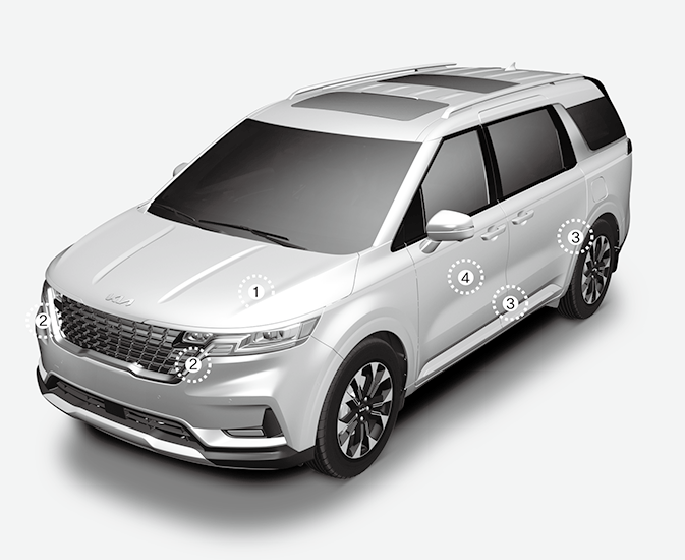

* The actual shape and position of sensors may differ from the illustration.

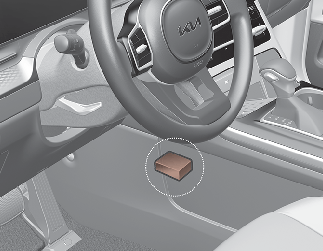

  1. Supplemental Restraint System (SRS) control module/rollover sensor*

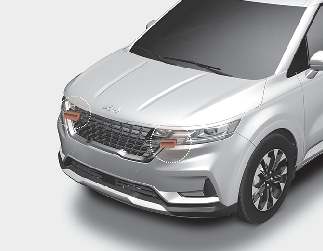

  2. Front impact sensor

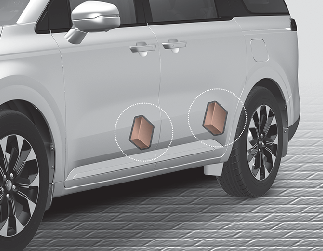

  3. Side impact sensors (B,C-pillar)

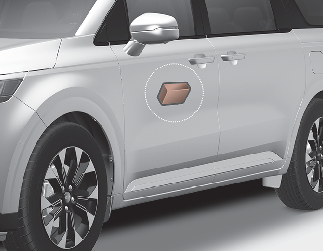

  4. Side pressure sensors (front door)

* : if equipped

WARNING

Air bag sensors

  • Do not hit or allow any objects to impact the locations where air bags or sensors are installed.

    This may cause unexpected air bag deployment, which could result in serious personal injury or death.

  • If the installation location or angle of the sensors is altered in any way, the air bags may deploy when they should not or they may not deploy when they should.

    Therefore, do not try to perform maintenance on or around the air bag sensors. Have the vehicle checked and repaired by an authorized Kia dealer.

  • Do not arbitrarily touch the front impact sensor. When the angle of the sensor is changed, the air bag system may malfunction.

WARNING

If equipped with rollover sensor

If your vehicle is equipped with side and curtain air bag, set the ignition switch or ENGINE START/STOP button to OFF or ACC position and wait for 3 minutes when the vehicle is being towed.

The side and curtain air bag may deploy when the ignitions is ON or the ignition is OFF within 3 minutes, and the rollover sensor detects the situation as a rollover.

Problems may arise if the sensor installation angles are changed due to the deformation of the front bumper, front end module, body or front doors where side collision sensors are installed. Have the vehicle checked and repaired by an authorized Kia dealer.

Installing bumper guards (or side step or running board) or replacing a bumper (or front door module) with non-genuine parts may adversely affect your vehicle's collision and air bag deployment performance.
