Rear climate control air filter
1

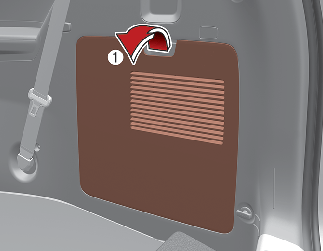

Open luggage and remove the storage cover (1) on the right side.
2

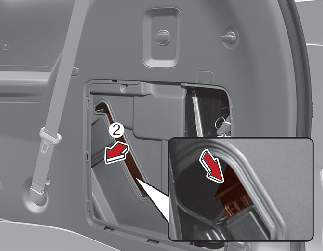

Push the upper hook of the rear air filter cover and open the cover (2).
3

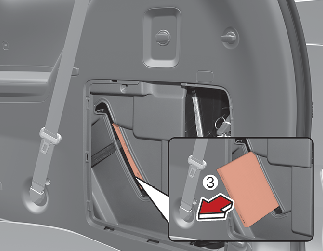

Remove the rear climate control air filter (3).
4

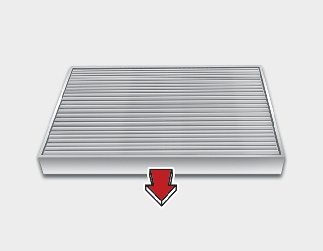

Replace the climate control air filter.
5
Reassemble in the reverse order of disassembly.

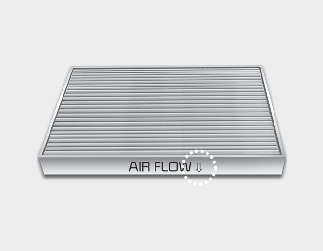

NOTICE
When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
