Function operation
Operating button

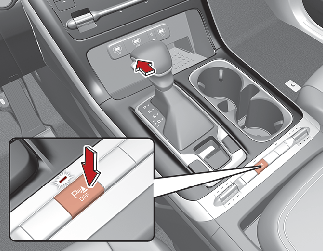

Parking Safety button
-
Press the Parking Safety (
) button to turn on Forward/Reverse Parking Distance Warning. Press the button again to turn off the function.
-
When Forward/Reverse Parking Distance Warning is off (button indicator light off), if you shift the gear to R (Reverse), the function will automatically turn on.
-
When Forward/Reverse Parking Distance Warning turns on, the button indicator light will turn on. If vehicle speed is above 20 km/h (12 mph), Forward/Reverse Parking Distance Warning will turn off (button indicator light off).
-
Warning function activates when the gear is R (Reverse) position for safe parking.
Forward Parking Distance Warning
-
Forward Parking Distance Warning works in 3 ways following:
-
The gear is shifted from R (Reverse) to D (Drive) with Reverse Parking Distance Warning on
-
The gear is in D (Drive) and the Parking Safety button indicator light is on
-
'Parking Distance Warning Auto On' is selected from the Settings menu and the gear is in D (Drive)
-
-
Forward Parking Distance Warning detects a person, animal or object in front when the vehicle's forward speed is below 10 km/h (6 mph).
-
Forward Parking Distance Warning does not operate when the vehicle's forward speed is above 10 km/h (6 mph) even when the Parking Safety button indicator is on. Forward Parking Distance Warning will operate again when the vehicle's forward speed decreases below 10 km/h (6 mph) while the Parking Safety button indicator is on.
-
When 'Parking Distance Warning Auto On' is selected, the Parking Safety button indicator light stays on.
-
When 'Parking Distance Warning Auto On' is deselected, and the vehicle's forward speed is above 20 km/h (12 mph), the Parking Safety button indicator will turn off. Although you drive below 10 km/h (6 mph), the function will not turn on.
|
Distance from object |
Warning indicator |
Warning sound |
|---|---|---|
|
Driving forward |
||
|
60 ~ 120 cm (24 ~ 48 in.) |
 |
Buzzer beeps intermittently |
|
30 ~ 60 cm (12 ~ 24 in.) |
 |
Beeps more frequently |
|
Within 30 cm (12 in.) |
 |
Beeps continuously |
-
The corresponding indicator will illuminate whenever each ultrasonic sensor detects a person, animal or object in its sensing range. Also an audible warning will sound.
-
When more than two objects are detected at the same time, the closest one will be warned with an audible warning.
-
The shape of the indicator in the illustration may differ from the actual vehicle.
Reverse Parking Distance Warning
-
Reverse Parking Distance Warning will operate when the gear is in R (Reverse).
-
Reverse Parking Distance Warning detects a person, animal or object in the rear when the vehicle's rearward speed is below 10 km/h (6 mph).
-
When the vehicle's rearward speed is below 10 km/h (6 mph), both the front and rear ultrasonic sensors will detect objects. However, the front ultrasonic sensors can detect a person, animal or object when it is within 60 cm (24 in.) from the sensors.
|
Distance from object |
Warning indicator |
Warning sound |
|---|---|---|
|
Driving backward |
||
|
60 ~ 120 cm (24 ~ 48 in.) |
 |
Buzzer beeps intermittently |
|
30 ~ 60 cm (12 ~ 24 in.) |
 |
Beeps more frequently |
|
Within 30 cm (12 in.) |
 |
Beeps continuously |
-
The corresponding indicator will illuminate whenever each ultrasonic sensor detects a person, animal or object in its sensing range. Also an audible warning will sound.
-
When more than two objects are detected at the same time, the closest one will be warned with an audible warning.
-
The shape of the indicator in the illustration may differ from the actual vehicle.
