Replacing rear turn signal lamp, reversing lamp (Bulb type)
1
Turn off vehicle and disconnect the negative terminal from the battery.
2
Remove the bumper.
3
Loosen the light assembly retaining screws with a cross-tip screw driver.
4
Disconnect the rear turn signal lamp/reversing lamp connector.
5
Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots
on the assembly.

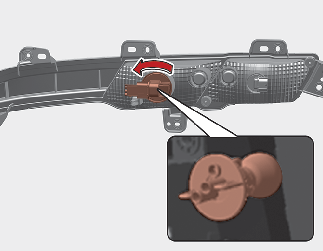

Rear turn signal lamp

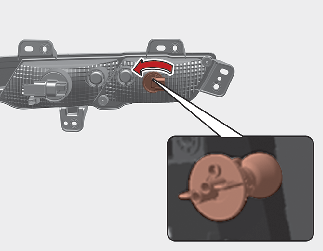

Reversing lamp
6
Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
7
Install the light assembly in the reverse order of removal.
