Light bulb position (Rear)

For 5 Door, Wagon, Shooting brake

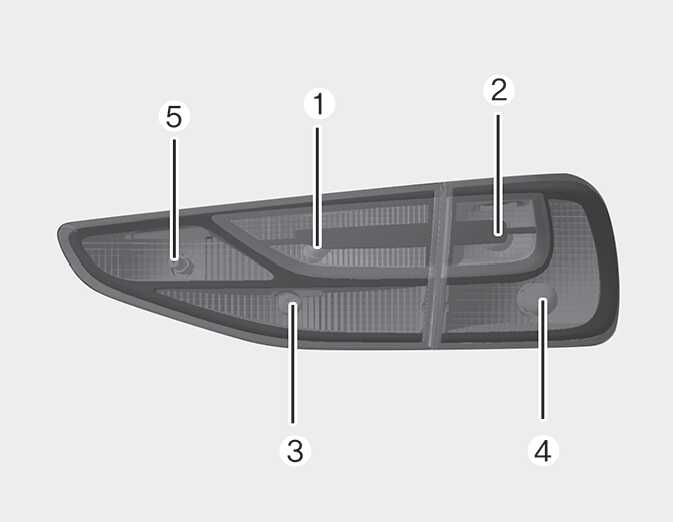

Figure 1. Rear combination lamp - 5 Door (type A)
OCDW079040

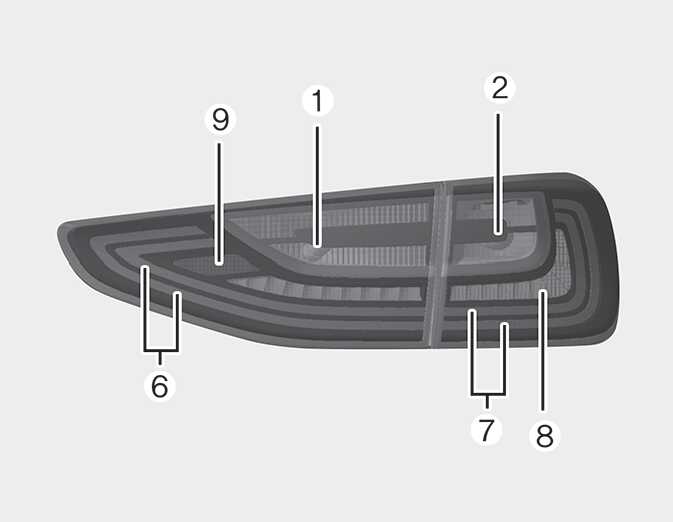

Figure 2. Rear combination lamp - 5 Door (type B)
OCD071041L

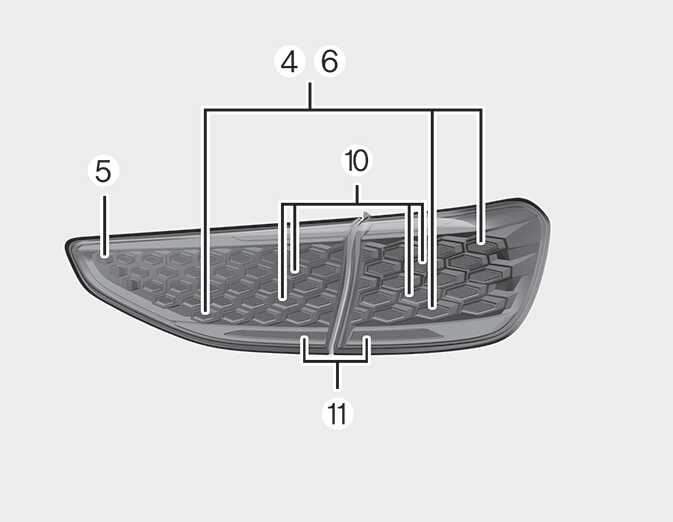

Figure 3. Rear combination lamp - 5 Door (type C)
OCD072180L

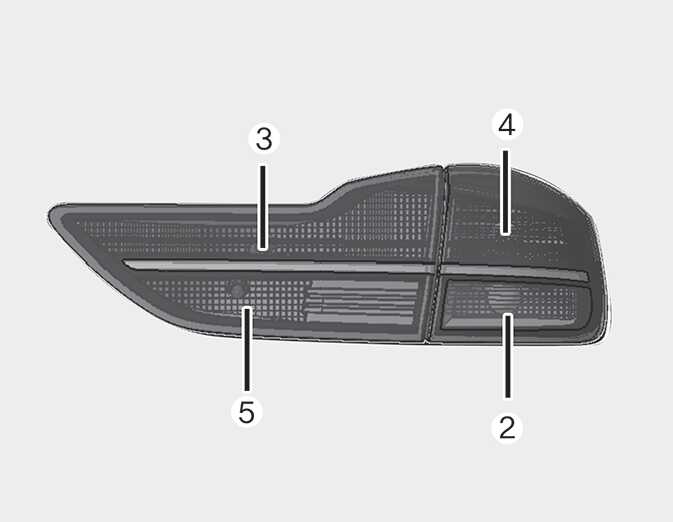

Figure 4. Rear combination lamp - Wagon (type A)
OCD071090L

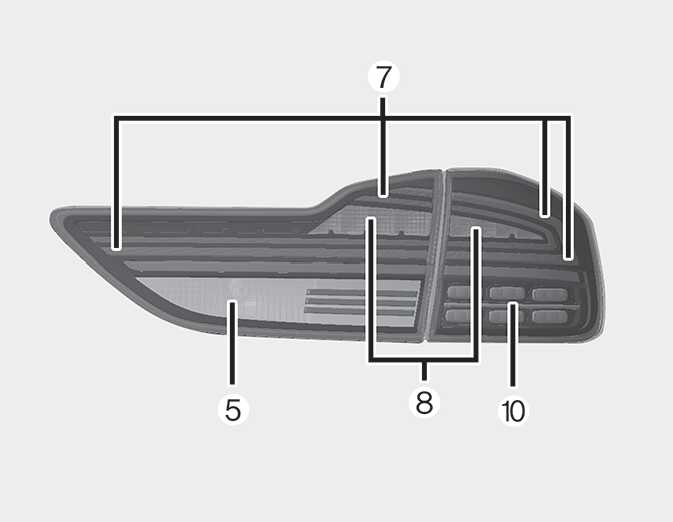

Figure 5. Rear combination lamp - Wagon (type B)
OCD071091L

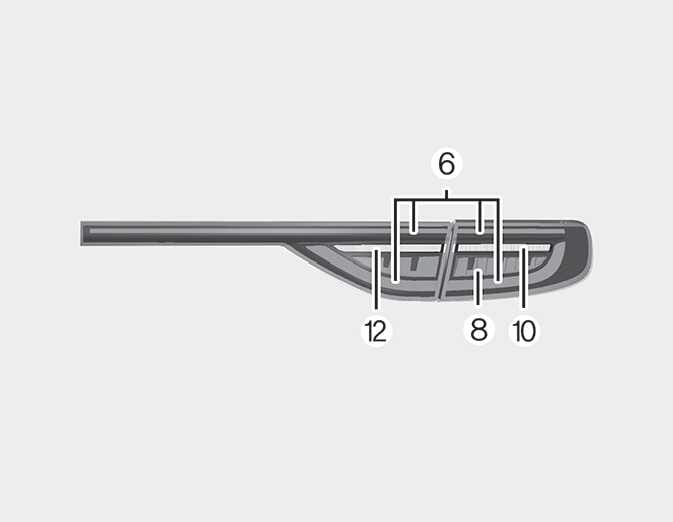

Figure 6. Rear combination lamp - Shooting brake
OCD071101L

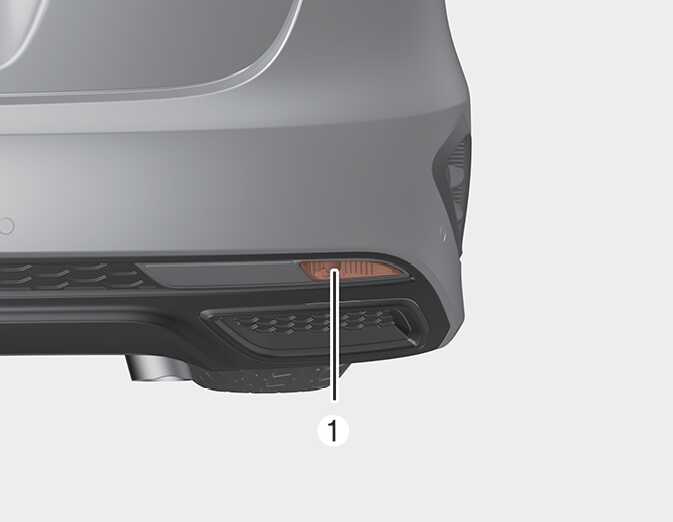

Figure 7. Back up lamp – wagon type A
OCDW079099

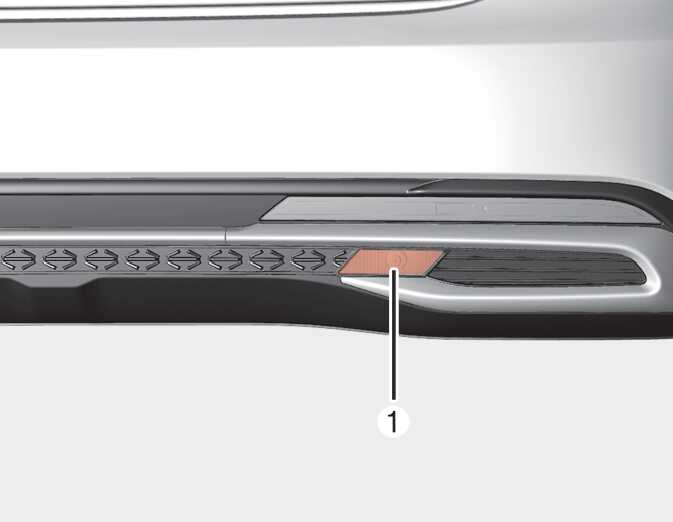

Figure 8. Back up lamp – wagon type B
OCD071163L

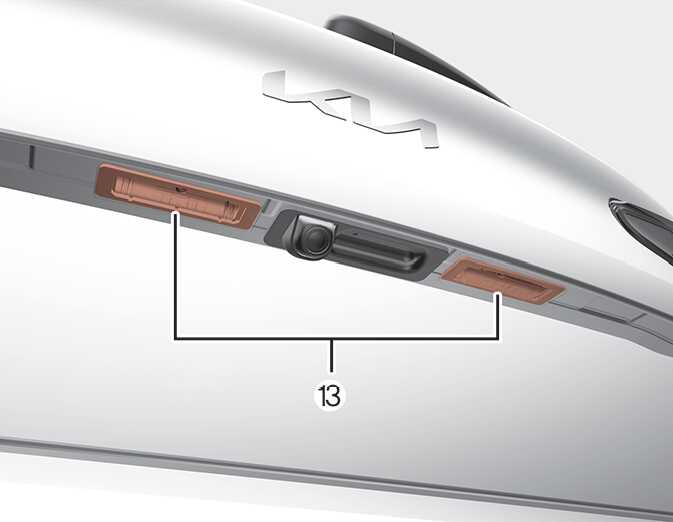

Figure 9. License plate lamp
OCD071120L

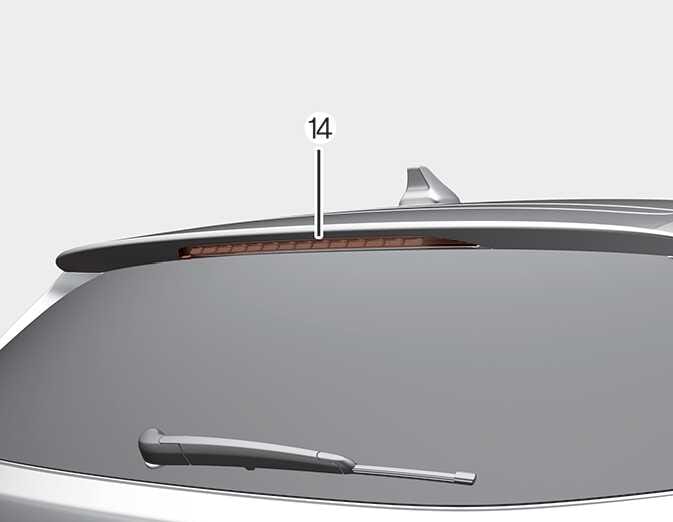

Figure 10. High mounted stop lamp - 5 Door, Wagon
OCD071121L

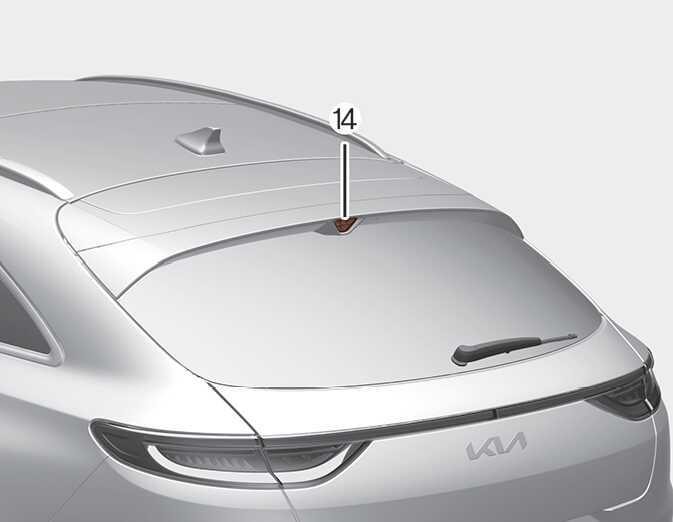

Figure 11. High mounted stop lamp - Shooting brake
OCD071122L

  1. Back up lamp (Bulb type)

  2. Rear turn signal lamp (Bulb type)

  3. Tail lamp (Bulb type)

  4. Stop and tail lamp (Bulb type)

  5. Rear fog lamp (Bulb type)

  6. Tail lamp (LED type)

  7. Stop and tail lamp (LED type)

  8. Stop lamp (LED type)

  9. Rear fog lamp (LED type)

  10. Rear turn signal lamp (LED type)

  11. Back up lamp (LED type)

  12. Back up lamp (Passenger's side)/Rear fog lamp (Driver's side) (LED type)

  13. License plate lamp (Bulb type)

  14. High mounted stop lamp (LED type)

For CUV

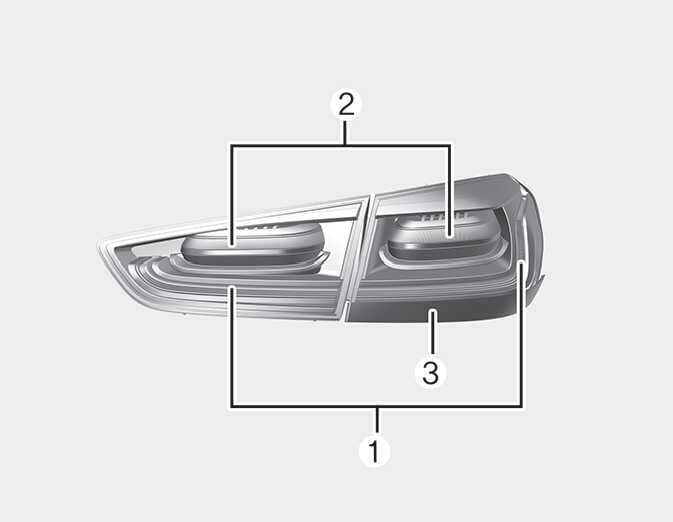

Figure 12. Rear combination lamp (type A)
OCD071124L

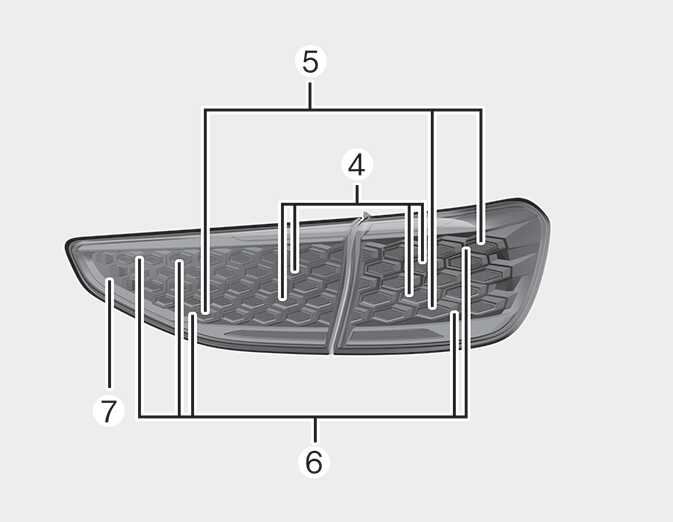

Figure 13. Rear combination lamp (type B)
OCD072186L

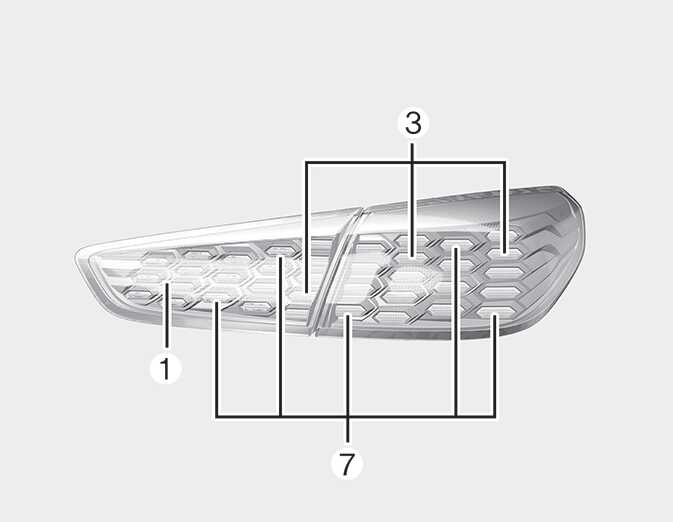

Figure 14. Rear combination lamp (type C)
OCD072182L

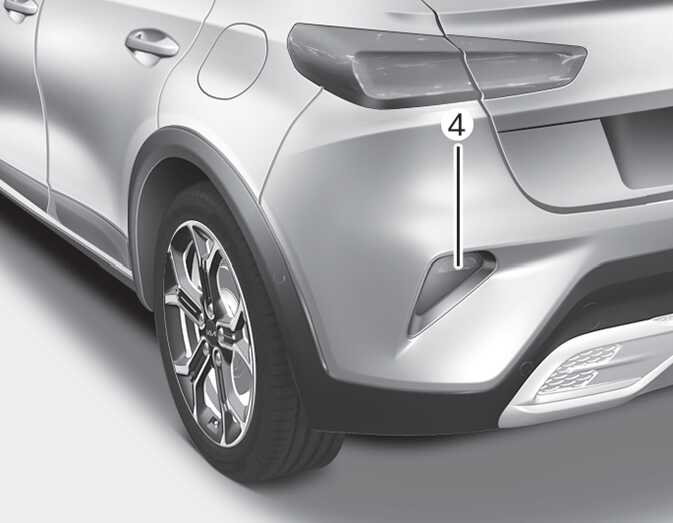

Figure 15. Rear fog lamp
OCD072125L

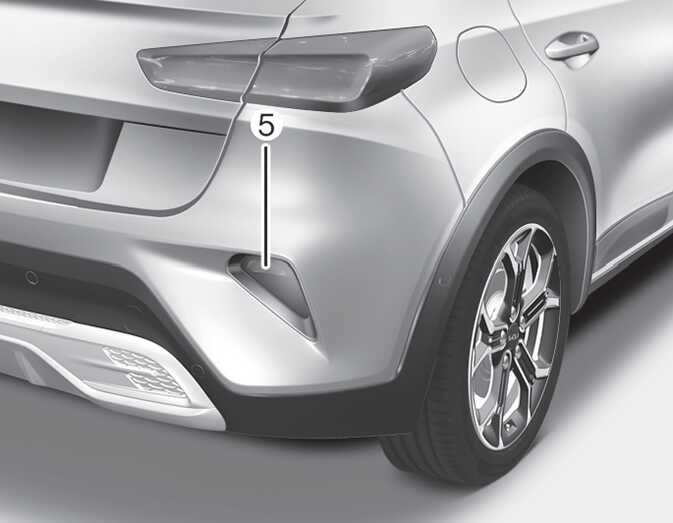

Figure 16. Back up lamp
OCD072126L

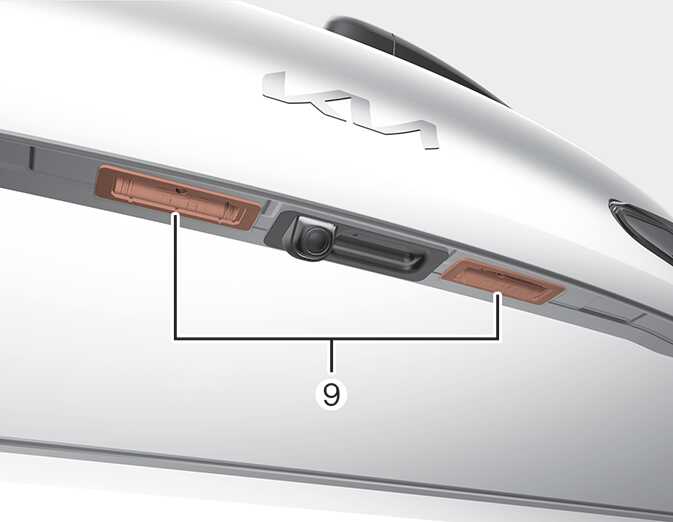

Figure 17. License plate lamp
OCD072127L

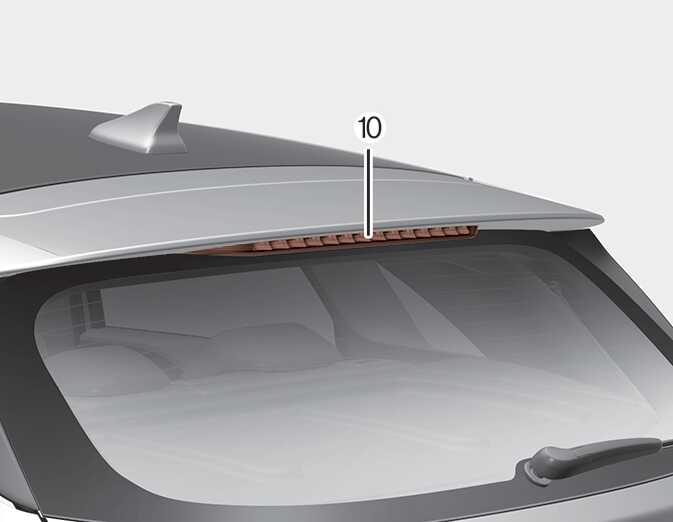

Figure 18. High mounted stop lamp
OCD072128L

  1. Tail lamp (LED type)

  2. Stop lamp (LED type)

  3. Rear turn signal lamp (LED type)

  4. Rear fog lamp (LED type)

  5. Back up lamp (Bulb type)

  6. Tail lamp (LED type)

  7. Stop and tail lamp (LED type)

  8. Back up lamp (Bulb type)

  9. License plate lamp (Bulb type)

  10. High mounted stop lamp (LED type)
