Position lamp (Bulb type) bulb replacement

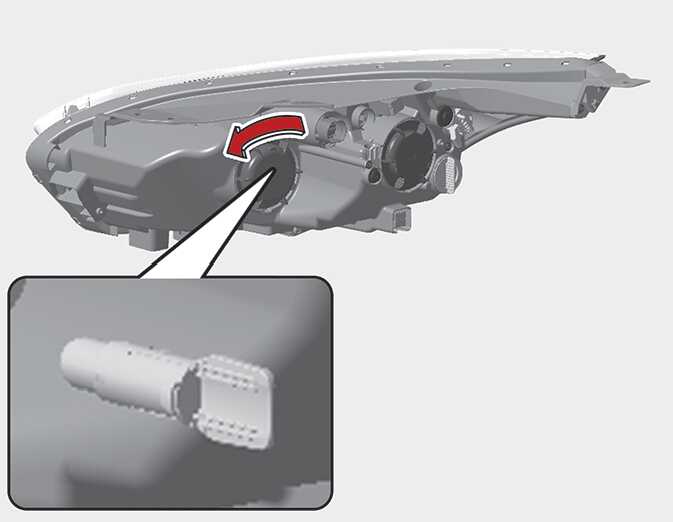

Figure 1. Head lamp type A For 5 Door, Wagon, Shooting brake
OCDW079047
  1. Open the hood.
  2. Remove the headlamp bulb cover by turning it counterclockwise.
  3. Remove the bulb-socket from the headlamp assembly by pulling it out.
  4. Remove the bulb from bulb-socket by pulling it out.
  5. Insert a new bulb by inserting it into the bulb-socket.
  6. Install the bulb-socket in the headlamp assembly.
  7. Install the headlamp bulb cover by turning it clockwise.
