License plate lamp bulb replacement

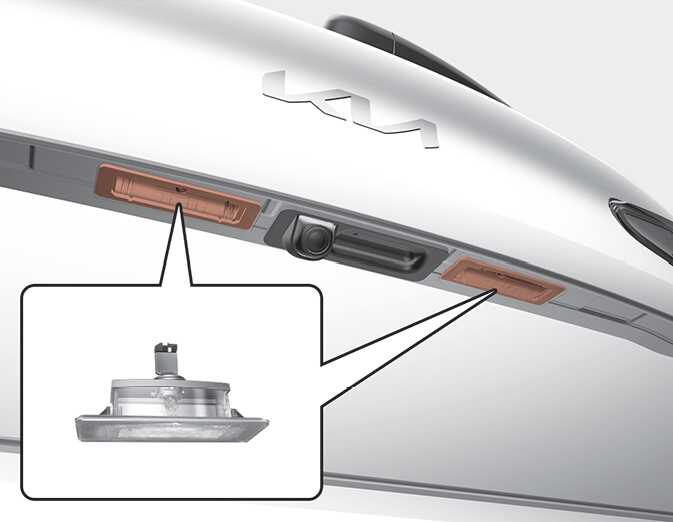

Figure 1. 5 Door, Shooting brake
OCD071137L

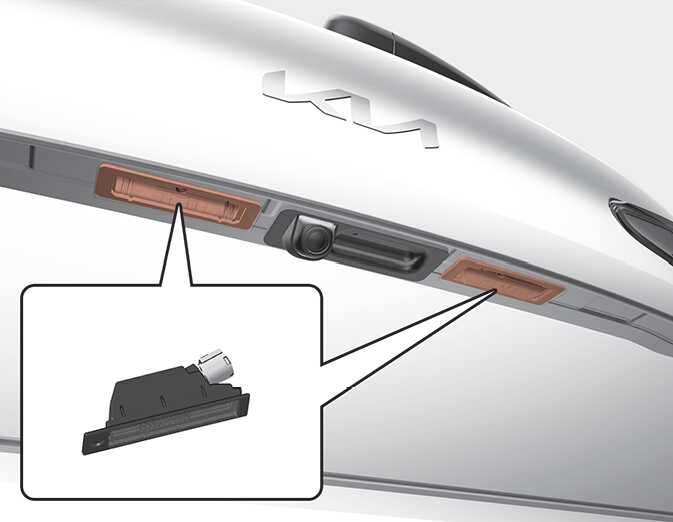

Figure 2. Wagon, CUV
OCD071136L
  1. Remove the lamp assembly by using a screwdriver.
  2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
  3. Remove the bulb from bulb-socket by pulling it out.
  4. Insert a new bulb by inserting it into the bulb-socket.
  5. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

    Push the socket into the assembly and turn the socket clockwise.

  6. Install the lamp assembly to the lamp housing.
