Front turn signal lamp (Bulb type) bulb replacement

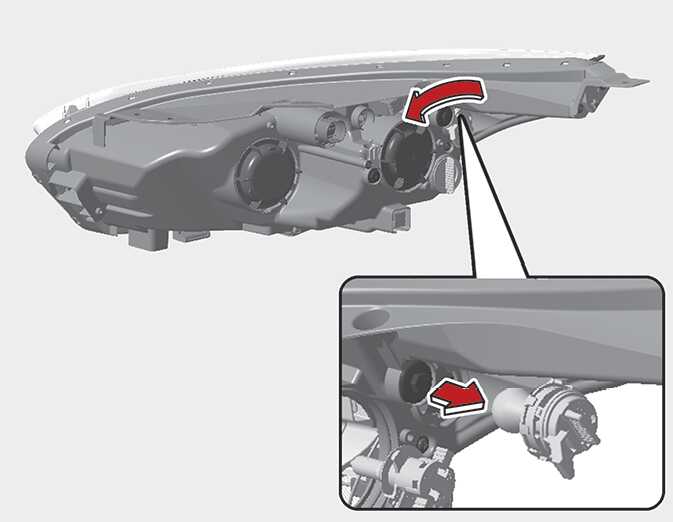

Figure 1. Head lamp type A, B For 5 Door, Wagon, Shooting brake
OCDW079046
  1. Open the hood.
  2. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.
  3. Remove the bulb from the bulbsocket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the bulb-socket.

    Pull the bulb out of the bulb-socket.

  4. Insert a new bulb by inserting it into the bulb-socket and rotating it until it locks into place.
  5. Install the socket in the headlamp assembly by aligning the tabs on the bulb-socket with the slots in the assembly.

    Push the bulb-socket into the headlamp assembly and turn the socket clockwise.
