Adjusting steering wheel angle and height

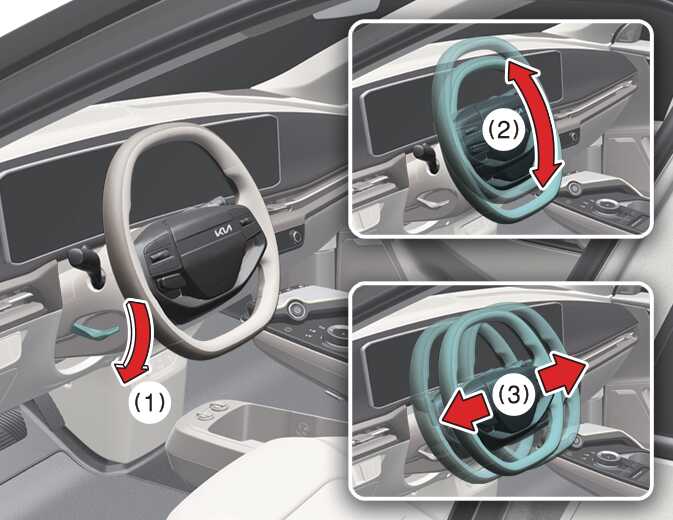

Manual type

OCV055059N_2

  1. To change the steering wheel angle, pull down the lock release lever (1).

  2. Adjust the steering wheel to the desired angle (2) and distance forward or back (3).

  3. Pull up the lock-release lever (1) to lock the steering wheel in place.

  4. Adjust the steering wheel to the desired position before driving.

NOTE

After adjustment, sometimes the lock-release lever may not lock the steering wheel.

It is not a malfunction. This occurs when two gears engage. In this case, adjust the steering wheel again to lock the steering wheel.

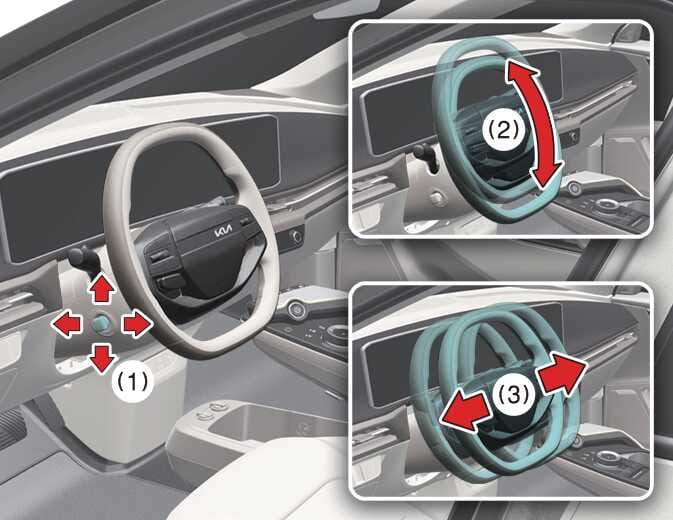

Electric type: (if equipped)

OCV055060N_2

  1. Adjust the steering wheel to the desired angle (2) and distance forward/back (3) with the switch (1).

Resetting the electric type steering wheel adjustment

While adjusting the steering wheel position, if you cannot adjust it anymore within the operable range, reset it as below.

  1. Press the control switch (1) in the direction where you were controlling for 10 seconds until the steering wheel is stopped.

  2. Continue pressing the switch (1) for about 2 seconds or more, even after the steering wheel stops.

  3. The operable range is recognized, and the reset process finishes.

If steering wheel does not operate after the resetting, have the system inspected by an authorized Kia dealer.
