2. Operating HomeLink®

1) Operating HomeLink®

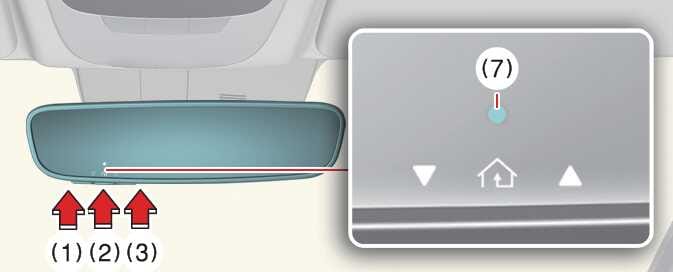

  1. Press and release the desired programmed HomeLink button (1, 2 or 3).

    OCV055066N
NOTE

The HomeLink indicator (7) should light green, solid or flashing, and your programmed device should operate.

If your device does not operate, the HomeLink programming was not successful, and you'll need to reprogram the button.

2) Two-Way Communication Display Behavior

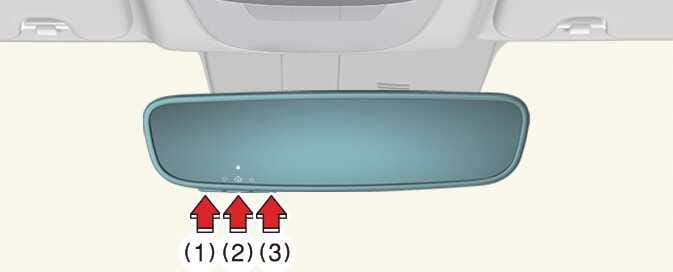

  1. Press and release one of the programmed HomeLink buttons (1, 2 or 3)

    OCV055068N

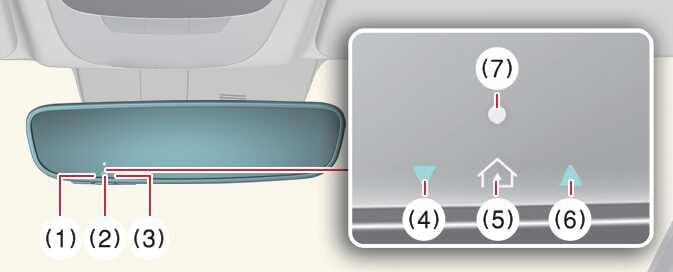

  2. The indicator (4) and (6) operates as below, if your garage door opener has Two-Way Communication functionality.

    OCV055069N

    • If the indicator (4) flashes orange, the garage door is closing.

    • The indicator (4) will turn solid green once the garage door has closed.

    • If the indicator (6) flashes orange, the garage door is opening.

    • The indicator (6) will turn solid green once the garage door has fully opened.

    • If the indicator (4) or (6) does not turn Green, it indicates that the last status of garage door was not received properly. The HomeLink mirror tries to receive the last known status of the garage door for a few seconds.

3) Recalling Garage Door Status

HomeLink mirror with Two-Way Communication provides a way to view the last stored message from the garage door opener. In order to recall the last known status of the last activated device, press the buttons “1 and 2” OR “2 and 3” simultaneously.

  • If indicator (4) appears solid green, the last activated device was closed properly.

  • If indicator (6) appears solid green, the last activated device was opened properly.
