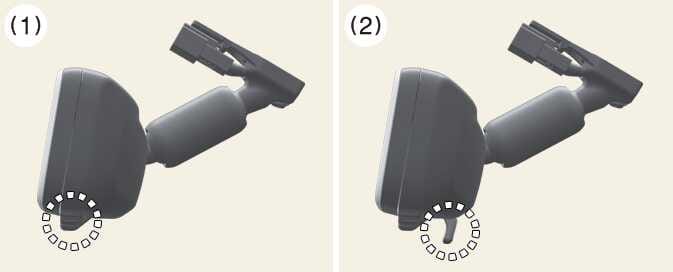

Changing the mode

The mode can be switched when the switch is in the on position.

OCV055073N_2

  1. Pull the mode select lever to completely switch to digital center mirror mode (1) (camera view mode).

    This displays an image of the area behind the vehicle. In this mode, the camera indicator is shown.

  2. Push the mode select lever to completely switch to optical inside rearview mirror mode (2).

    Turns off the display of the Digital Center Mirror allows it to be used as an optical mirror.

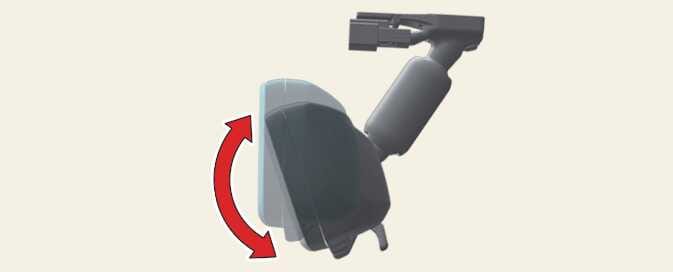

Adjusting the mirror height

OMV033428

You can adjust the height of the rearview mirror to suit your driving posture.

To adjust the angle of the rearview mirror, change to optical mirror mode and move the rearview mirror up or down.

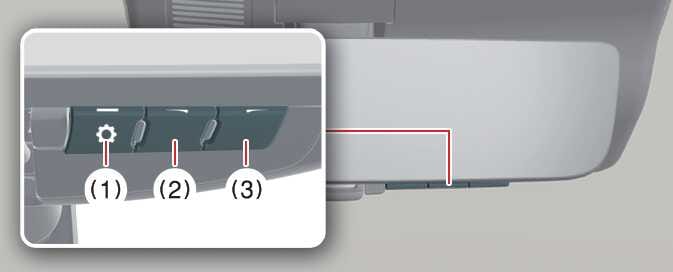

Display settings (digital mirror mode)

OCV055074N

  1. To display the icons, press the menu button (1).

    Icons

    Settings

    Select to adjust the brightness of the display.

    Select to adjust the display up or down.

  2. Press the menu button (1) repeatedly and select the item you want to adjust.

  3. Press the button (2) or button (3) to change the setting.

    The icons will disappear if you do not press the button for approximately 5 seconds or more.

Setting the brightness of the Digital Center Mirror too high might cause eye strain.

Adjust the digital center mirror to an appropriate brightness. If your eyes become tired, change it to optical mirror mode.

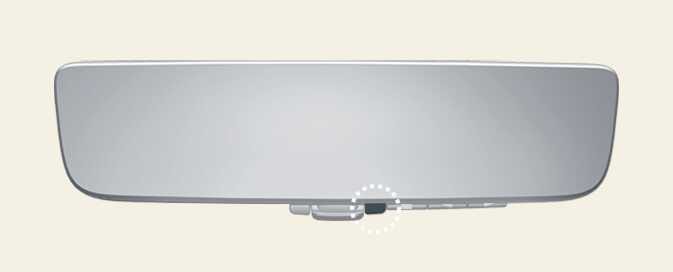

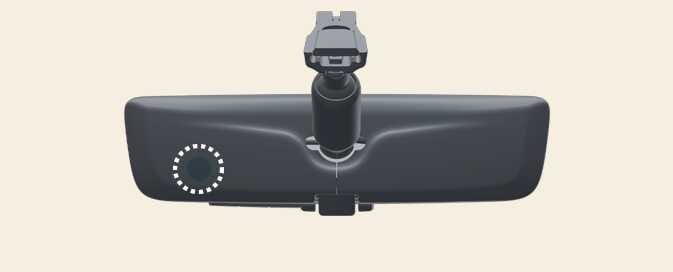

To prevent the light sensors from malfunctioning
OMV033429
OMV033448

To prevent the light sensors from malfunctioning, do not touch or cover the sensors.

Digital mirror mode operating conditions

The DCM operates when the EV button is in the POWER ON or DRIVE READY position. When the EV button is changed to off, the image will disappear.

When using the digital center mirror in digital mirror mode

  • When the liftgate is open, the digital center mirror image may not display properly. Before driving, make sure the liftgate is closed.

  • If the display is difficult to see due to reflected light, close the sunshade on the sunroof.: (if equipped)

  • Any of the following conditions may occur when driving in the dark and do not indicate that a malfunction has occurred:

    • Color of objects in the displayed image may differ from their actual color.

    • Depending on your physical condition or age, it may take longer than usual to focus on the displayed image. If you have trouble focusing, change to optical mirror mode.

    • Do not let passengers stare at the displayed image when the vehicle is being driven as it may cause motion sickness.

  • If a strong external light makes it difficult to see the Digital Center Mirror display, switch to the conventional rearview mirror mode.

When the system malfunctions

OMV033440

If the symbol shown in the illustration is displayed when using the digital center mirror in digital mirror mode, the system may be malfunctioning. The symbol will disappear in a few seconds. Change the mirror to optical mirror mode and have the vehicle inspected by an authorized Kia dealer.

CAUTION

  • To prevent the Digital Center Mirror from malfunctioning.

  • To prevent the digital center mirror from malfunctioning, do not use detergents such as thinner, benzene, or alcohol to clean the mirror. These detergents may discolor, deteriorate, or damage the mirror surface.

  • Do not remove, disassemble, or modify the mirror or the camera.

  • Do not allow an organic solvent, vehicle wax, window cleaner, or glass coating to adhere to the camera. If this happens, wipe it off as soon as possible.

  • To clean the camera lens, wipe the lens with a damp soft cloth.

  • To clean the camera lens, wipe it with a damp soft cloth. Do not rub the camera lens with force, as you may scratch it and the lens will not be able to capture a clear image.

  • Do not subject the camera to a strong impact.

  • Operating the system in the on position could discharge the battery.

  • Do not put the antenna of wireless device near the Digital Center Mirror. Electronic waves from a wireless device may distort the image in DCM.

  • Do not push buttons excessively or operate the lever aggressively.

  • Never rotate the body of Digital Center Mirror by 90° or more.

Digital Center Mirror error icons and solutions

Symptom

Likely cause

Solution

The high temp icon () appears on the display’s right side.

The digital center mirror is extremely hot. In this case, the display will gradually become dimmer. If the temperature continues to increase, the digital center mirror will turn off.

To reduce the temperature of the mirror, reduce the cabin temperature. The icon will disappear when the mirror becomes cool.

If the icon does not disappear even when the mirror is cool, have the vehicle inspected by an authorized Kia dealer.

The display icon changes to (the display error icon).

The system is malfunctioning.

Change to optical mirror mode and have the vehicle inspected by an authorized Kia dealer.
