Charging types
|
Category |
AC Charge |
DC Charge |
Portable Charge |
|---|---|---|---|
|

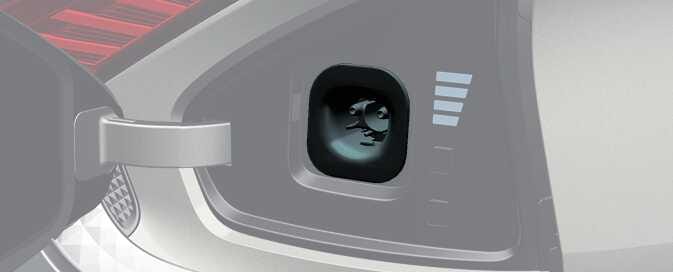

Charging Inlet (Vehicle) |
 OCVQ014085N |
OCVQ014085N |
OCVQ014085N |
|

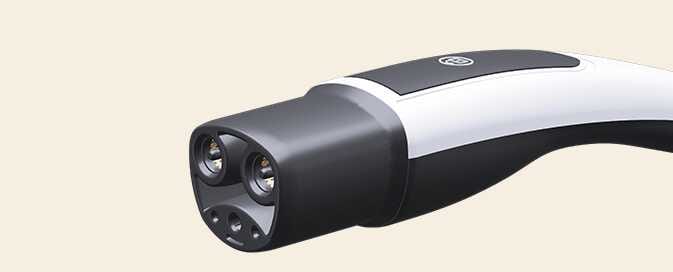

Charging Connector |
 OMVAQ014002 |
OMVAQ014002 |
OMVAQ014002 |
|
How to Charge |
Use the AC charger installed at home or at a public charging station |
Use the DC charger at a public charging station |
Use household current |
Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the battery might vary.
Actual charger appearance and charging method may vary in accordance with the charger manufacturer.
For your safety, your kia may stop charging if the external charger is outdated or defective. Try charging the vehicle using a different charger that works properly.
When you charge the battery, allow up to 3 extra minutes to check and diagnose the condition of the battery.
The portable charging cable is sold separately.
Type 3R enclosure satisfies the requirements of UL 50E standard when the charging connector is connected to the vehicle side charging inlet. An additional Type 3R enclosure should be provided in the end installation of the vehicle side charging inlet.
What is type 3R?: Performance requirement for enclosures intended for outdoor use that provides a degree of protection against falling dirt, rain, sleet, and/or snow.
-
Risk of electric shock. Do not disconnect under load.
-
Suitable for use on a circuit capable of delivering not more than 5,000 rms symmetrical Amperes, 120 V AC Maximum.
-
Suitable for use on a circuit capable of delivering not more than 30,000 rms symmetrical Amperes, 1,000 V DC Maximum.
