Automatic heating and air conditioning (A/C) operation

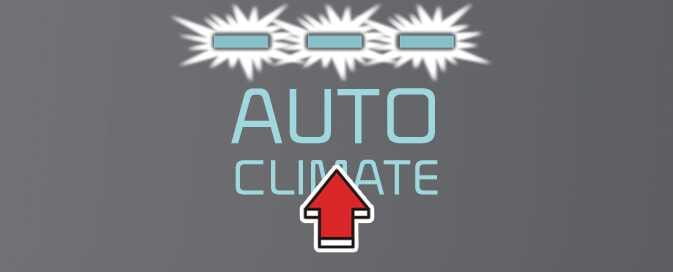

  1. Press the AUTO button.

    The modes, fan speeds, air intake, and air-conditioning are controlled automatically by setting the temperature.

    OCV041303

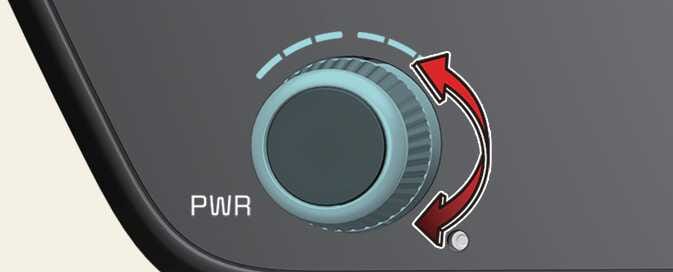

  2. Turn the temperature control switch to the desired temperature.

    OCV041305L

  • To turn the automatic operation off, select any button or switch of the following:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.)

    • Air intake control button

    • Fan speed control switch

      The selected function is controlled manually, while other functions operate automatically.

  • For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 72 °F (22 °C).

Level

Indicator

LCD Display

Air flow

High
OCV041529L
OCV041532L

2–8

Medium
OCV041530L
OCV041533L

1–6

Low
OCV041531L
OCV041534L

1–4
NOTE

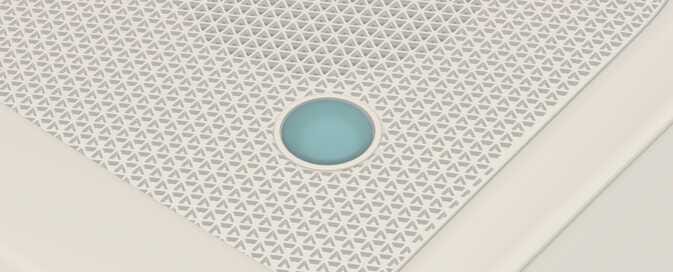

Do not place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

OCV041617N
