Regenerative braking (Paddle shifter)

The paddle shifter is used to adjust the regenerative braking level from 0 to 3 during decelerating or braking.

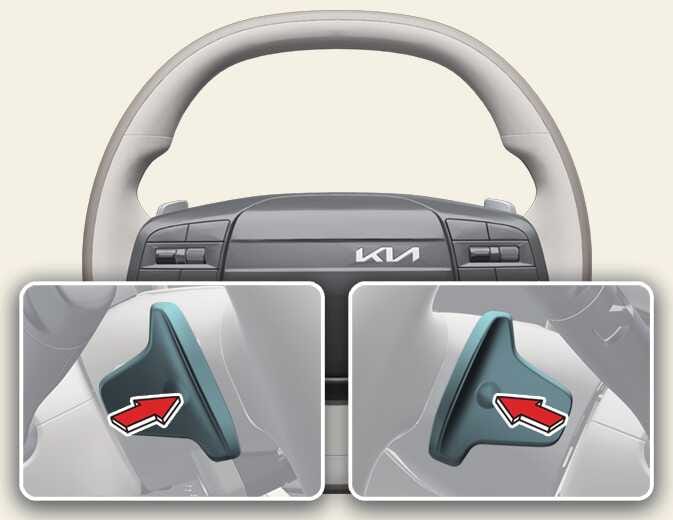

Type A
OCV064013_2

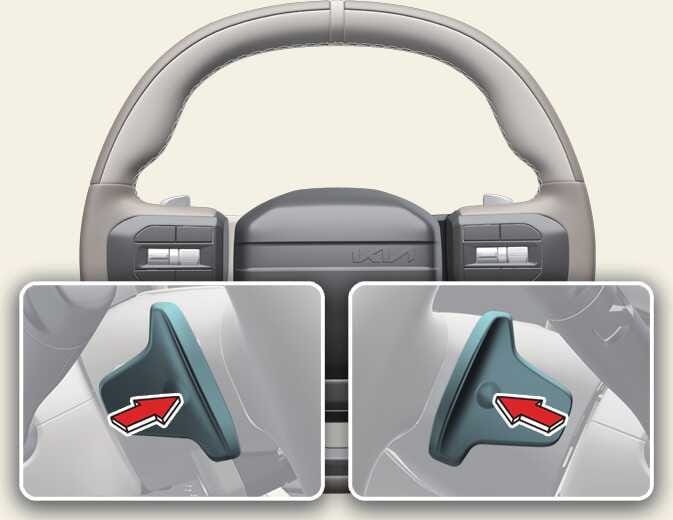

Figure 1. Type B (GT-LIne)
OCVGT095001N_2

  • Left side ( ): Increases regenerative braking and deceleration.

  • Right side ( ): Decreases regenerative braking and deceleration.

Pull and hold the left side paddle shifter for more than 0.5 seconds and One Pedal Driving function is operated, increasing the regenerative braking. In this case, stopping the vehicle is possible by pulling the paddle shifter.

For more information, refer to One pedal driving.

Pull and hold the right side paddle shifter for over 0.5 second to turn on and off the automatic change of the regenerative braking.

For more information, refer to Smart regeneration system.

NOTE

The paddle shifter does not operate when:

  • The ( ) and ( ) paddle shifters are pulled at the same time.

  • The vehicle is decelerating by depressing the brake pedal.

  • Smart Cruise Control is activated.

  • Regenerative braking system is activated when the vehicle state of charge is 100%.

The paddle shifter function is limited when:

  • SNOW mode is activated from DRIVE MODE.

  • Trailer is attached to the vehicle.

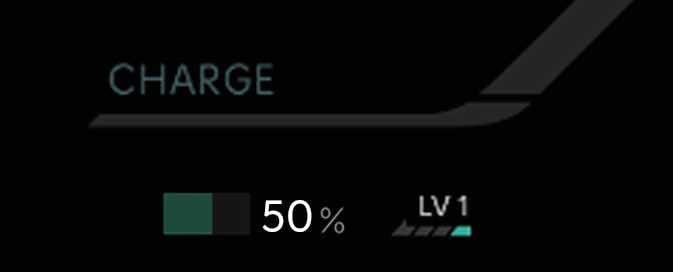

The selected regenerative braking level is displayed on the instrument cluster.

OCV044004

Initial setting of the regenerative braking level and adjustable range vary according to the selected Drive mode.

Drive mode

Adjustable range

SNOW

0–1

ECO

0–3

NORMAL

0–3

SPORT

0–3

MY DRIVE

0–3

For more information, refer to Drive mode integrated control system.
