Dynamometer testing

AWD vehicle must be tested on a special four wheel chassis dynamometer.

If you must use a 2WD roll tester, perform the following procedure.

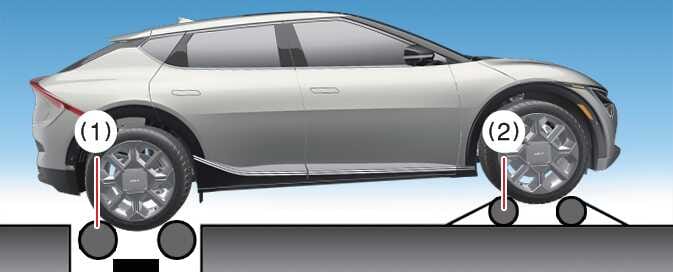

OCV095001N

  1. Roll tester (Speedometer)

  2. Temporary free roller

Charging door operation

  1. Check the recommended tire pressure for your vehicle.

  2. Place the rear wheels on the roll tester for a speedometer test, as shown in the illustration.

  3. Release the parking brake.

  4. Place the front wheels on the temporary free roller, as shown in the illustration.

WARNING

  • Do not use tire and wheel with different size and type from the one originally installed on your vehicle. It can affect the safety and performance of your vehicle, which could lead to steering failure or rollover causing serious injury.

  • Never start or run the vehicle while AWD vehicle is raised on a jack. The vehicle can slip or roll off of a jack causing serious injury or death to you or those nearby.

  • Keep away from the front of the vehicle while the vehicle is in gear on the dynamometer. The vehicle can jump forward and cause serious injury or death.
