Emergency Braking

OCV105007N
OCV105056N
OCV054119L

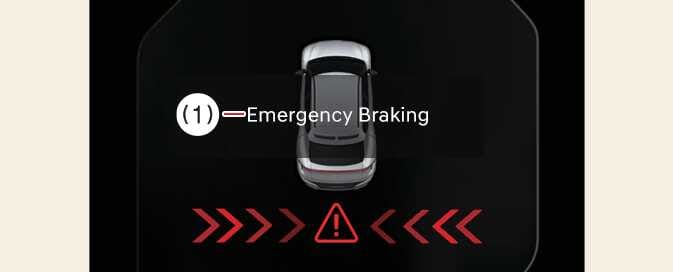

A: Emergency Braking

Collision warning will alert the driver with a warning light on the outside rear view mirror, a warning message and an audible warning.

Collision warning also appears on the infotainment system screen.

Emergency Braking assists you to help prevent a collision with an approaching vehicle from the left or right.

Emergency Braking operates when all of the following conditions are satisfied:

  • The gear is shifted to R (Reverse) while your driving speed is below 6 mph (8 km/h)

  • The approaching vehicle is approximately 5 ft (1.5 m) from the left or right side of your vehicle.

  • The speed of the vehicle approaching from the left or right is above 3 mph (5 km/h).

WARNING

Brake control ends under the following conditions:

  • The approaching vehicle is out of the detecting range.

  • The approaching vehicle passes behind your vehicle.

  • The approaching vehicle does not drive toward your vehicle.

  • The approaching vehicle slows down.

  • The driver depresses the brake pedal with sufficient power
