Wheel and tire installation

When removing and installing wheels and tires, use the tool for removing the hub cap inside the tool case to remove the hub cap.

The remover insertion hole is located at the top or edge of the hub cap.

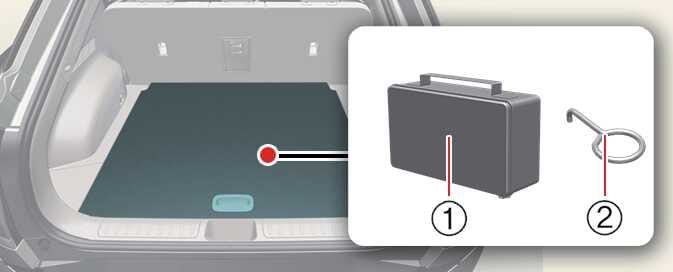

Dedicated remover storage position

OCV064033N

  1. TMK case

  2. Dedicated removal tool

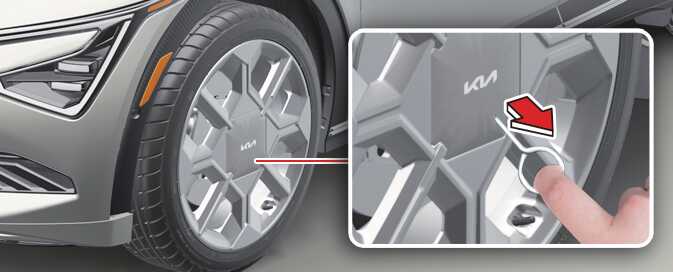

How to replace the hub cap using a dedicated removal tool

OCV125023N

  1. Make sure to place the hub cap into the designated position when replacing the hub cap.

  2. The designated position of the hub cap depends on the shape of the wheel.

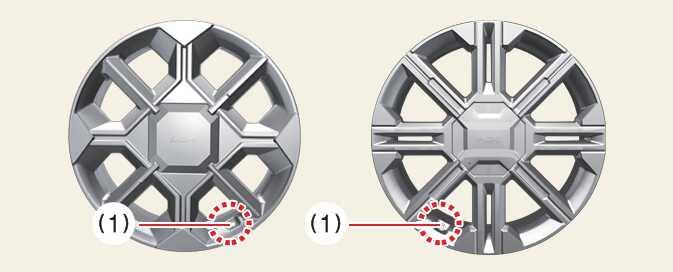

  3. Align the valve stem (1) hole in the hub cap with the emblem of the hub cap before installing.

OCV125024N
  1. Valve stem
NOTE
OCV125023N

Take out the remover tool in the Tire Mobility Kit. Insert the tool to the hole and pull out the wheel cover.
