Light position (Front)

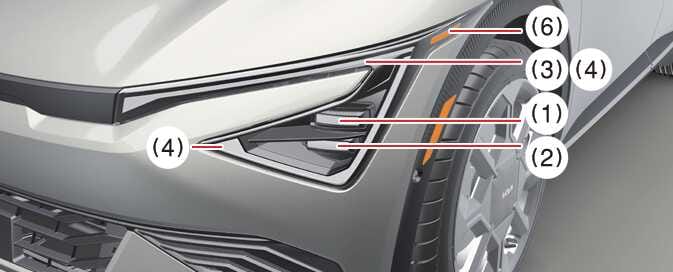

Figure 1. Type A
OCV125028N(1)

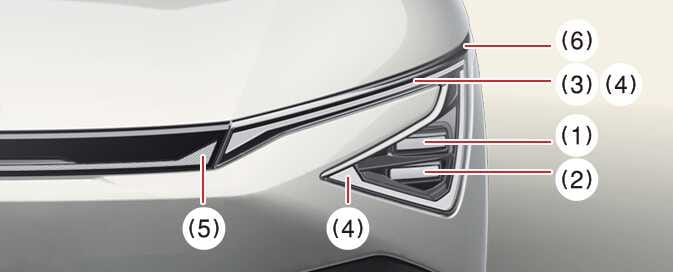

Figure 2. Headlamp – Type B
OCV125030N

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Front turn signal lamp (LED type)

  4. Day time running lamp/Position lamp (LED type)

  5. Front center lamp (if equipped)

  6. Front side marker

If the LED lamp does not operate, have the system inspected by an authorized Kia dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps must be replaced with the unit.

A skilled technician should check or repair the LED lamp, or it may damage related parts of the vehicle.
