Aiming point
|
Type A |
|
 OOV075026 |

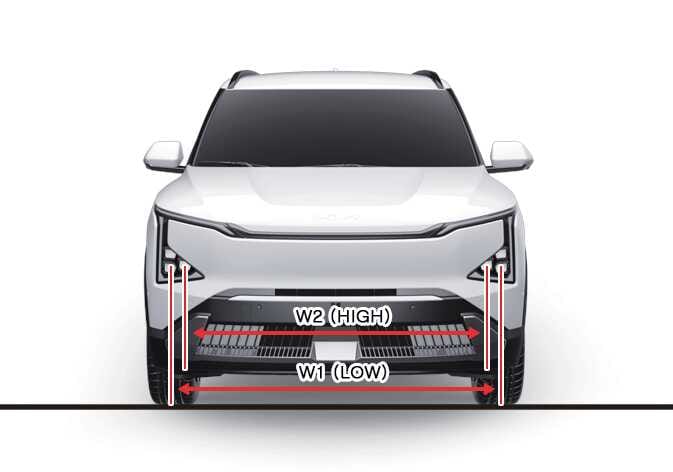

 OOV075028 |
|
Type B |
|

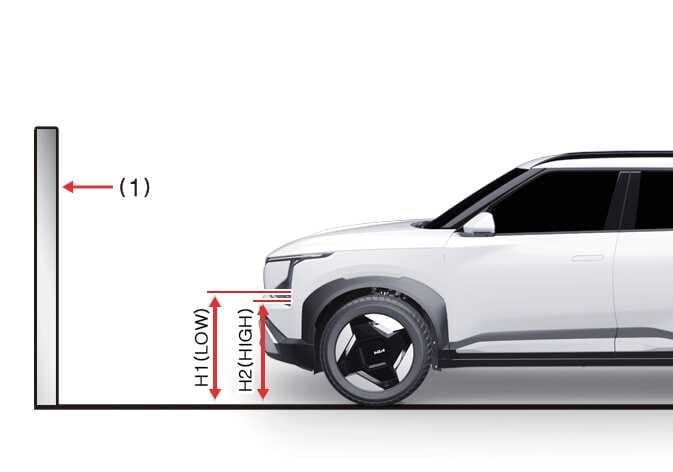

 OOV075027 |

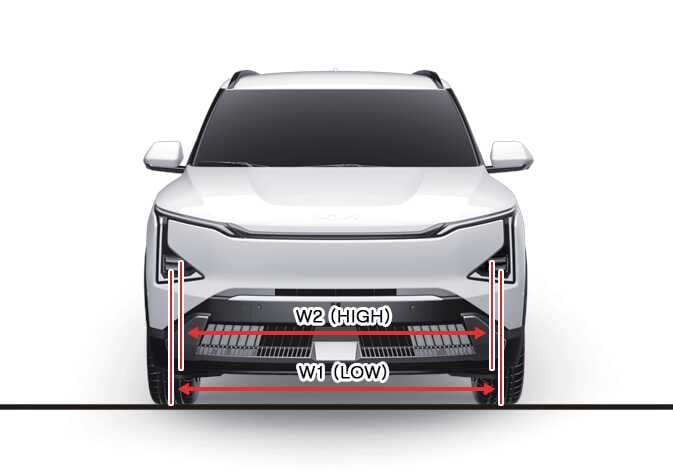

 OOV075029 |
-
Screen
|
Vehicle condition |
Head lamp (LED type) |
||||
|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
||||
|
H1 (LOW) |
H2 (HIGH) |
W1 (LOW) |
W2 (HIGH) |
||
|
Head lamp – Type A |
Without driver [mm (in)] |
750 (29.5) |
735 (28.9) |
1,559 (61.4) |
1,411 (55.6) |
|
With driver [mm (in)] |
740 (29.1) |
725 (28.5) |
|||
|
Head lamp – Type B |
Without driver [mm (in)] |
752 (29.6) |
715 (28.1) |
1,520 (59.8) |
1,518 (59.8) |
|
With driver [mm (in)] |
742 (29.2) |
705 (27.8) |
|||
