Head lamp low beam (LHD Vehicle)

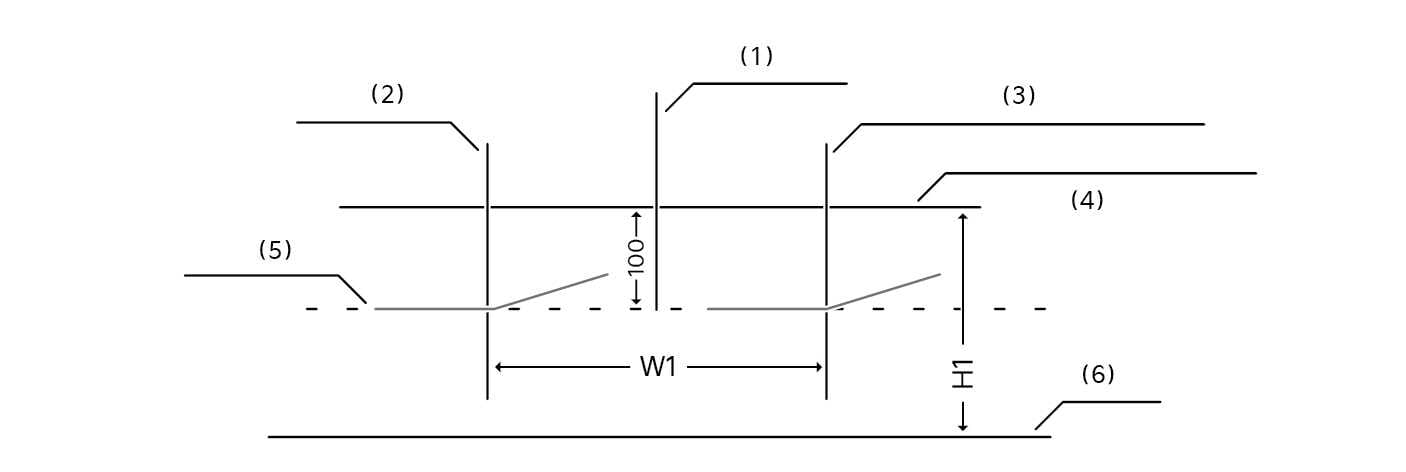

Figure 1. Based on 10 m screen
N_CT25G005_E

  1. Vehicle axis

  2. Vehicle line of the left head lamp bulb centre

  3. Vehicle line of the right head lamp bulb centre

  4. Horizontal line of the head lamp bulb centre

  5. Cut-off line

  6. Ground

Operation

  • Turn the low beam on without driver aboard.

  • The cut-off line should be projected in the cut-off line shown in the picture.

  • When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  • Disengage the parking brake and put the gear in N (Neutral), in addition, if headlamp levelling device is equipped, adjust the headlamp levelling device switch to '0'.
