Replacing lights (LED type)

If the LED lamp is not functioning, please have your vehicle serviced by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner.. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, have your vehicle serviced by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, please have your vehicle inspected by an authorised Kia dealer.

: if equipped
Figure 1. Type A
OOV075019L
Figure 2. Type B
OOV075020L

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Front turn signal lamp (LED type)

  4. Day time running lamp (LED type)

  5. Position lamp (LED type)

  6. Centre Position lamp (LED type)*

Replacing side repeater lamp (LED type)

If the side repeater lamp is not functioning, please have your vehicle inspected by an authorised Kia dealer.

OOV075023

  1. Side repeater lamp (LED type)

Replacing rear lights (LED type)

If the rear lights are not functioning, please have your vehicle inspected by an authorised Kia dealer.

: if equipped
Figure 3. Type A
OOV075021L
Figure 4. Type B
OOVGT075001
Figure 5. Type C (GT)
OOVGT076001L
Figure 6. License plate lamp
OOV075022

  1. Stop lamp (LED type)

  2. Rear position lamp (LED type)

  3. Rear turn signal lamp (LED type)

  4. High mounted stop lamp (LED type)

  5. Backup lamp (LED type)

  6. License plate lamp (LED type)

  7. Rear fog lamp (LED type) *

Replacing interior lights (LED type)

If the interior lights are not functioning, please have your vehicle inspected by an authorised Kia dealer.

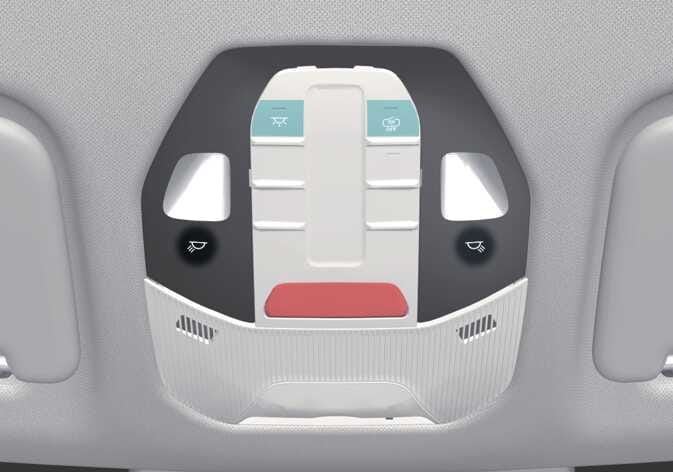

Figure 7. Map lamp
OOV035441
Figure 8. Room lamp (if equipped)
OOV035007
Figure 9. Personal lamp (if equipped)
OOV035057
Figure 10. Luggage room lamp
OOV035058
Figure 11. Vanity mirror lamp
OOV035006R
Figure 12. Glove box lamp
OOV035008R
Figure 13. Ambient lights
OOV035059R

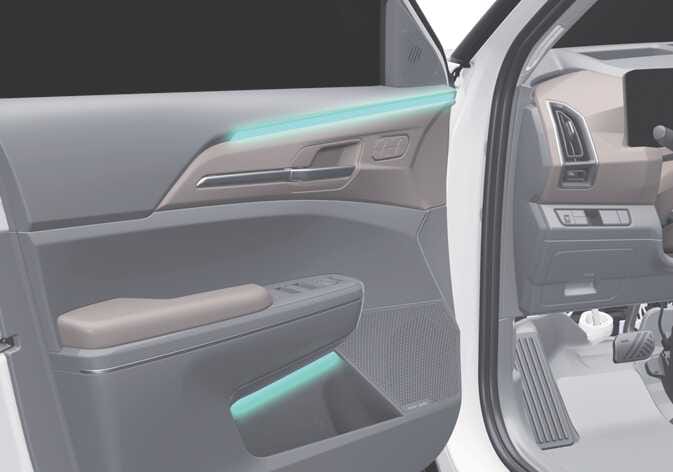

Figure 14. Ambient lights
OOV035437
