Tachometer/Power gauge

Tachometer

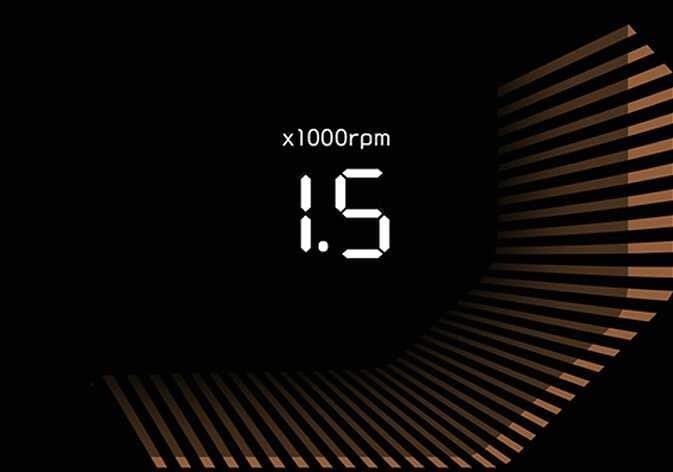

Figure 1. Type A
OMQ4A035105

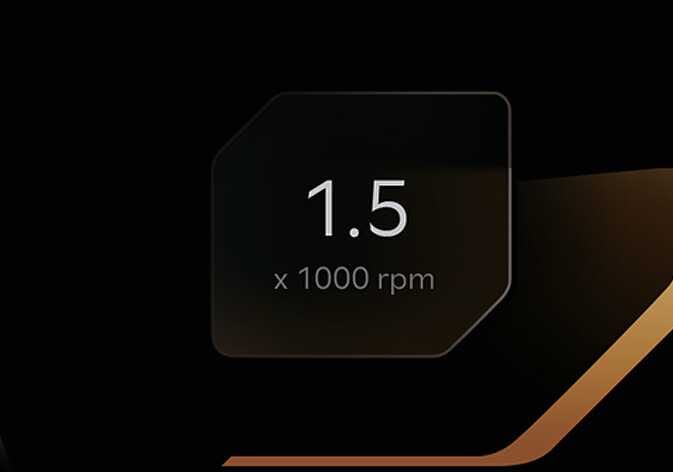

Figure 2. Type B
N_TK27_B00_001

The tachometer displays the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging or over revving the engine.

NOTE

Do not operate the engine within the tachometer’s RED ZONE. This may cause severe engine damage.

Power gauge

Figure 3. Type A
N_SP327_B00_005_E
Figure 4. Type B
N_SP327_B00_006_E

The hybrid system gauge indicates whether the current driving condition is fuel efficient or not.

  • CHARGE:

    Shows that the energy made by the vehicle is being converted to electrical energy. (Regenerated energy)

  • ECO:

    Shows that the vehicle is being driven in an Eco-friendly manner.

  • POWER:

    Shows that the vehicle is exceeding the Eco-friendly range.

NOTE

According to the hybrid system gauge area, the “EV” indicator comes on or off.

  • “EV” indicator ON: Vehicle is driven using the electric motor or the gasoline engine is stopped.

  • “EV” indicator OFF: Vehicle is driven using the gasoline engine.
